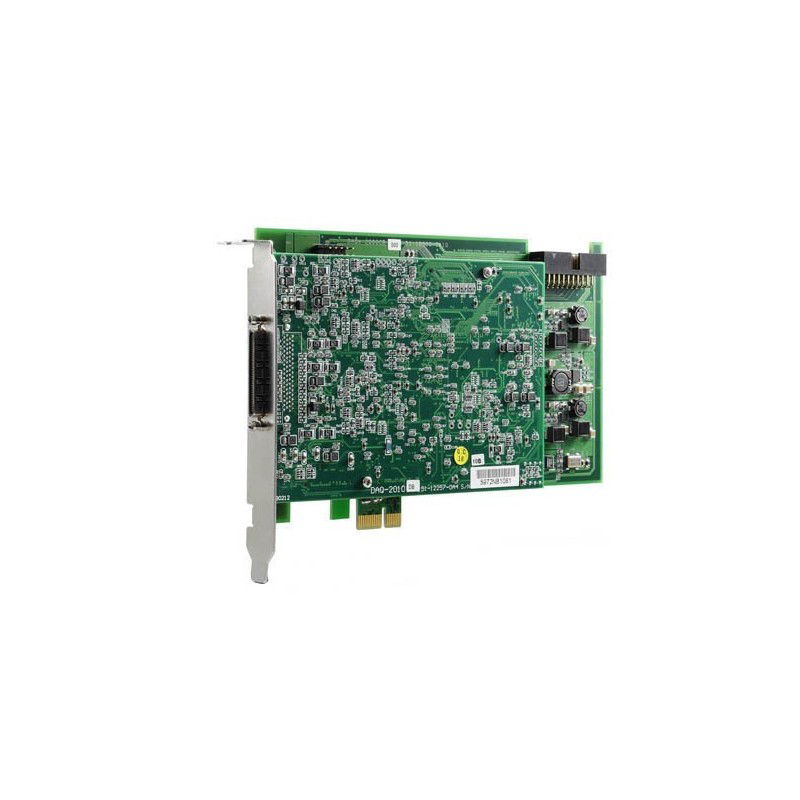

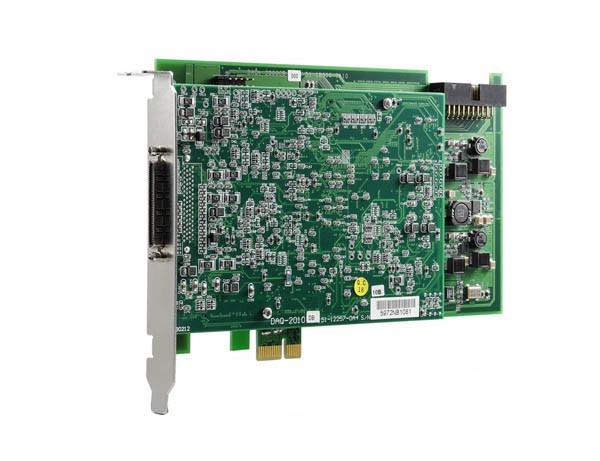

Adlink DAQe-2010. 4 kanals 14 bit A/D dataopsamling, 2MHz / kanal, PCIE

4 channels14 bit PCI Express x1

ADQ4S14PCI-E
21,945.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
This 4-channel A / D converter uses an inverter for each input channel, so the conversion can take place exactly simultaneously on all channels, which is often a requirement when measuring signals with high bandwidthIn addition, use of the A / D converter's full speedThe conversion of multiple A / D card installed in the same PC can be synchronizedDMA transfers are supported, as A / D converter full speed can be utilized. The differentially coupled inputs ensures the best possible noise suppression.
Data
8 KB måledata
Digital I/O
24 programmerbare TTL ind/udgange
Indgang
4 differentielt koblede spændingsindgange med programmerbar forstærkning
Konverterings- hastighed
2 MHz / kanal
Måleområde
±10 V; ±5 V; ±2,5 V ±1,25 V; 0-10 V; 0-5 V; 0-1,25 V
Nøjagtighed
±0,03 % af FSR
Opløsning
14 bit
Stik
68 polet VHDCI hunstik
Tæller
2 stk. 16 bit TTL tællere
