24-ports 10 100Mbit PoE mid-span injector
24-ports PoE strømforsyning 30 W, 10/100 Mbit
Passive PoE Injector with 12 / 19 / 24 VDC 0.7A output

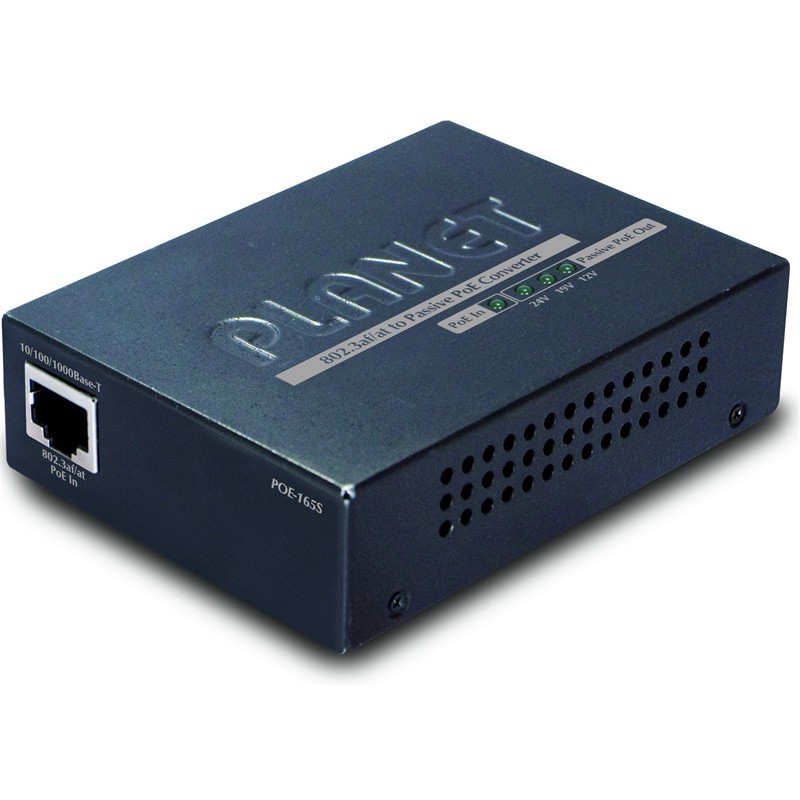

From Active to Passive PoE converter
PoE input port: IEEE 802.3af/at RJ-45 STP / PD. Supplied from an active PoE switch
Passive PoE output port: non-802.3af/at RJ-45 STP / PSE. For equipment that is NOT for active PoE.
Active PoE to passive PoE converter.
Supply passive PoE equipment via PoE. 12, 19 or 24 volts.
The ETH-POE50PAS is a PoE to "passive PoE" converter. Thus, devices that only support "passive PoE" can be supplied via a regular PoE switch or injector.
The ETH-POE50PAS can deliver up to 0.7A at a voltage of 12, 19 or 24 VDC. It requires that it is connected to a PoE switch or injector that supports the PoE standard IEEE802.3at.
24-ports PoE strømforsyning 30 W, 10/100 Mbit
Built 100-240V AC power supply
POC - Power Over Cable power
Meets NOT PoE specifications.
Constant voltage out.
2 x RJ45 ports - data input and data + voltage output
output voltage: DC 24V 1A
DC output: + (4.5) - (7.8)
Data: 1,2,3,6
Dimensions: 82 x 44 x 55 mm (LxWxH )
Weight: 104g
PoE injector
2 x 10/100 / 1000Mbit RJ45 (PoE)
UTP / TCP Cat.5e or over
Rugged Aluminum, IP30 protection
Maximum POE 95watts at 56VDC input
Dust temperature: -40 ° C ~ 75 ° C
humidity: 5% to 95% (Non-condensing)
Dimensions: 103.5 x 32 x 81.5 mm & nbsp;
Metal housing with IP30 density
DIN rail and Wall Mount
Quick and Easy PoE tester
IEEE 802.3af / at
UTP Cat 5 or above
100 meters max.
Dimensions: 23 x 70.1 x 22 mm | Operating temperature: -10 ~ 60 C
weight: 20g
