Ethernet over 2-thread connection with VDSL router with WiFi - Break 100 meters border. Up to 100mbit

Rest storage

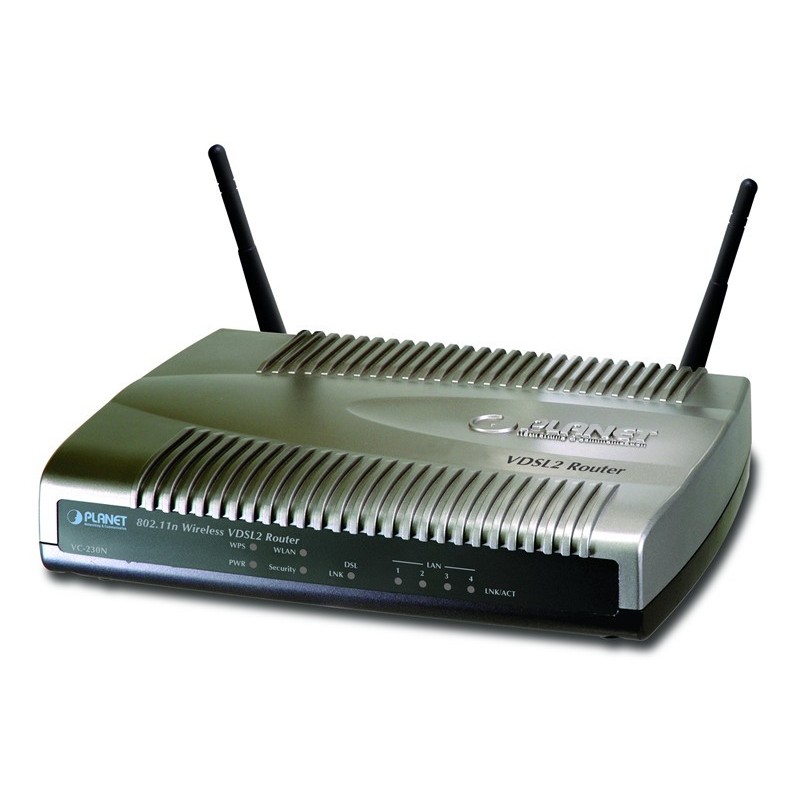

Vdsl2 router with 4 x RJ45 and WiFi
Network connection up to 1.4 km above 2-wire telephone cables
point to point federal
2 pcs. Eth-VDSL2ROUTER for a connection

ETH-VDSL2ROUTER
1,399.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

VDSL2 router med WiFi og 4 x Ethernet.

Internet-adgang op til 1,4 km væk via telefonkabler.

Bryd 100 meter grænsen ved at genbruge eksisterende parsnoede telefonledninger f.eks. mellem to bygninger adskilt af vej, eller mellem stalden og beboelsen til f.eks. videoovervågning.
ETH-VDSL2ROUTER understøtter 2 profiler - 17a og 30a. 17a er det mest ideelle til lange kabellængder, 600 meter og derover, hvor 30a er bedre til kabeltræk under 600 meter.
ETH-VDSL2ROUTER bruger VDSL-porten som WAN-port og de 4 RJ45-porte som switch.

Hastighed v/kabellængde:

profil 17a:
300 m   -> 99/70 Mbit/s  400 m   -> 99/60 Mbit/s  600 m   -> 90/45 Mbit/s  800 m   -> 50/28 Mbit/s  1000 m -> 40/12 Mbit/s  1200 m -> 20/7   Mbit/s  1400 m -> 20/4   Mbit/s

profil 30a:
300 m -> 100/100 Mbit/s  400 m -> 90/90 Mbit/s  600 m -> 69/55 Mbit/s  800 m -> 48/9 Mbit/s

Dimensioner
44 mm (H) (1U)
Driftstemperatur
0 – 50 °C ved en luftfugtighed på 5 – 90 % (ikke-kondenserende)
LED
Lysdioder angiver VDSL link, Ethernet link, blæseralarmer og strøm
Porte
4 x 10/100 RJ45 porte
Strømforsyning
12 VDC 1 A strømforsyning medfølger
