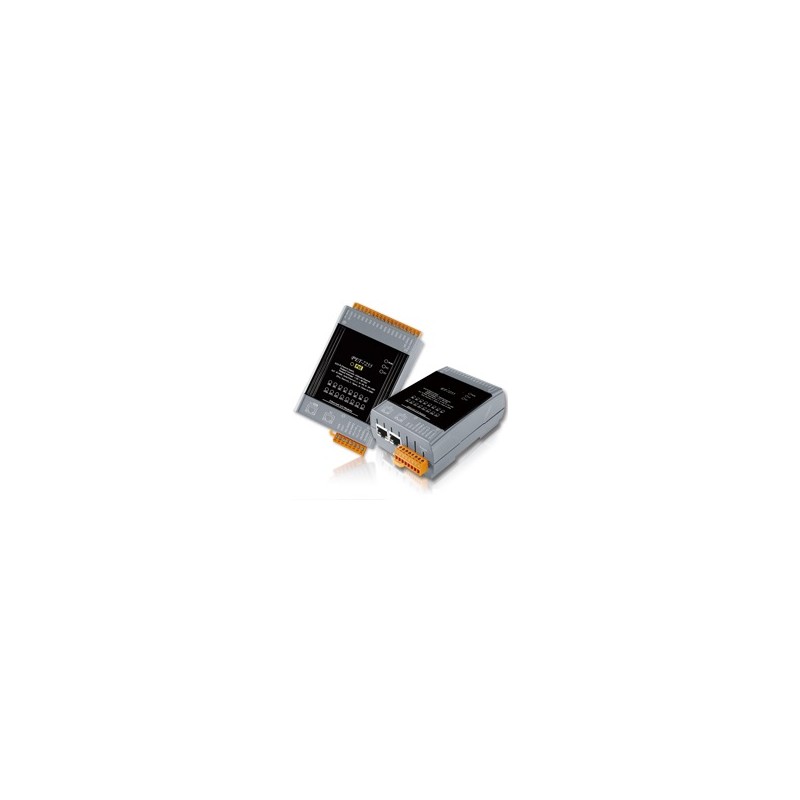

Modbus / TCP I / O module with built-in Web server
Modbus / TCP and Modbus / UDP protocols
2 x RJ45 Ethernet switch to Daisy-Chain topology
Dual Watchdog
Operating temperature range: - 25 to + 75 ° C
I / O Pair connection - Ingang refles in the second's exit
8 x Digital input: Wet (Apply Volt), Dry (Contact) - Digital Input: 0 - + 50CDC or Open / GND
8 x Digital Outout, Open Collector 0 - 40VDC / 650MA
Dimensions: 76 mm x 120 mm x 38 mm
Supply voltage: 12 - 48vdc, 4 watt
your bracket Wall mounting
ETH-MOD8I8O provides 8 x Dry / Wet digital input channels and 8 x digital output channels of source type. It has optical isolation to 2500 VDC with transient over-voltage protection, but does not provide channel-to-channel isolation. Each input channel can be used as a 32-bit counter, and each output channel can drive 650 mA load. Ignition value and ensure value for the digital output channel is programmable. It can be safely used in applications where hazardous voltages.
These I / O devices use MODBUS / TCP protocol for reading and control over Ethernet with digital signals.
digital signal at a module's input can be reflected / transmitted on an output of a second module connected to the network. Several modules can retrieve status from the same inputs on a single module, so it is possible to get a signal transmitted to multiple locations, for example. a building.
With the built-in Web server may be using. Pictures made simple control and monitoring websites without knowledge of HTML or Java programming. There are several phases of the program. When ETH-MODxx supports MODBUS / TCP, they can also be used with software automation systems based on this protocol.
2 stk. analog indgange samt 1 analog og 2 digital indgange
Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair connection - the input is mirrored in the other's output
8 x Digital input (count): 0 - + 50VDC (500Hz)
8 x Digital Outputs: Open Collector 0 - + 40VDC / 650mA per output
2 x RJ45 Ethernet - daisy chain
Supply voltage: 12 - 48VDC / 4Watt
8 x analog inputs - Sample Rate 25 times per second
8 x input - Single ended: ± 1.28V, ± 2.56V, ± 5,12V, ± 10,24V
input 1 - 4 Can be 4-20mA
Web server for configuration and remote monitoring
Permissions: Administrator, Manager, User
Tasks
50 schedule planned
50 Conditional
20 overroubed
Email Alarms by Defined Terms
Supports Encrypted Email Servers, such as Gmail
RTC with NTP server synchronization
No software Required
Basic Script Support for Advanced Flexibility
Logging - Graph Presentation
static or DHCP IP Address Configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Supply voltage: PoE or 9 - 28VDC
Network-based module with 16 digital inputs
built-in Web server
Web HMI
Support for both Modbus TCP and Modbus UDP protocols
Double watchdog
Wide operating temperature range: -25 ~ + 75 ° C
Built-in I / O
Digital input and counter: 16 channels
