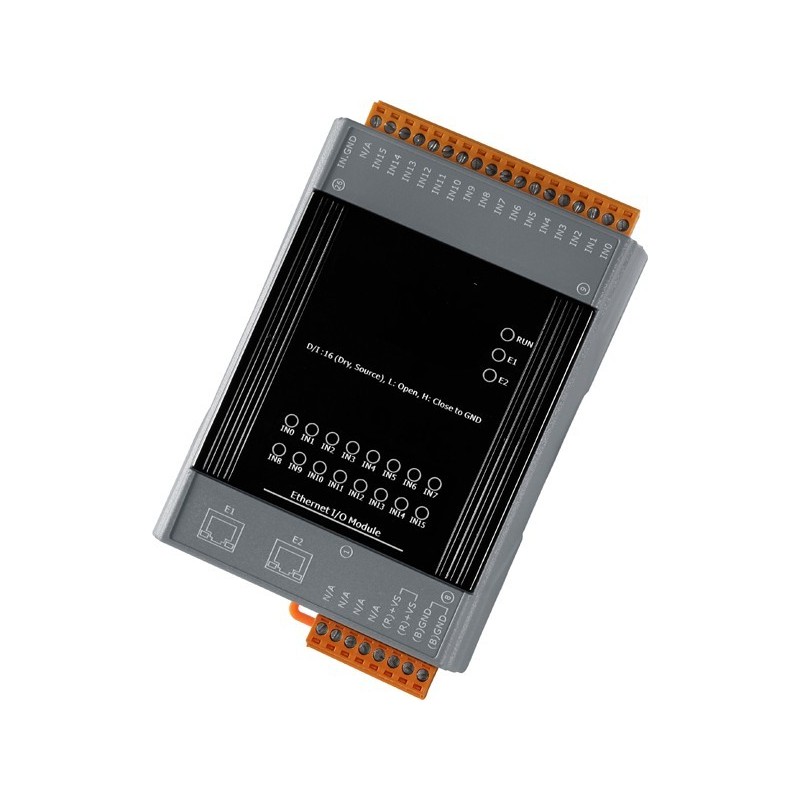

Web-based I / O module with 16 digital inputs with DRY contact and 2 port Ethernet switch

16 digital inputs with isolation
Inputs with common ground GND)
Built-in 2-port Ethernet switch.
Multiple units sit on the same network cable - daisy chain

ETHI16-2I
2,288.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Netværk10/100 Mbit m/RJ45-stikDigitale indgange16 isolerede kanaler med fælles stel. Logisk 1: Svævende Logisk 0: Indgang lagt til stelMonteringDIN skinneForsyning10 - 30 VDC, 5 W via klemrækkeProtokollerModbus/TCP, TCP/IP og UDP - med I/O Pair Connection (I/O spejling over netværket)TællerIndgange kan virke som 32 bit tæller, maks. frekvens 500 HzIsolation3750 VDCSwitchIndbygget 2 port Ethernet switchSoftwareLeveres med konfigureringssoftware til Windows 2000, XP, Vista, WIN7/8/10

Forsyning
10 - 30 VDC, 5 W via klemrække
Indgang
16 isolerede kanaler med fælles stel. Logisk 1: Svævende Logisk 0: Indgang lagt til stel
Isolation
3750 VDC
Netværk
10/100 Mbit m/RJ45-stik
Protokol
Modbus/TCP, TCP/IP og UDP
Switch
Indbygget 2 port Ethernet switch
Tæller
Indgange kan virke som 32 bit tæller, maks. frekvens 500 Hz
