8-channel analogue inputs and 4 channel Relay Output Module M-7003-G
RS-485 Interface
DCON Modbus/RTU Protocol
8 x Analog Inputs
4 x Relay Outputs
DIN rail / wall mount
Temperature: -25 to +75°C

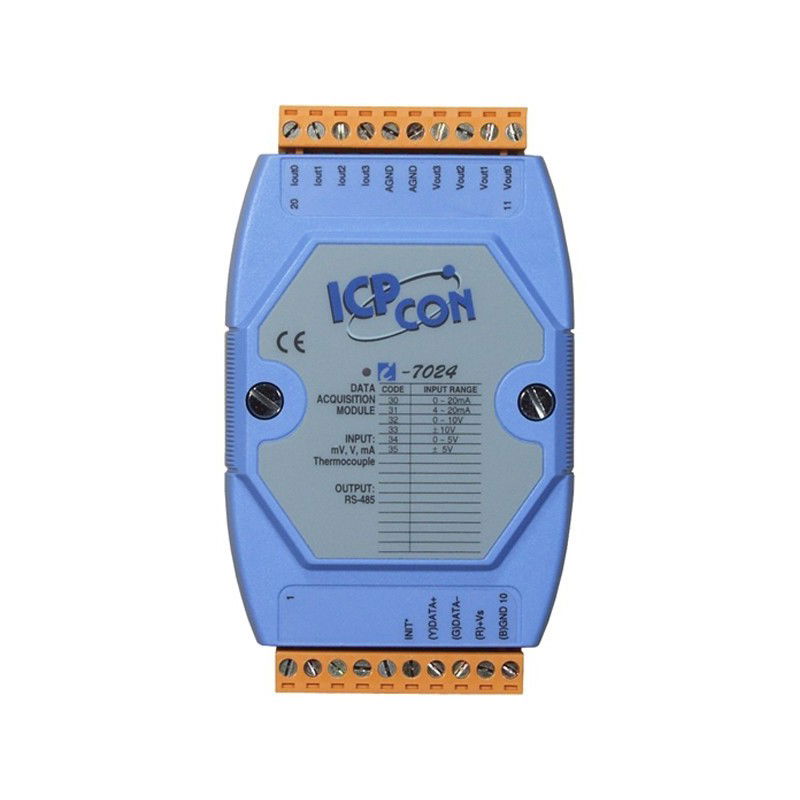

RS485 module with 4 analog outputs
0-20mA or 0 - +/- 10V
D / A response time: 10ms
Resolution: 14bit
Supply voltage: 10 - 30vdc
Strømudgange skal forsynes med ekstern spænding
RS-485 Interface
DCON Modbus/RTU Protocol
8 x Analog Inputs
4 x Relay Outputs
DIN rail / wall mount
Temperature: -25 to +75°C
Module for PT100 or PT1000 sensor with 4-, 3- or 2-wire
for nickel temperature sensor (Ni RTD)
16 bit resolution
15 Measurements per second (Total)
Supply voltage: 10 - 30vdc / 1 Watt
Master RS485 must establish bias voltage
Dim: 123 x 72 x 35 mm
RS485 module with volt / mA output. Digital input
4 x analog output - 0 - +/- 10V and 0-20mA
Resolution: 14bit
5 x Digital input - Active high on contact for frame
RS485 Bus - Module is Slave
Format: (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Baud Rate: 1200 ~ 115200 bps
Supply: 10 ~ 30 VDC
RS485 Module for load cells
2 analog inputs for 4 wire load cell,
1 excitation Exit
1 Digital input
4 digital outputs
Supply: 10 - 30VDC
