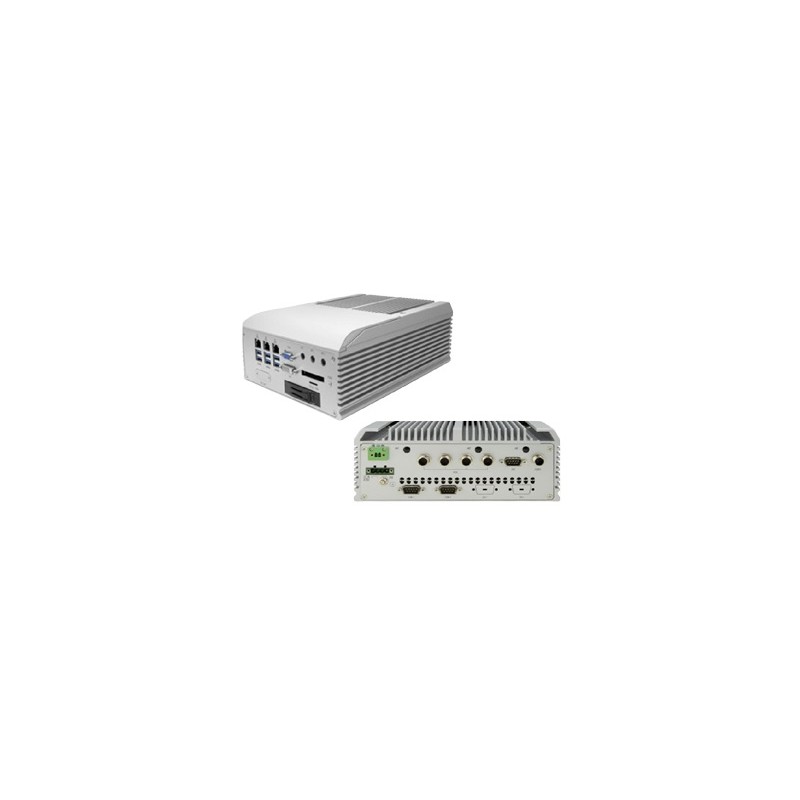

In Vehicle godkendt til brug i den aotomotive branche, med Gen. 6 CPU i3 /i5/ i7 eller xeon processor

 "preliminary specifications"

Blæserløs Design
2 * RS-232/422/485 og 8-bit isoleret DIO
4 x 802.3af Gigabit PoE-porte med M12-stik
RTC batteri servicevinduer Support
3 x mPCIe slots til valgfri WiFi / BT / 3G / 4G / GPS Moduler
1 x M.2 (NGFF) B-Key (2242) stik til valgfri LTE Modul
3 x SIM-kort stikkontakter
2 x reserveret DB9 stik (CN1 / 2) for valgfri serielle porte eller CAN BUSWide
ange Jævnstrømsindgang (9 ~ 36V)
Bredt temperaturområde fra -40 ° C til + 85 ° C

IPC-AUTO-F
Ring +45 56 66 20 20 for pris
Antal
På vej ind

  • Download PDF
  • file_download Downloads
  • live_help Stil et spørgsmål

Vi tilbyder et bredt udvalg af Industrielle og In-Veivhel PCér. Dette er en af vores nyere modeller bsseret på 6.gen Intel processor.
Kan tilbydes kundespecificeret, så den levere med CPU, RAM SS og OS installeret klar til brug.

Kontakt vores salgsafdeling for yderlig information.

CPU
Intel® Xeon® E3/6th &7th generation Core™i7/i5/i3, processor in LGA1151 socket
Antenne
6 x SMA-female connectors’ holes for external antennas
Arbejdstemperatur
-40 ~ 70°C, ambient w/ air flow, EN50155 ClassTX, w/ 35W TDP CPU (CPU throttling may be happened while it run full loaded, CPU power can be configured under BIOS to achieved higher operating temperature)
Audio
Mic-in/Line-out
Approval
CE/FCC Class A, E13 Mark
Chipset
Chipset Intel® C236
Chok/Vibration
IEC61373 Category1, Class B
Digital I/O
8-bit digital I/O, 4-in/4-out w/ 1*DB-9 male connector, 2KV isolated protection, rear side
Dimensioner
225(W) x 267 (D) x 90 (H) mm
Ethernet
1 x Intel® i219LM PCIe controller w/ iAMT 11.0 (except i3) 2 x Intel® WGI211AT GbE controllers 4 x Intel® WGI211IT GbE controllers for PoE
Grafik
Integrated Intel® HD Graphics
Grafikudgang
1 x DB-15 female connector for Analog RGB, Max. resolution : 1920 x 1080 @ 60Hz 1 x DVI-D female connector for digital video output, Max. resolution : 1920 x 1080 @ 60Hz
M.2
1 x M.2 (NGFF) B-Key(2242) socket interconnected with SIM card socket for optional LTE module
Materiale
Aluminum alloy
Montering
Support Wall-mount
mPCIe
2 x mini-PCI Express Slots interconnected with SIM card sockets for optional WiFi/BT/3G/LTE/GPS (PCIex1+USB2.0, Full Size) 1 x mini-PCI Express slot for optional WiFi/BT/GPS (PCIex1+USB2.0, Half Size)
OS SUPPORT
Windows 10 IOT (For 6th/7th Gen Intel CPU) Windows 7 / Windows 8.1 (For 6th Gen Intel CPU) Linux (Kernal 4.x )
SATA-interface
3 x Serial ATA port with 600MB/s HDD transfer rate
Spændingsforsyning
DC 9~36V input ( w/ 4-pin DV input terminal block,combining remote power on/off switch
Storage
1 x CFast socket, can be outside accessible 1 x external 2.5” SATA3 6Gb/s Drive Bay 1 x internal 2.5” SATA3 6Gb/s Drive Bay
Strømforbrug
Max. 120W (w/o I/O card)
System Memory
2 x 260-pin DDR4 SO-DIMM sockets, supporting 400 MHz SDRAM up to 32GB
Tilslutning
3 x RJ-45 ports for GbE, front side 4 x M12-female 8P connector, IP67 for GbE, A-coded, rear side
USB
6 x USB 3.0 ports, front side
Vægt
6.5Kg
Watchdog
1~255 levels reset
