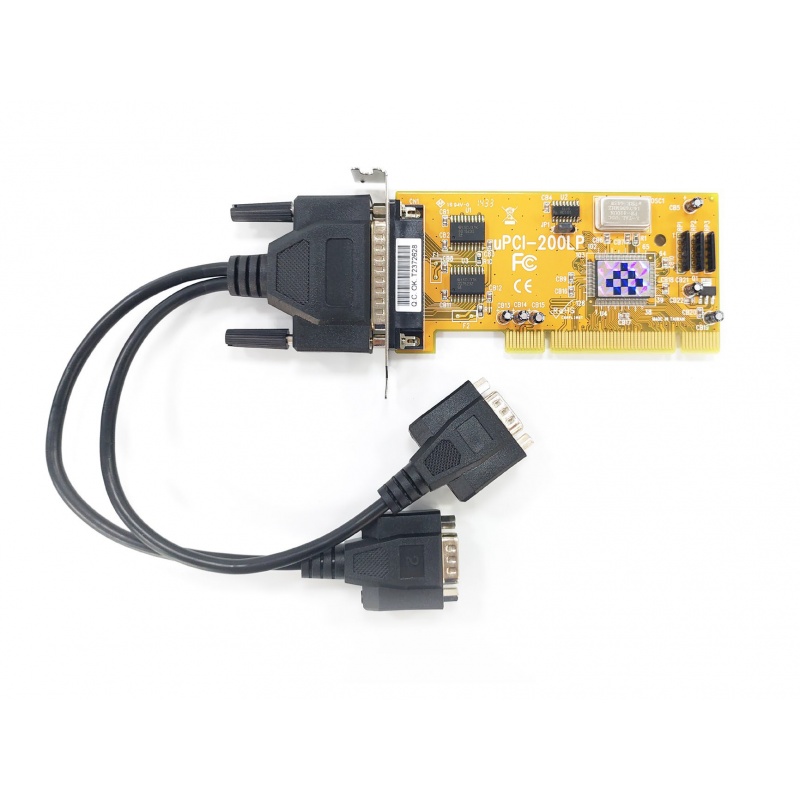

2 x RS232 serielle porte til PCI. Plug & play, høj og lav bagplade, TITAN PCI-200LP UPCI Vscom

2 x RS232 seriel porte med plug & play
1 x TITAN BSP9216B (chipset)
1 x DB25 han connector på kortet
1 x DB25 female til to DB9 han adapter kabler inkluderet
Bus: universal PCI (5V og 3.3V) 32 bit 33MHz
RS232 signal: DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS, RI
Maks. bitrate: 921.6kbps
Hver port med 16 bit FIFO for transmit & recieve
IS support: Windows, Linux
0°C to 60°C

SER2PCI3V-L
307,00  DKK
Ekskl. moms
Antal
Fysisk på lager

  • Download PDF
  • file_download Downloads
  • live_help Stil et spørgsmål

SER2PCI3V-L serial I/O cards offers two independent RS-232 serial ports. This I/O board support both 3.3V and 5V PCI bus, and it’s compatible with 32-bit PCI, 64-bit PCI and PCI-X bus. All serial ports are built by 16550A-compatible UARTS with 16 byte FIFO.
The supplied drivers for Windows operating system install the serial ports into the Windows API, so they appear as the usual Com ports software requires. A rich set of driver options is configured via the Device Manager in Windows. The drivers allow to configure the serial ports for a bit-rate of up to 921,600 bps.

Chipset
TITAN BSP9216B
Baudrate
Maks. 921,6 Kbit/sekund
Drivere
DOS, Windows 98, NT, 2000, XP, Win7, 2003, Linux og Vista
FIFO
16 bytes
I/O
Plug and Play
Porte
2
RAID niveau
Universal PCI (5V and 3.3V) 32 bit 33MHz
Spænding
3,3 og 5 V. kompatibel med PCI-X
Stik
2 x DB9 han (blæksprutte)
UART
16C550
