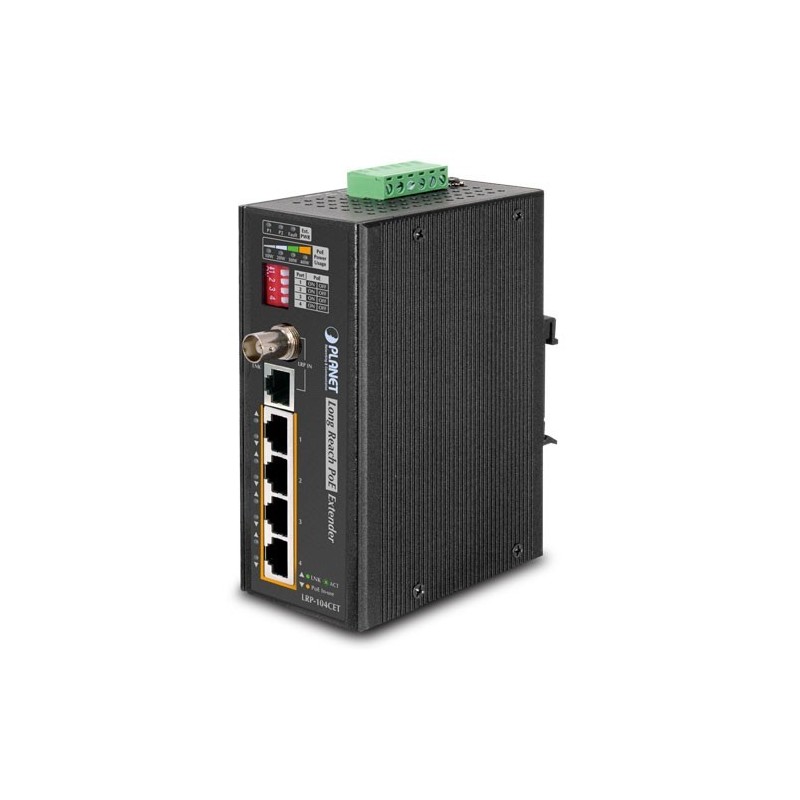

Ethernet 10/100Mbit over 75 ohm Coax kabel eller UTP kabel. VDSL. Med 4-ports switch. Op til 1 km. PoE over kabel

Ethernet over Coax eller UTP kabel
Kan strømforsynes med PoE fra PoE switch
Kan strømforsynes med PoE fra Injektor
4 x 10/100Mbit med PoE (Power budget er 20W)
1 X RJ45 PoE Long reach
1 x BNC port til Long reach Coax
PoE og Ethernet data via coax op til 1km
PoE og Ethernet data via netværkskavel op til 500m
Forsyning 44-56V DC eller PoE fra switch/injektor
Til vægmontering eller DIN-skinne
Mål: 135 x 87,8 x 56 mm
Driftstemperatur -20 til +70°

ETH-VDSL2IP
5.497,00  DKK
Ekskl. moms
Antal
På vej ind

  • Download PDF
  • file_download Downloads
  • live_help Stil et spørgsmål
Alarm
One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Data
Long Reach Power over Ethernet Power and Ethernet data transmission over coaxial up to 1km Power and Ethernet data transmission over UTP up to 500m Supports Long Reach PoE power up to 25 watts (depending on LRP Injector/Switch and cable distance)
Dimensioner
135 x 87.8 x 56 mm
Driftstemperatur
-20~70 ° C
Forsyning
44~56V DC power over coaxial input DC 24~48V, redundant power with polarity reverses protection function
Input
Power Input • 44~ 56V DC
Kabler
Cabling • Ethernet: 10BASE-T: 2-pair UTP Cat.3, 4 and 5 • Ethernet: 100BASE-TX: 2-pair UTP Cat.5, 5e and 6
Montering
DIN rail kit and wall-mount kit
PoE
Power over Ethernet Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE Supports PoE power budget up to 120 watts (external DC power input) Supports PoE power up to 30 watts for each PoE port (external DC power input) Auto detects remote PD
Porte
LRP interfaces - 1 BNC female, Long Reach PoE over Coaxial PD - 1 RJ45 connector, Long Reach PoE over UTP PD Copper interfaces - 4 10/100BASE-TX RJ45 ports with IEEE 802.3at PoE Plus PSE
Standarder
IEEE 802.3 Ethernet/10BASE-T IEEE 802.3u Fast Ethernet/100BASE-TX IEEE 802.3x Full-Duplex Flow Control IEEE 802.3at Power over Ethernet Plus
