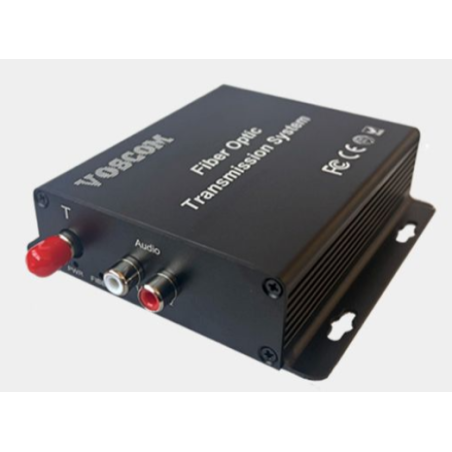

2 x analog audio over one fiber

Set consists of Transmitter/receiver

Unbalanced line level

1-channel stereo or 2-channel mono sound

RCA connector - phono female

ST fiber connector

Support for multi-mode fiber up to 500 m

Support for single mode fiber up to 60 km

LED status provides quick indication of operating parameters

No EMI or RFI and no ground loops

Stand-alone or rack mounting

Audio level in/out: +4dBu

Frequency range: 20Hz - 20kHz

Impedance: 600 ohms

Sample rate: 48kHz, 24kbit

Dimensions: 104 x 104 x 28 mm

Supply: 5VDC

Operating temperature: -20 - +75°C

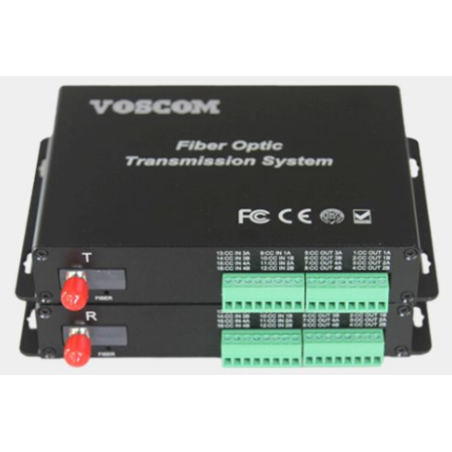

4 channels 2-way over fiber cable

Supplied as a set

500 meters@MM

100 km@SM

Input: Normally open

Output: Relay - normally open

Relay switch: 5VDC/5A, 30VDC/1A, 240VAC/0.25A

Status LED

Fiber connector: ST

I/O connections: Screw terminals

Supply voltage: 5VDC

Power consumption: 3W

Operating temperature: -20 - +75°C

Dimensions: 167 x 114 x 28 mm

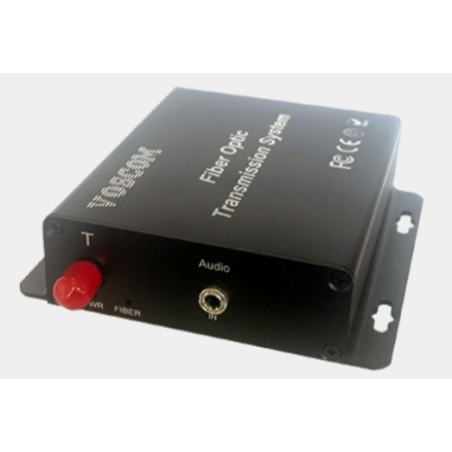

1 x analog audio over one fiber

Set consists of Transmitter/receiver

Unbalanced line level

1-channel stereo

3.5mm Jack connector

ST fiber connector

Support for multi-mode fiber up to 500 m

Support for single mode fiber up to 60 km

LED status provides quick indication of operating parameters

No EMI or RFI and no ground loops

Stand-alone or rack mounting

Audio level in/out: +4dBu

Frequency range: 20Hz - 20kHz

Impedance: 600 ohms

Sample rate: 48kHz, 24kbit

Dimensions: 104 x 104 x 28 mm

Supply: 5VDC

Operating temperature: -20 - +75°C

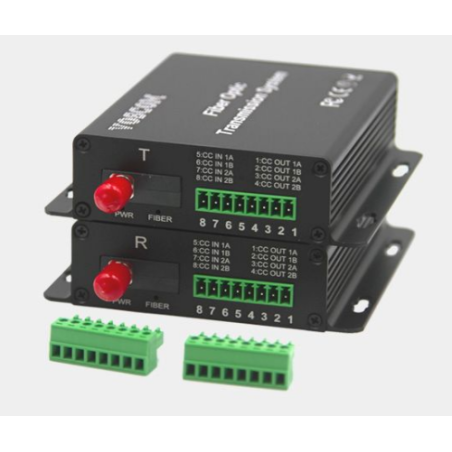

2 channel 2-way over fiber cable

Supplied as a set

500 meters@MM

100 km@SM

Input: Normally open

Output: Relay - normally open

Relay switch: 5VDC/5A, 30VDC/1A, 240VAC/0.25A

Status LED

Fiber connector: ST

I/O connections: Screw terminals

Supply voltage: 5VDC

Power consumption: 3W

Operating temperature: -20 - +75°C

Dimensions: 104 x 104 x 28 mm

Dual LTE Cat 6 router

2 x LTE Cat 6 modems

Dual SIM and optional eSIM

Wi-Fi 5 dual-band AP

5 x 10/100/1000 Mbps LAN

VPN: OpenVPN, IPsec, WG

Advanced firewall, VLAN

Load balancing, failover

Bluetooth LE connectivity

1 x DI, 1 x DO digital I/O

9–50 VDC, passive PoE

Temp -40–75 °C, IP30

Dual modem industrial router

5G SA/NSA plus 4G Cat 4

Fallback to 3G and 2G

Dual SIM and eSIM support

Wi-Fi 5 dual-band access

5 x Gigabit Ethernet LAN

VPN: OpenVPN, IPsec, WireGuard

TPM 2.0, firewall, VLAN

GNSS for location tracking

1 x DI, 1 x DO digital I/O

9–50 VDC input, passive PoE

Temp -40–75 °C, IP30

5G industrial router

5G SA/NSA, 4G Cat 19

Wi-Fi 6 dual-band AP

Up to 512 Wi-Fi clients

5 x Gigabit Ethernet

Dual SIM plus eSIM

VPN: OpenVPN, IPsec

WireGuard, Tailscale VPN

1 GB RAM, 8 GB flash

TPM 2.0 security

9–50 VDC, passive PoE

Temp -40–75 °C, IP30

5G industrial router

5G SA/NSA, 4G Cat 19

Dual SIM plus eSIM

Wi-Fi 5 dual-band AP

5 x Gigabit Ethernet

VPN: OpenVPN, IPsec

WireGuard, Tailscale VPN

TPM 2.0 security

GNSS: GPS/GLONASS etc.

1 x DI, 1 x DO I/O

9–50 VDC, passive PoE

Temp -40–75 °C, IP30

5G industrial router

5G SA/NSA, 4G Cat 19

Dual SIM plus eSIM

Dual-band Wi-Fi 5, MU-MIMO

Up to 150 Wi-Fi clients

2 x 10/100/1000 Mbps ports

VPN: OpenVPN, IPsec, WireGuard

Advanced firewall, VLAN, QoS

TPM 2.0 security module

Configurable digital I/O x2

9–50 VDC, passive PoE in

Operating temp -40–75 °C

RedCap 5G industrial router

5G SA, 4G LTE Cat 4 backup

Wi-Fi 4 access point

2 x 10/100 Mbps Ethernet

RS232 and RS485 serial

Dual SIM with auto failover

VPN: OpenVPN, IPsec, WireGuard

Advanced firewall, VLAN, QoS

microSD slot for data logging

Active and passive PoE input

9–57 VDC industrial power

Temp -40–75 °C, IP30

RedCap 5G industrial router

5G SA, 4G LTE Cat 4 fallback

Wi-Fi 4 wireless access point

2 x 10/100 Mbps Ethernet

VPN: OpenVPN, IPsec, WG

Advanced firewall, VLAN, QoS

WAN failover, load balancing

Mobile data quota control

9–30 VDC power, passive PoE

1 x DI, 1 x DO digital I/O

DIN-rail mounting option

Temp -40–75 °C, IP30

Industrial 4G LTE router

4G Cat 4, 3G, 2G

Wi-Fi 4 access point

2 x 10/100 Mbps Ethernet

RS232 and RS485 serial

Dual SIM with auto switch

VPN: OpenVPN, IPsec

WireGuard, ZeroTier VPN

Active and passive PoE in

9–57 VDC power input

microSD slot for data

Temp -40–75 °C, IP30

Industrial 4G LTE router

4G LTE Cat 4, 3G, 2G

Wi-Fi 4 access point

2 x 10/100 Mbps Ethernet

VPN: OpenVPN, IPsec

WireGuard, ZeroTier VPN

Firewall, VLAN, QoS

WAN failover, load balance

9–30 VDC, passive PoE

1 x DI, 1 x DO I/O

DIN-rail mounting option

Temp -40–75 °C, IP30

Industrial RS232 router

2 x 10/100 Mbps Ethernet

RS232 serial port, DB9

Wi-Fi 4 access point / STA

Modbus, DNP3, OPC UA

VPN: OpenVPN, IPsec

WireGuard VPN support

Firewall, VLAN, QoS

9–30 VDC input, pass. PoE

DIN-rail mounting bracket

Aluminium housing, IP30

Operating temp -40–75 °C

Industrial Modbus router

2 x 10/100 Mbps Ethernet

Wi-Fi 4 access point / STA

Supports Modbus, OPC UA

VPNs: OpenVPN, IPsec, WireGuard

Advanced firewall and QoS

9–30 VDC power input

Passive PoE via LAN1

DIN-rail mounting bracket

Aluminium housing, IP30

Operating temp -40–75 °C

113 x 25 x 68.6 mm, < 2 W max

44 pin

5CM

2½" IDE cable

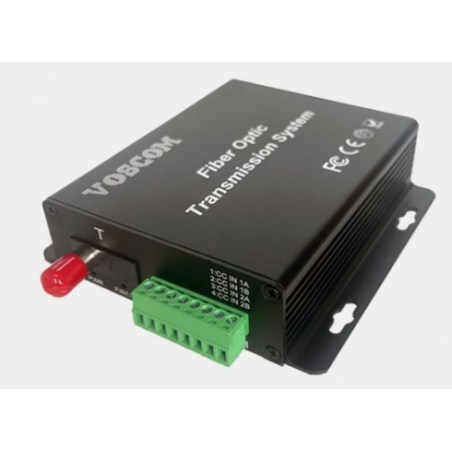

1 channel 2-way over fiber cable

Supplied as a set

500 meters@MM

100 km@SM

Input: Normally open

Output: Relay - normally open

Relay switch: 5VDC/5A, 30VDC/1A, 240VAC/0.25A

Status LED

Fiber connector: ST

I/O connections: Screw terminals

Supply voltage: 5VDC

Power consumption: 3W

Operating temperature: -20 - +75°C

Dimensions: 104 x 104 x 28 mm

8 channel 1-way over fiber cable

Supplied as a set

500 meters@MM

100 km@SM

Input: Normally open

Output: Relay - normally open

Relay switch: 5VDC/5A, 30VDC/1A, 240VAC/0.25A

Status LED

Fiber connector: ST

I/O connections: Screw terminals

Supply voltage: 5VDC

Power consumption: 3W

Operating temperature: -20 - +75°C

Dimensions: 104 x 104 x 28 mm

Smart 4G LTE Relay with RF 433Mhz Wireless

Control via Tuya Smart Life App

Supports self-locking and time activation

Remote appliance control via app

Input voltage: DC7V~32V

Max current capacity of 10A

Operational temperature: -20°C to 70°C

Humidity tolerance up to 80%

Compact size: 81x76x28mm

NVME Duplicator

Offline cloning

Works as a docking station

USB 3.2 and USB-C

Up to 8 TB disks

Hard drives not included
