2 channel Audio (or 1 x stereo) over Simplex Fiber Cable, Single Mode or Multi Mode

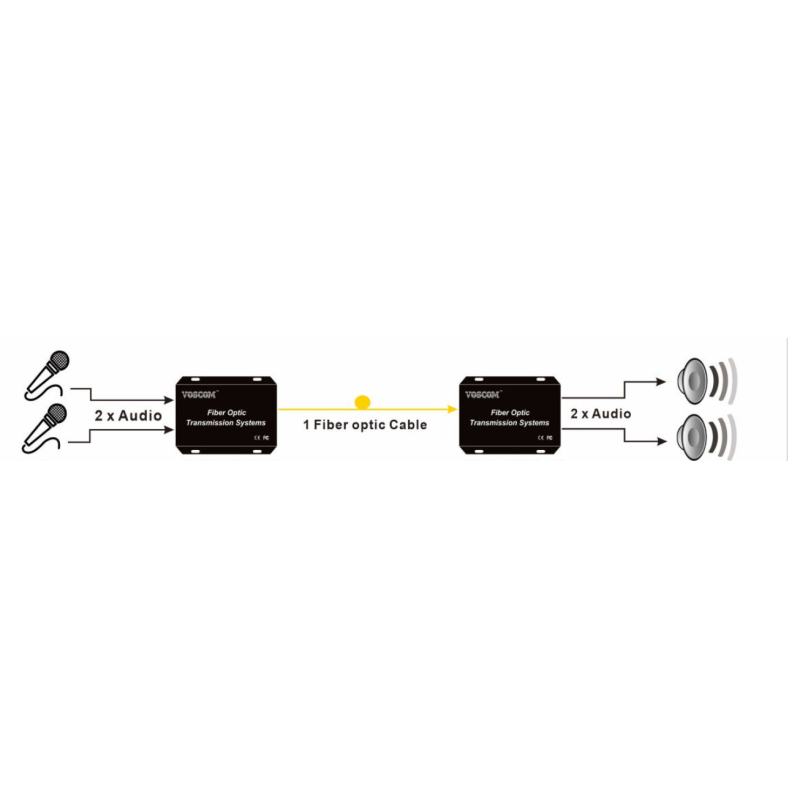

2 x analog audio over one fiber

Set consists of Transmitter/receiver

Unbalanced line level

1-channel stereo or 2-channel mono sound

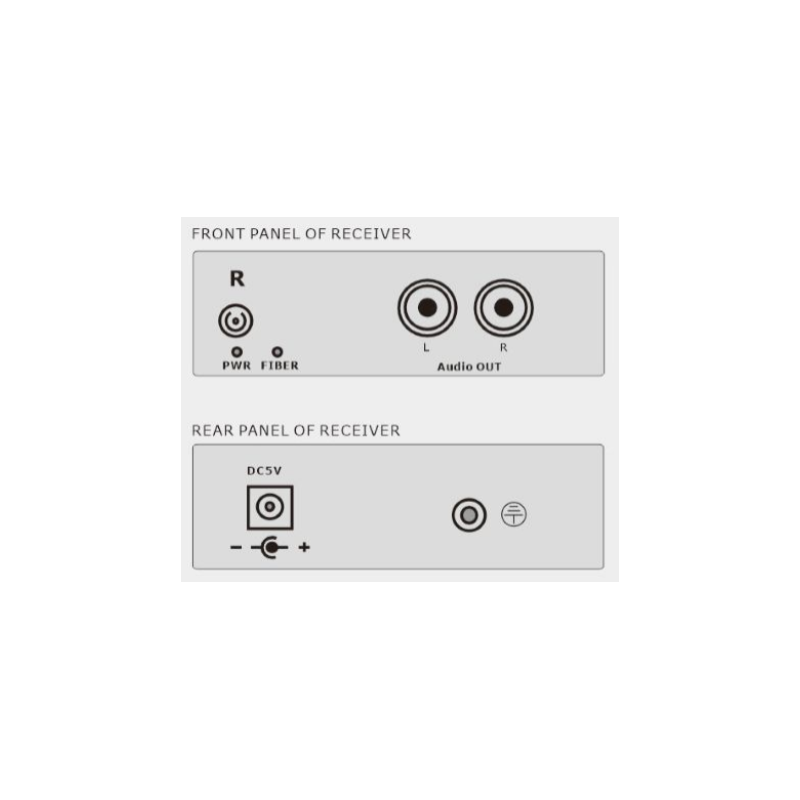

RCA connector - phono female

ST fiber connector

Support for multi-mode fiber up to 500 m

Support for single mode fiber up to 60 km

LED status provides quick indication of operating parameters

No EMI or RFI and no ground loops

Stand-alone or rack mounting

Audio level in/out: +4dBu

Frequency range: 20Hz - 20kHz

Impedance: 600 ohms

Sample rate: 48kHz, 24kbit

Dimensions: 104 x 104 x 28 mm

Supply: 5VDC

Operating temperature: -20 - +75°C

2,576.00 kr
Excl. VAT
Quantity
On the way in
ADD TO CART
Product number FIBERAUDIO2-RT
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

The FIBERAUDIO series transmits 2-channel mono audio over fiber using 24-bit digital encoding, ensuring clear sound and reliable signal transmission over long distances. Perfect for broadcast studios, CCTV systems and professional AV setups, it offers high-quality sound with strong resistance to interference.

Analog audio over one fiber.

Use both channels for stereo sound.
