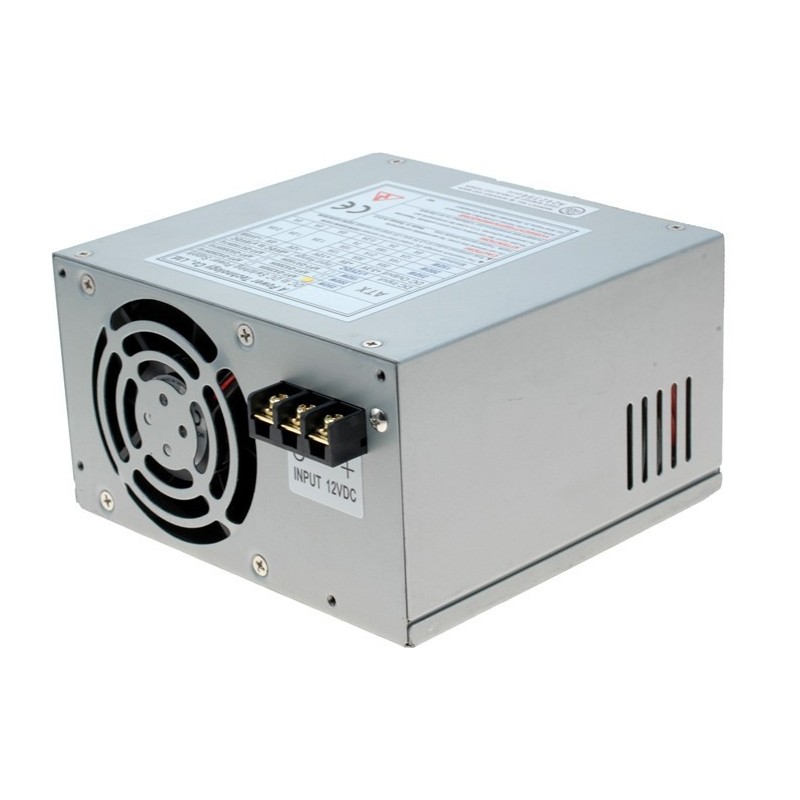

12VDC PSU for PC ATX, P4, PS/2

SATA
P4 plug connector Xeon
PCI-Express
Supply Voltage 100-240 VAC
H x W x D: 150 x 86 x 170 mm

300 W ATX for 24 VDC, with P4 and PCI-express connector

Dimensions: H 85 x W 150 x D 140

300 W ATX PSU with P4
Auto 110V/230V
20 pins
Ball bearing DC fan
Low noise
Dimensions: H 86 x W 150 x D 140

1200 W ATX med P4, PCI-Express og SATA
VOLTAGE：90～264VAC
FREQUENCY： 47～63HZ
INPUT CURRENT：15 (RMS) FOR 120 VAC / 8A (RMS) FOR 230 VAC
INRUSH CURRENT：40A MAX. FOR 120 VAC / 80A MAX. FOR 230 VAC
PFC CAN REACH THE TARGET OF 95% @230VAC, FULL LOAD
HOLD UP TIME：WHEN POWER SHUTDOWN DC OUTPUT 5V MUST BE MAINTAIN 12mS IN REGULATION LIMIT AT NORMAL INPUT VOLTAGEEFFICIENCY：TYPICAL 80-85% AT 25℃ 115V FULL LOAD
POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1mS
OVER POWER PROTECTION：TRIP POINT TOTAL POWER MIN. 110%, MAX. 150%
OVER VOLTAGE PROTECTION：+5V→5.8V～6.7V, 3.3V→3.6V～4.3V, +12V→13.2V～15V
OVER CURRENT PROTECTOIN: +3.3V→37.4~51A, +5V→37.4~51A, +12V→110~150A
SHORT CIRCUIT ：+5V、-5V、+12V、-12V、+3.3V
RESTART AFTER PROTECTION
TEMPERATURE RANGE：OPERATING 0℃～40℃
LEAKAGE CURRENT: 1.5MA MAX. AT NOMINAL VOLTAGE VAC
EMI NOISE FILTER : FCC CLASS B , CISPR22 CLASS B
SAFETY : TO MEET UL, CUL, TUV, CCC
REMOTE ON/OFF CONTROL
160x150x86(mm)
