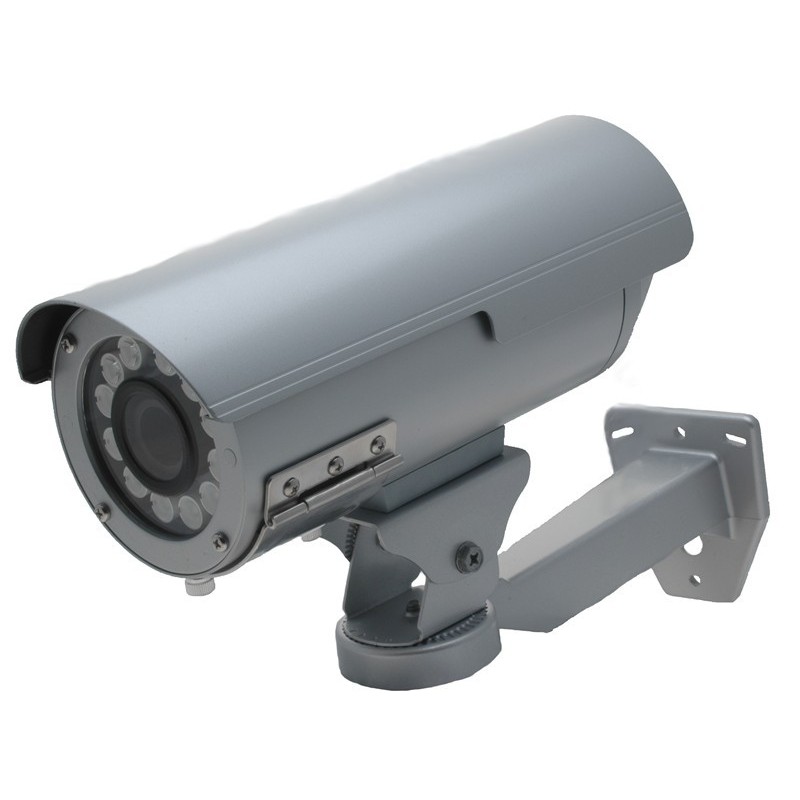

2 MP HD-SDI outdoor camera w / fittings for holder. Analog CCTV output BNC. HD-SDI digital video.

2 MP SDI camera
high-resolution digital video over coax cable
real time viewing
CCTV analog video exit
IP66
IR light
12VDC
DIM: 268 x 111 x 115 mm
Weight: 1.6kg
weather-resistant aluminum cabinet
removable shade against sunlight

KAM-SDI2MP-BUL
2,516.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

KAM-SDI2MP-BUL is 2 megapixel HD-SDI cameras that support 1080p and 720P solutions. The SDI video output is a BNC connector and coaxic cable is used for the transmission. The camera is also CCTV analog camera with BNC output.

The cameras can therefore use existing RG59 cables if older analog installations must be upgraded to megapixel. Unlike IP megapixel cameras, there is no delay of the images from the camera. The camera type is therefore useful for real-time monitoring, e.g. in process plants.

Billedsensor
2 Megapixel 1/3” CMOS
Driftstemperatur
- 10 oC – 50 oC
Kameraholder medfølger
Ja
Linse
Indbygget 2,8 – 12mm zoomlinse
Strømforsyning
12 VDC 1,5 A strømforsyning (medfølger ikke)
Video output
SDI interface: ét BNC stik. Analog videoudgang: ét BNC stik
Videoopløsning
30 fps ved 1080p (1920 x 1080), 60 fps ved 720p (1280 x 720)
