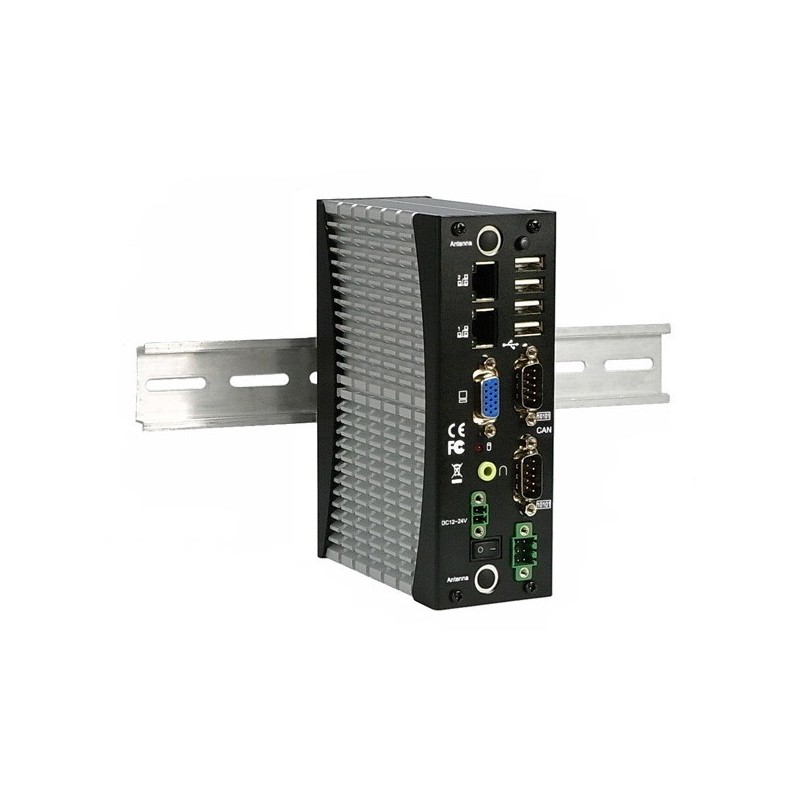

3½ "Embedded Industrial Mini PC, Atom N2600, CF, 4xUSB, 2xRS232 CAN Bus

Atom 1.6GHz CPU N2600
2GB RAM, So-DIMM socket
1 x RS232 / 422/485 with DB9 connectors. 1 x RS232 / 422/485 / CAN with DB9 connector
VGA
4 x USB
2-in / 2-out digital
2 x 10/100/1000 RJ45 ethernet
CF
Mini SIM socket
2.5" SSD / HDD slot
DIN rail mounting
OS support: Windows 7, XP Embedded and Linux

IPC-EMDIN-ATOM+
7,480.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Industrial mini PC
3½ ”format
Suitable for industrial automation tasks
Can DIN rail mounted or panel & nbsp; mounted
Other models / specifications can be supplied
We offer to collect and install software as desired Contact our sales department.

CPU
Intel Atom-N2600 1.6GHz, 1MB L2 cache (Intel dual core CPU)
Chipset
NM10
Drev
Kan monteres med 2½” SATA harddisk. 1 x CFast Card type I/II sokkel 1 x SD sokkel (Klasse 6)
I/O
1 x Digita I/O tilslutning via 6 pin terminalblok. Tænd/sluk knap, 1 x Power LED, 1 x HDD LED 1 x PCIe Mini-card interface til trådløs eller GPRS modul
Lyd
1 x lydudtag via jack-stik til hovedtelefon
Montage
Mulighed for DIN skinne montage. Eller VESA 75*75 panel montering
Netværk
2 x 10/100/1000 Mbit m/RJ45-stik Realtek RTL8111F
OS SUPPORT
Understøtter Windows 7, XP Embedded og Linux
RAM
1 x 200-pin DDR3-RAM SO-DIMM. Monteret med 2GB RAM (maks. 2GB)
Serielle porte
1 x RS232/422/485 med DB9-stik. 1 x RS232/422/485/CAN med DB9-stik
Strømforsyning
9~32 VDC, 35V A via 2 pin skrueterminal (benyt DC12V/5A-R-Q)
VGA
1 x VGA analog med DB15 tilslutning
