Electronic power switch reversed - powerless locked to 12 volts

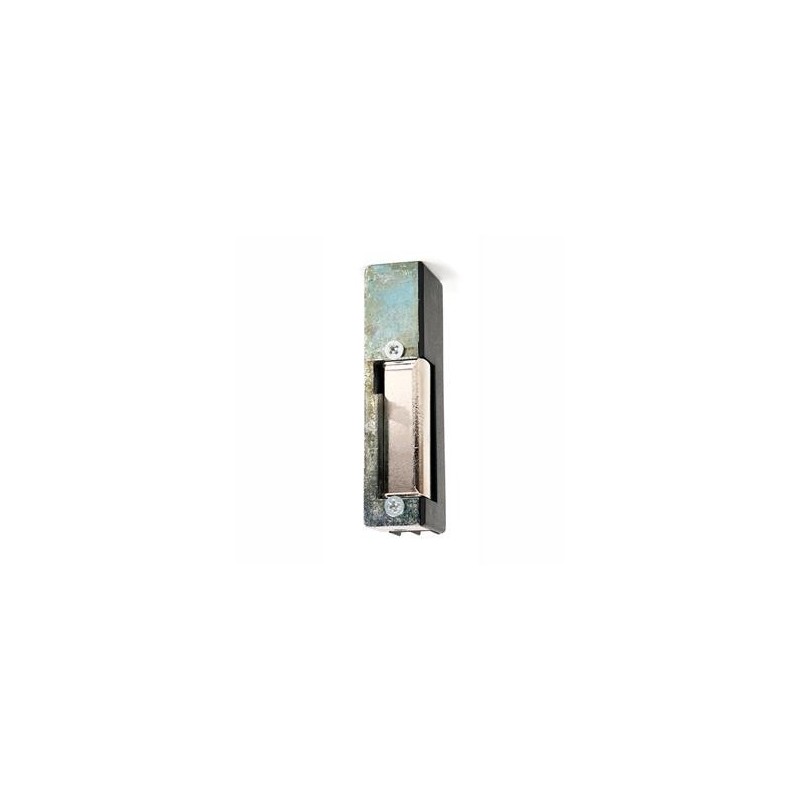

Electric endplate for frame, fixed drop, left for 12VDC / 200mA
locked at powerless
Holding power: 400kg
Dimensions: 90 x 28 x 21mm

DOORLOCK12VF
DKK351.00
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Standard electrical endplate with fixed or adjustable fall. When the endplate is fully assembled, it is easy to adjust the fall if the door is to bind due to sealing strips or if it "hangs".

All standard electrical outlets are available with or without adjustable fall. Holding force 300 kg. Choose between single or double bar for the lookout.
Active: Locked without tension
Power: 400 kg
Page: Choose either right or left
Hand rule: visible hinge on the right side = right-handed electrical end view)
Supply: 12VDC & nbsp; 200mA on activation
Dimensions: 90 x 21 x 28 mm (H x W x D)

Dimensioner
90 mm (H)
Forsyning
12/24VDC 200/110mA ved aktivering
