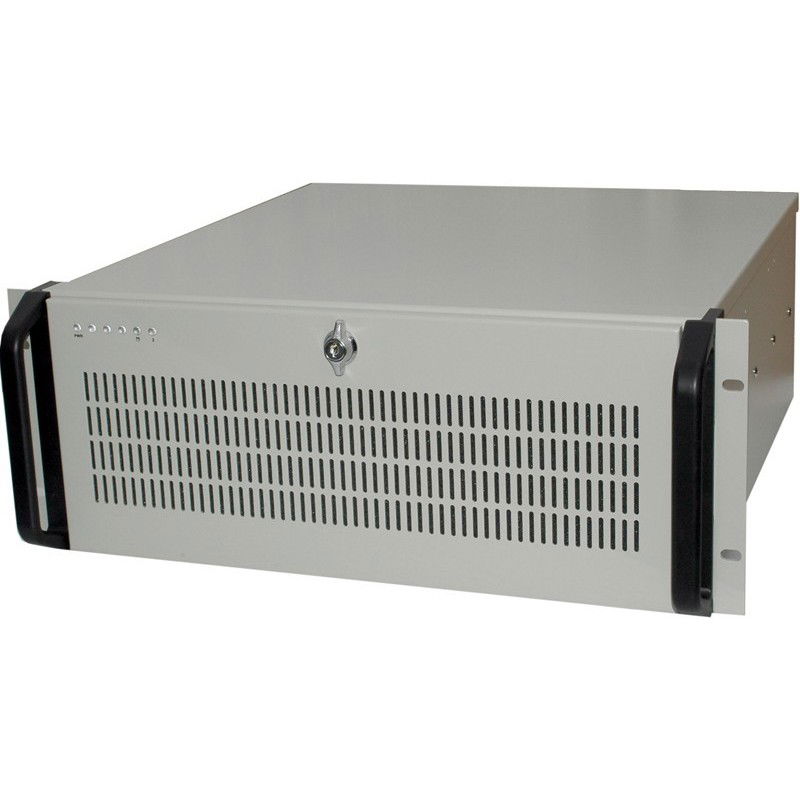

19" Industri PC, 4U

4U PC med Core i5, 4 GB Ram og 250 GB HDD.

IPC4U-CI5+3
15,882.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

19” Industri PC med Intel Core processor.

Med 3.3 GHz Core i5, i 4U kabinet.

CPU
Socket LGA1155 til 3. generation Core i3, i5 og i7 (Ivy Bridge). Monteret med 3.3 GHz Core i5 3550
Chipset
Intel Q77
BIOS
4 Mbit AMI flash BIOS
Drev
Monteret med 3½” 250 GB SATA harddisk. Monteret med SATA DVD-RW drev
Driftstemperatur
0°C - 40°C (5-90% ikke-kondenserende)
FSB
1066/1333 MHz
Grafik
Integreret Intel HD med 1 x DB15HDF stik. (Maks. opløsning 2048x1536, bruger op til 1024MB af system-RAM). Mulighed for DVI og LVDS via pins
Hukommelse
2 x 240-pin DDR3 DIMM, maks. 16 GB, PC3-8500/10600/12800. Monteret med 4 GB DDR3-RAM
Lyd
Realtek ALC662 HD Codec
Netværk
1 x 100/1000 Mbit Intel 82579V m/ RJ45-stik. 1 x 100/1000 MBit Intel 82583V m/ RJ45-stik
OS SUPPORT
Understøtter Windows XP, Vista, Windows 7/8, Windows Server 2003/2008
Overvågning
Måler CPU temperatur, spænding m.m.
Porte
1 x RS232/422/485 med DB9M-stik via bagplade (medfølger). 1 x RS232 med DB9M-stik via bagplade (medfølger ikke)
Porte
1 x SPP/EPP/ECP, bi-direktionel med DB25F-stik, via bagplade
Strømforsyning
PS400ATX, 230VAC
Tastatur/mus
Via USB (benyt evt. CNV-USB-PS2+)
USB
3 x USB 2.0 Hi-Speed (2 i front og 1 bagpå) 1 x USB 3.0 Super-Speed bagpå
Watchdog
Watchdog timer m/255 niveauer
