PoE injector which provides 12V, 19V or 24V DC passive PoE for equipment - non-standard

Passive PoE Injector with 12 / 19 / 24 VDC 0.7A output
From Active to Passive PoE converter
PoE input port: IEEE 802.3af/at RJ-45 STP / PD. Supplied from an active PoE switch
Passive PoE output port: non-802.3af/at RJ-45 STP / PSE. For equipment that is NOT for active PoE.

ETH-POE50PAS
623.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Active PoE to passive PoE converter.

Supply passive PoE equipment via PoE. 12, 19 or 24 volts.

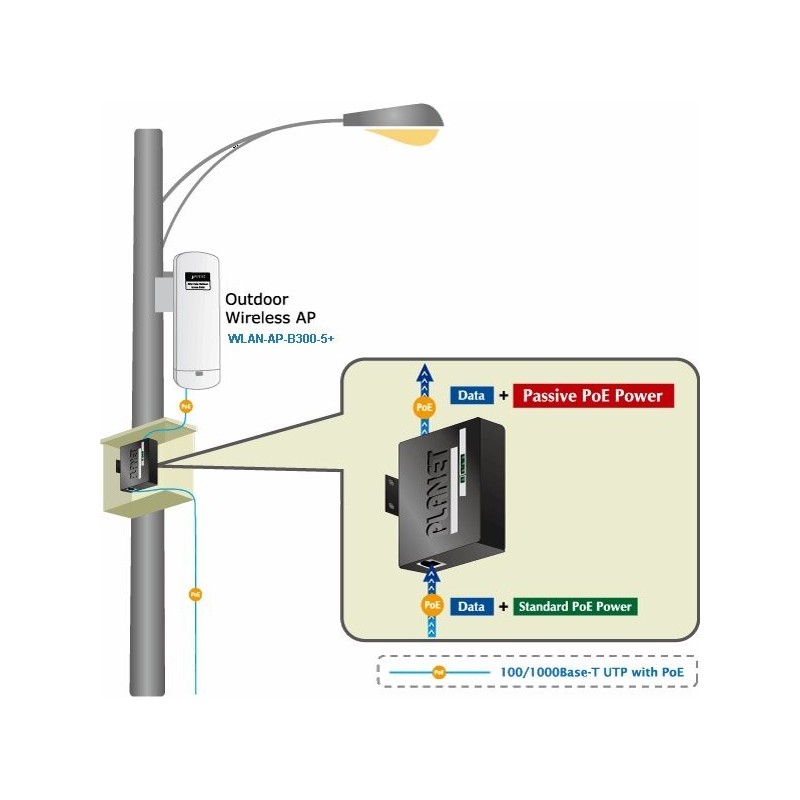

The ETH-POE50PAS is a PoE to "passive PoE" converter. Thus, devices that only support "passive PoE" can be supplied via a regular PoE switch or injector.

The ETH-POE50PAS can deliver up to 0.7A at a voltage of 12, 19 or 24 VDC. It requires that it is connected to a PoE switch or injector that supports the PoE standard IEEE802.3at.

Driftstemperatur
-40 – 75 °C. Luftfugtighed: 5 – 90 % ikke-kondenserende
Konvertering
PoE konverter, der konverter PoE-signalet til ”passiv PoE”
Standarder
Understøtter PoE standarderne IEEE802.3af og IEEE802.3at på indgangen
Tilslutning
PoE konverteren tilsluttes en PoE switch eller injector
Udgangsspænding
12, 19 eller 24 VDC. Maks. 0,7A, via terminal 4/5(+) og 7/8(+)
Understøtter
10/100/1000 Mbit Ethernet (10Base-T, 100Base-TX og 1000Base-T)
