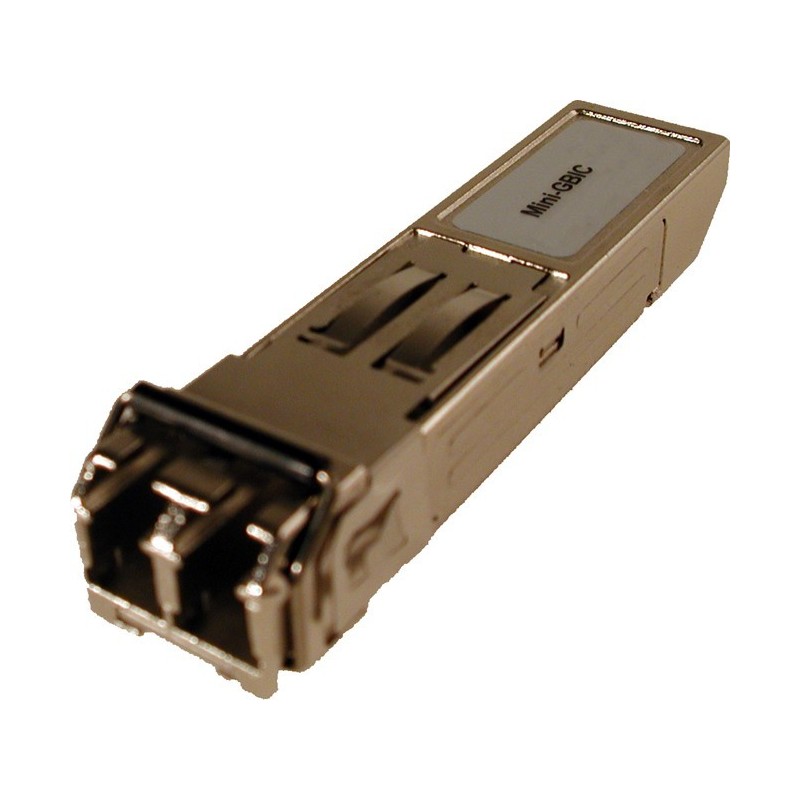

MiniGBIC / SFP, LC typ, 1310 nm, 10 km, singelmod
Modul 1000Mbit (1Gbit) nätverksutrustning.
GBIC och SFP fiber plug-in modul.
Insticksmodul för att inkludera Växlar - gör det lätt att ändra till ett annat typ av fiber.
Fiberkonvertermodul i SFP (+) / miniGBIC eller GBIC-format. Kräver motsvarande expansionsutrymme i utrustningen modulen måste installeras - till exempel. switchar.
Unmanaged & nbsp; 5 ports industrial switch
4 x RJ45 10 / 100Mbit
1 x SC fiber 100Mbit Multi Mode
MANAGED SWITCH
4 x 10/100Mbit RJ45 PoE+ ports
2 x 10/100Mbit RJ45 redundant uplink ports
DC 48V Power Input
Up to 25 Watt per port
Up to 80 Watt total power
Multiple Super Ring technology (MSRTM), up to 5ms recovery time
Patented Rapid Dual Homing (RDHTM) technology
SNMP v1/v2c/v3, IGMP snooping v1/v2/v3, RMON, VLAN, QoS
Network security by IP/MAC address, SSL and SSH
Built-in hardware watchdog timer for system auto-reset
-40~60°C wide operating temperature
JetCard 1404i & nbsp; 4x insulated RS422-485
With 2 KV optical isolation
OS SUPPORT
Windows 98 / Me / NT / 2000 / XP / 2003,
RedHat Enterprise 4.0 (2.6.9) / RedHat Enterprise 3.0 (2.4.21) / RedHat 9.0 (2.4.20) / RedHat 8.0 (2.4.18) / RedHat 7.3 (2.4.18) / RedHat 7.2 (2.4 .7) / FC5 (2.6.16) / FC3 (2.6.9) / FC2 (2.6.5) / FC1 (2.4.22) / Mandrake 10.1 (2.6.8) / Mandrake 9.2 (2.4.22) Regulated
> WIN 7
Korenix JETI / O 6511
Network module with 8 x analog inputs
Channels: 8
Resolution: 16 bit
Analog inputs: ± 150 mV, ± 500 mV, ± 1 V, ± 5 V, ± 10 V and ± 20 mA
Optical 2500 VRMS for analog and digital inputs and outputs for the power supply
Magnetic 1500 V from the network interface to the power supply
10/100 Mbit m / RJ45 female connector
Operating temperature: - 25 ° C - 70 ° C
For DIN rail mounting
Supply: 10 - 30 VDC via terminal block. Max 3.2 W
