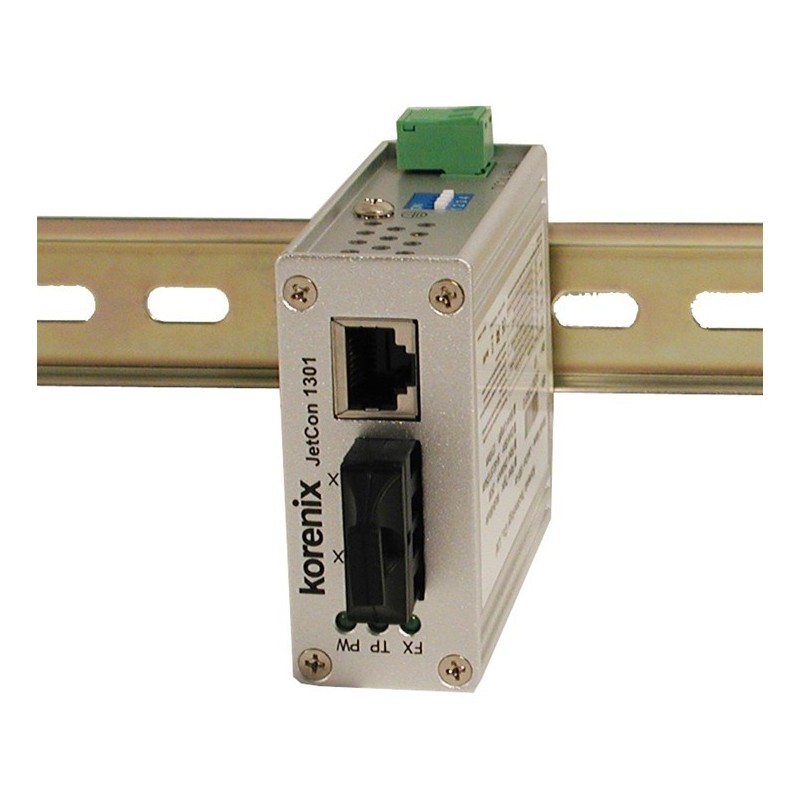

Media converter RJ45 to 100Mbit Multi Mode Fiber, SC, 2 km

10/100 Mbit copper Ethernet SC MM fiber Ethernet converter
1 x 10 / 100Base - TX RJ45 female connector

1 x 100 FX w. SC Multi Mode female connector
Up to 2km (50 ~ 62.5 / 125um fiber)
-10 ° ~ + 70 ° C operating temperature

ETH-RJ45-SC-I
1,217.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Compact industrial media converter.

Copper networks for multimode SC fiber.

Driftstemperatur
-10° ~ +70° C
IP-Tæthed
31
Medfølger
Leveres med manual og aftageligt DIN skinnebeslag
Omformer
10/100 Mbit kobber Ethernet til SC Multimode fiber Ethernet
Rækkevidde
Op til 2 km (50 ~ 62.5/125 µm fiber)
Stik
1 x 10/100Base-TX med RJ45-hunstik. 1 x 100Base-FX med SC Multimode-hunstik, 1310 nm
Strømforsyning
2-pin terminalblok til strømforsyning (18 ~ 32 VDC eller 18 ~ 27 VAC, 3.5 W)
