External COM port via Ethernet and Intenet - for fiber cable

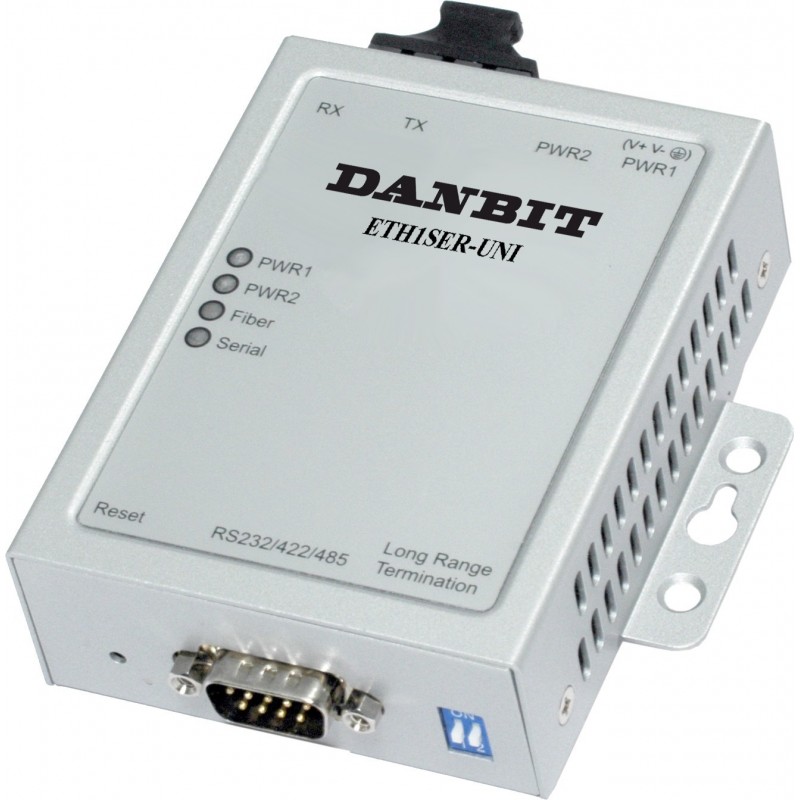

Device server with multimode fiber and RS232 / 422/485 port
ETH1SER-UNI2F for network connections via optical fiber up to 2 km. For local area and / or internet. Can be set up with a built-in WEB server, telnet and with Windows setup program. Ideal for installations where parts of the network use fiber cable. See our other equipment with fiber interface (network card, switches, media converter, etc.) in the network chapter (chapter 20). Typical applications are in industrial environments where electrical disturbances are critical. With large temperature range. Supplied in metal housing with mounting brackets. Bracket for YOUR rail included
JetCard1208L serial card. 8 x RS232, low & high backplate
JETBOX 8210D+CF2G-CC
MANAGED SWITCH
4 x 10/100Mbit RJ45 PoE+ ports
2 x 10/100Mbit RJ45 redundant uplink ports
DC 48V Power Input
Up to 25 Watt per port
Up to 80 Watt total power
Multiple Super Ring technology (MSRTM), up to 5ms recovery time
Patented Rapid Dual Homing (RDHTM) technology
SNMP v1/v2c/v3, IGMP snooping v1/v2/v3, RMON, VLAN, QoS
Network security by IP/MAC address, SSL and SSH
Built-in hardware watchdog timer for system auto-reset
-40~60°C wide operating temperature
One port compact 10/100 TX to 100FX media converter
Link-Loss Forwarding (LLF) far-end fault detection technology
Compliance with IEEE 802.3 / IEEE 802.3u standards /
IEEE 802.3x standards
Supports 19 ”3U 16 slots chassis mounting, Rack-1001/1002
JetCon 1501T 10 / 100Base-TX to 100Base-FX, ST connector,
Multi-mode 2KM
