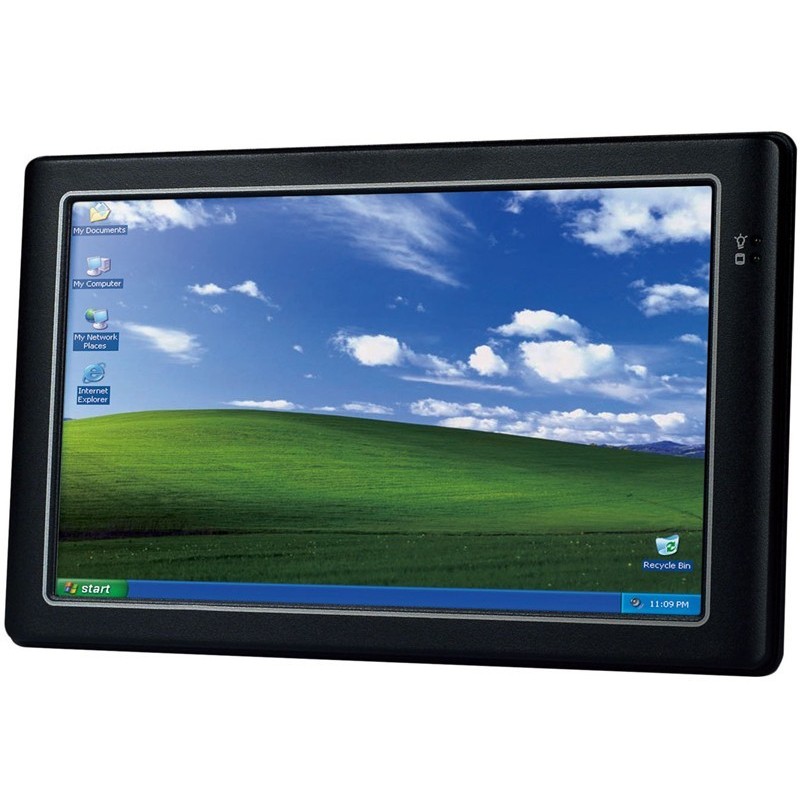

9" panel pc m/ indb. touch

Panel PC 9” med indbygget touch.

IPP9T
6,050.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

9” panel PC.

Blæserløs Embedded panel PC med indbygget touch.

CPU
DM&P Vortex86MX+ 933Mhz
Dimensioner
146 x 226 x 35 mm
Driftstemperatur
0°C - 50°C (5-90% ikke-kondenserende)
I/O
1 x on/off knap
Indikering
2 x LED på front til indikering af on/off samt disk aktivitet
Ledige Slots
1 x CompactFlash type I/II. 1 x micro SD kort plads
Lyd
Realtek ALC262
Materiale
Plastik kabinet
Montage
Panel, væg, på fod, arm, VESA 75 x 75
Mus/tastatur
Via USB eller PS2
Netværk
1 x 10/100/ Mbit Ethernet m/RJ45-stik
OS SUPPORT
Understøtter DOS, Linux, Windows CE6, Windows XP
RAM
1 GB DDR2. Kan ikke udvides
Serielle porte
1 x RS232/422/485 DB9M-stik
Skærm
9” TFT, LCD, 300 cd/m2. Maks. opløsning 1024 x 600. MTBF 25000 timer. Resistive Touch
Strømforsyning
8 ~35 V DC / 10 watt via skrueterminaler. Leveres uden strømforsyning
Weight
470g
