2 USB ports over Ethernet - professional version for USB dongles, Serielport devices USB 2.0

Portserver med 2 USB porte over Ethernet

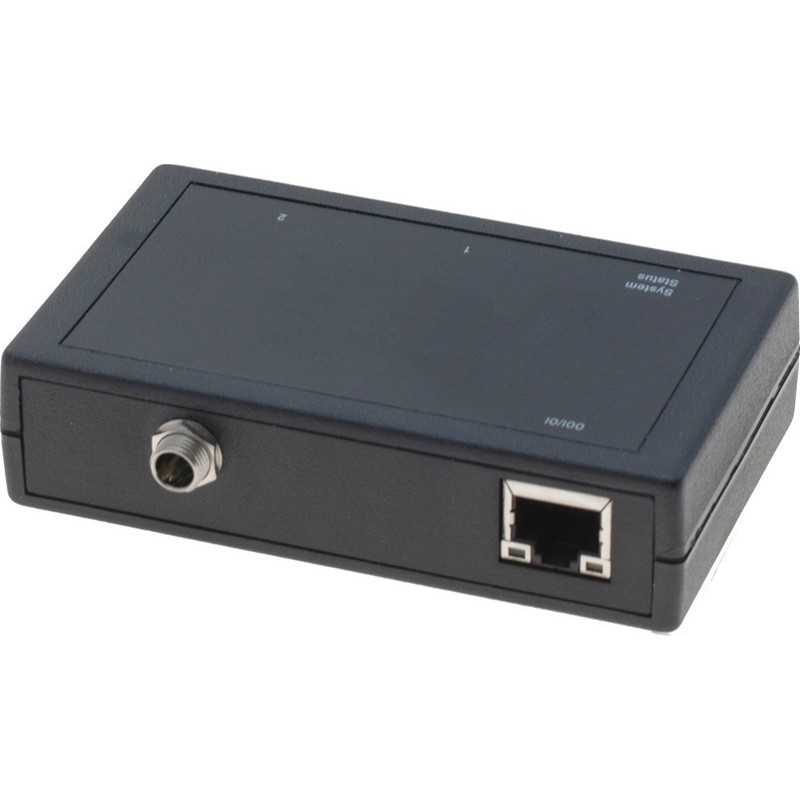

ETH2USB
2,978.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

With ETH2USB repealed 5 -meter limitation for USB connections. ETH2USB is a port to the Ethernet server that can be accessed by a PC at a time, where up to two USB devices can be connected to each port and the server port up to 8 servers can be controlled simultaneously by each PC . Port The server has the opportunity to set up the gateway , so it is possible to access it through a router or internettet.ETH2USB can be used with many types of USB devices and creates a virtual USB port on the PC , which behaves like a physical USB port. Also works with certain dongles for software protection . Can be used with eg .:

USB barcode scanners
USB printers
USB fingerprint scanners
USB mice and keyboards
USB POS displays
SB receipt printers
USB magnetic card readers
USB to serial converters
USB cameras USB versions :
USB 1.0 , 1.1 and 2.0 with speeds up to 12 Mbps.
USB supply and up to 500 mA per . gate

Ethernet
10/100 Mbps
Operativsystem
Drivere til Windows XP, XP embedded, 2003 Server, Vista, 2008, 7, 2008 R2 og 8 medfølger
Dimensioner
26,1 x 182,9 x 110,5 mm (H x B x D)
Stik
2 x USB type A hunstik, 1 x RJ45 til Ethernet og 1 x 5 mm DC stik til strømforsyning
Opsætning
Kan gøres fra netværket via medfølgende program
Forsyningsspænding
5 VDC, 3 A. Strømforsyning (230 VAC) medfølger
