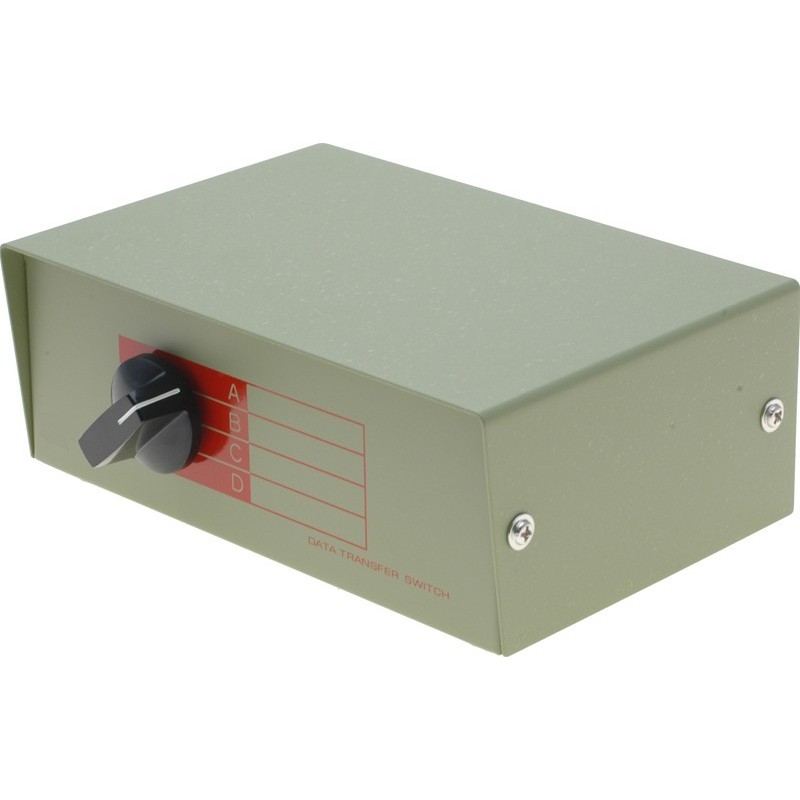

Til omskiftning mellem DB25 enheder. Med manuel omskifterknap på frontpladen og tilslutningsstik bag på kassen. Boksene skifter alle ledere i stikkene.
Anbefales kun til testbrug!
Stiktype: DB25F
Omskifter mellem: 4 enheder
Antal stik: 5 (hunstik)
Bemærk at der er tale om en mekanisk omskifter, så der er ingen skærmemulering!
UHF 433 MHz RS-232 adapter
RS-232 konfigureres via COM port
1 to 1 tilslutning
1 to N broadcast
Op til 200 meter
Extend the distance between PC and RS232 Equipment
Straight through network cable
RS232 serial port boost up to 1.2 km
Baud rate range: 300 - 200kbps
Supply voltage: DC9-24V (not included )
Optical isolation
isolation voltage: 2500Vrms pulse or 500 V = continuous
Dimensions: 100 mm x 50 mm x 20 mm
Weight: 350 g
Booster RS232 up to 250 meters over RJ45 cable
Use STP (screened) patch cable - straight through
Network cable must not connect to patch panel
2 ports Mechanical COM port switch, DB9 female / male
1 x DB9 female - I / O
2 x DB9 male - A and B
signal direction (I / O to A or B or A or B to I / O)
All 9 connections Switches
Good quality, but recommended for test use only
120 x 90 x 30mm
