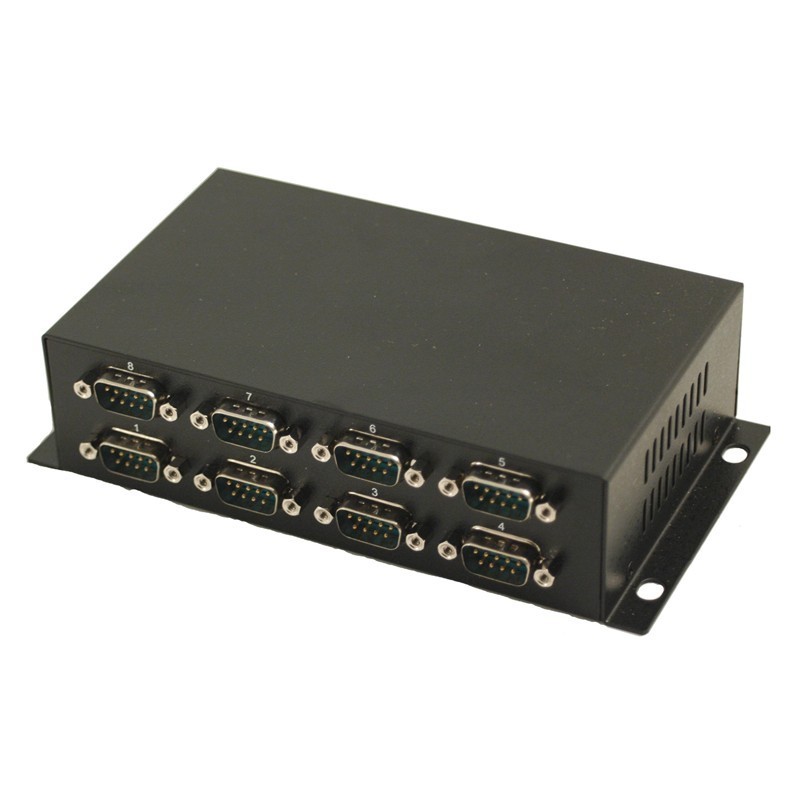

USB to 8 x RS232 convertere

Få 8 stk. COM-porte på PC via USB porten

Tilslut op til 8 stk. RS232 enheder til en USB-port
Galvanisk isoleret - RS232 er kun RX, TX og GND
COM porte kan re-mappes
Strømforsyning medfølger 5VDC/2A - er nødvendig, pga. galvanisk isolering mellem USB og COM porte
Robust metal-kabinet

Supporting Win7

CNV-USB8RS232I
4,705.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Understøtter både OHCI (Open Host Controller Interface) og UHCI (Universal Host Controller Interface). Overholder USB specifikationerne 1.1 – visse modeller også 2.0 (se nedenfor)

Kan ikke bruges med dongles (hardwarelås til software)

Drivere til Windows 98, 98SE, 2000 og XP, Win7 samt manual medfølger.

CNV-USB16RS232 har også drivere til Win8 og MAC

CNV-USB16RS232-modellerne leveres med beslag til 19” rackmontag

CNV-USBxRS232I-modellerne har optokobler i indgangen og tåler overspændinger op til 2500 V

CNV-USBxRS232SL-modellerne har huller til fastspænding i USB indgangen

Optager ikke IRQ, DMA eller I/O port – COM porte kan remappes

RS232-signalerne: TxD, RxD, RTS, CTS, DTR, DSR, GND og DCD.

CNV-USBxRS232I overfører kun TxD og RxD

Maksimal hastighed: 115,2 Kbit/s (CNV-USB16RS232 op til 921,6 Kbit/s)

Signaler
RS232
Stik
8 x DB9
Strømforsyning
Ikke nødvendig
USB
1.1
