4-Ports industriel 10/100TX PoE + 1-Port Coax Long Reach PoE Extender

4-ports industriel PoE omformer - extender
4 x 10/100TX PoE (RJ45) 1 X RJ45 PoE Long reach, 1 x BNC porte
Power og Ethernet datatransmission via coax op til 1km
Power og Ethernet datatransmission via UTP op til 500m
Forsyning 44-56V DC
Til vægmontering eller DIN-skinne
Mål: 135 x 87,8 x 56 mm
Driftstemperatur -20 til +70°
IP30 tæt kabinet

4,518.00 DKK
Tax excluded
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
-20~70 ° C
135 x 87.8 x 56 mm
IEEE 802.3 Ethernet/10BASE-T IEEE 802.3u Fast Ethernet/100BASE-TX IEEE 802.3x Full-Duplex Flow Control IEEE 802.3at Power over Ethernet Plus
LRP interfaces - 1 BNC female, Long Reach PoE over Coaxial PD - 1 RJ45 connector, Long Reach PoE over UTP PD Copper interfaces - 4 10/100BASE-TX RJ45 ports with IEEE 802.3at PoE Plus PSE
44~56V DC power over coaxial input DC 24~48V, redundant power with polarity reverses protection function
DIN rail kit and wall-mount kit
Power over Ethernet Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE Supports PoE power budget up to 120 watts (external DC power input) Supports PoE power up to 30 watts for each PoE port (external DC power input) Auto detects remote PD
Power Input • 44~ 56V DC
Cabling • Ethernet: 10BASE-T: 2-pair UTP Cat.3, 4 and 5 • Ethernet: 100BASE-TX: 2-pair UTP Cat.5, 5e and 6

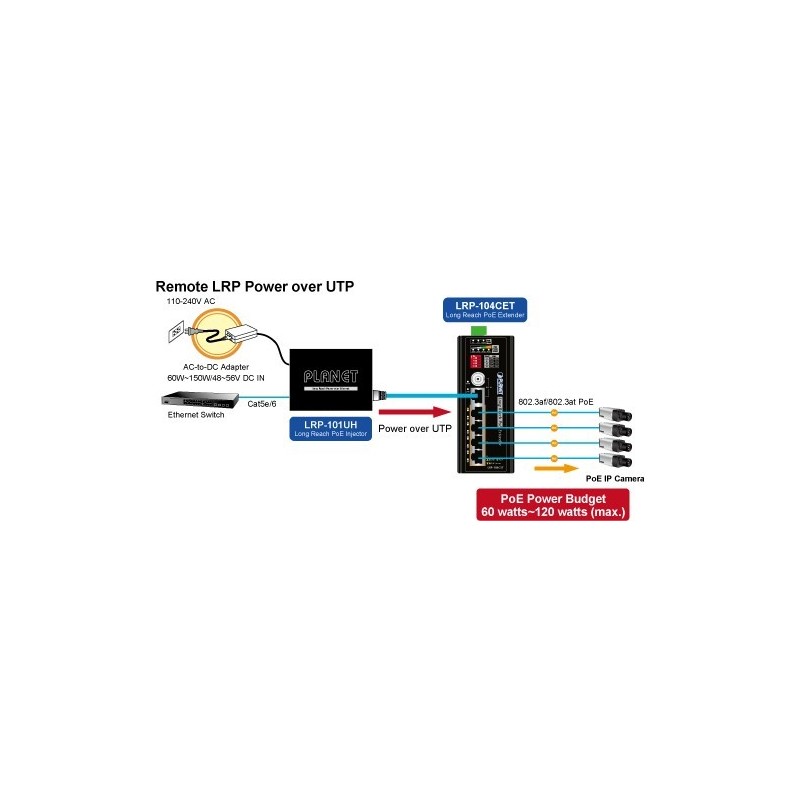

Long Reach Power over Ethernet Power and Ethernet data transmission over coaxial up to 1km Power and Ethernet data transmission over UTP up to 500m Supports Long Reach PoE power up to 25 watts (depending on LRP Injector/Switch and cable distance)
One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
