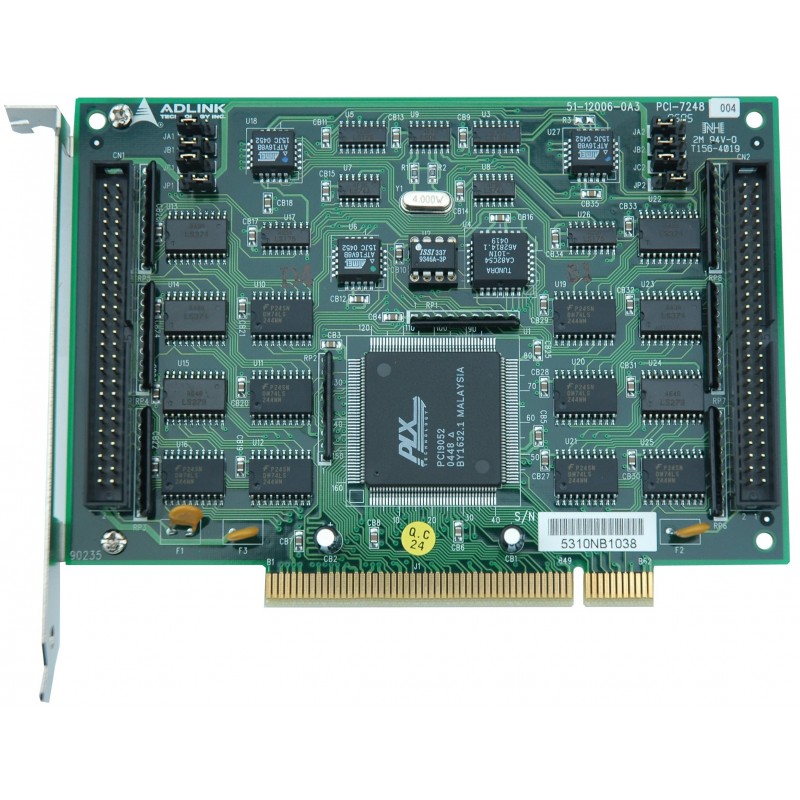

48 kanalers TTL DAQ kort, PCI Adlink PCI-7248

Supports a 32-bit 5 V PCI bus
24/48/96-CH digital TTL/DTL inputs/outputs
Emulates 4/2/1 industry standard 8255 PPI (mode 0)
Support Windows 7/8 X64/X86 and Windows 2008 R2
Output port status read back
On board 8254 timer/counter chip
Programmable interrupt source
12V and 5V power supply to OPTO-22 (Direct interface with OPTO-22)

2 735  DKK
Eksklusive MVA
På vei inn

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

DIO48CTC-PCI (ADLINK"s PCI-7248) are high-density parallel digital I/O boards with 96/48/24 I/O channels. The header connectors are fully compatible with industry Opto-22 standard. Thus, DIO48CTC-PCI can utilize the Opto-22 external devices. The DIO48CTC-PCI devices emulate mode 0 of the industry standard 8255 programmable peripheral interface (PPI) chips. The DIO48CTC-PCI provides 2 PPI chips respectively. Each PPI offers three 8-bit ports: Port A, Port B and Port C. The Port C is divided into 2 nibble-wide (4-bit) ports. The DIO48CTC-PCI devices have programmable timer/counters. One 16-bit counter is available for event counting, while the other 32-bit timer is available for timed interrupt generation. The DIO48CTC-PCI devices provide multiple programmable interrupt sources from DIO channels, as well as the output of the timer.

121 x 168 mm
48 programmerbare TTL I/O kanaler
Drivere til Windows 2000, XP, Win7 og Win8 Labview og Linux medfølger
2 x 50-polet IDC
Tæller indgang
3 stk med 2 MHz clock eller ekstern trigger
