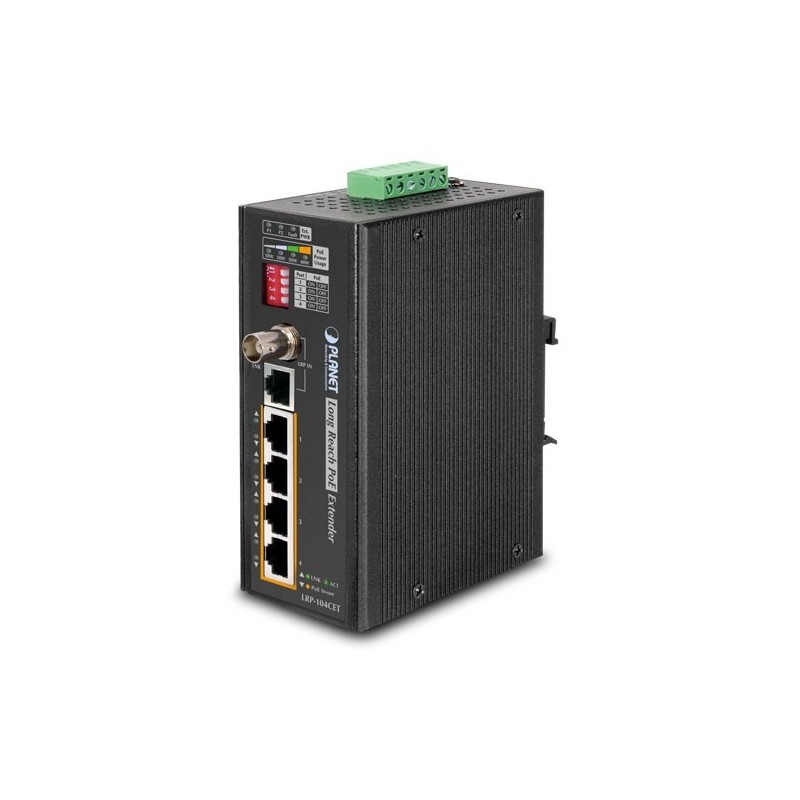

Ethernet 10/100Mbit over 75 ohm coax kabel eller UTP-kabel. VDSL. Med 4-portene switch. Opp til 1 km. PoE over kabelen

Ethernet over Coax eller UTP-kabel
kan drives med PoE fra PoE-bryteren
kan drives med PoE fra Injektor
4 x 10 / 100Mbit med PoE (Power Budget er 20W)
1 X RJ45 Poe Long Reach
1 x BNC-port til Long Reach Coax
PoE og Ethernet-data via COAX opp til 1km

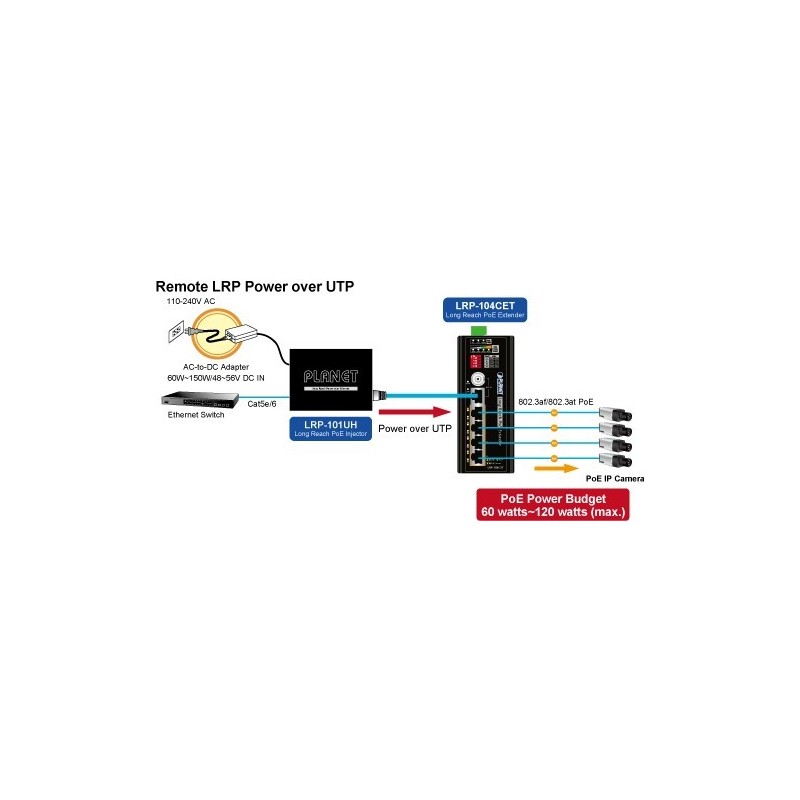

PoE og Ethernet-data via nettverk opp til 500m
Supply 44-56V DC eller POE Fra bryter / injektor
for veggmontering eller DIN-skinne
Mål: 135 x 87,8 x 56 mm
driftstemperatur -20 til + 70 °

ETH-VDSL2IP
5 497  DKK
Eksklusive MVA
Antall
På vei inn

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
Alarm
One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Data
Long Reach Power over Ethernet Power and Ethernet data transmission over coaxial up to 1km Power and Ethernet data transmission over UTP up to 500m Supports Long Reach PoE power up to 25 watts (depending on LRP Injector/Switch and cable distance)
Dimensioner
135 x 87.8 x 56 mm
Driftstemperatur
-20~70 ° C
Forsyning
44~56V DC power over coaxial input DC 24~48V, redundant power with polarity reverses protection function
Input
Power Input • 44~ 56V DC
Kabler
Cabling • Ethernet: 10BASE-T: 2-pair UTP Cat.3, 4 and 5 • Ethernet: 100BASE-TX: 2-pair UTP Cat.5, 5e and 6
Montering
DIN rail kit and wall-mount kit
PoE
Power over Ethernet Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE Supports PoE power budget up to 120 watts (external DC power input) Supports PoE power up to 30 watts for each PoE port (external DC power input) Auto detects remote PD
Porte
LRP interfaces - 1 BNC female, Long Reach PoE over Coaxial PD - 1 RJ45 connector, Long Reach PoE over UTP PD Copper interfaces - 4 10/100BASE-TX RJ45 ports with IEEE 802.3at PoE Plus PSE
Standarder
IEEE 802.3 Ethernet/10BASE-T IEEE 802.3u Fast Ethernet/100BASE-TX IEEE 802.3x Full-Duplex Flow Control IEEE 802.3at Power over Ethernet Plus
