Adlink LPCIE-7250. 8 kanals relæ output, 8 isolerede digitale input, PCI Express, Low Profile

X1 PCI Express Interface
8-CH SPDT relay, non latching
8-CH isolated digital inputs
On-board LED indicators for relay status
On-board relay driving circuits
Relay output status read back

3 056  DKK
Exkl. moms
På vägen in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

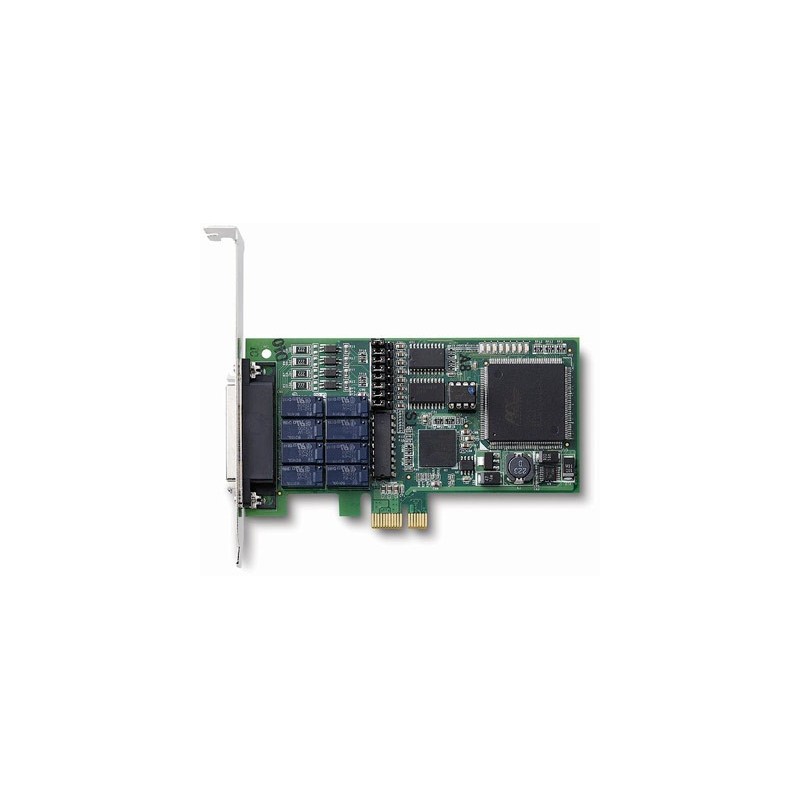

REL8OPT8PCI-LE (ICPDAS LPCIe-7250) provides 8-CH SPDT (Form C) relay outputs and 8-CH isolated digital inputs. The status of each relay output is represented by an onboard LED. When the relay is in SET condition, its corresponding LED will turn ON, and on the contrary, it is OFF. All digital input chanenels are non-polarity, optically isolated, and may be set to use RC filter or not. The devices are suitable for collecting digital inputs in noisy environments.

107 x 162 mm
8 optoisolerede (PC814). Begge ledere er ført ud for hver indgang ndgangsniveau: Ikke polariseret Logisk 0: 0 – 1,5 VDC Logisk 1: 5 – 24 VDC
2.500 VDC
Drivere til DOS, Windows 2000, XP, Win7 og Win8 Linux og Labview medfølger
miniDB50 m/klemmer
8 relæer, 4 slutte (form A), 4 skifte (form C) Belastning: 120 VAC/DC 0,5 A / 24 VDC 1 A Skiftetid: Typisk 8 ms
