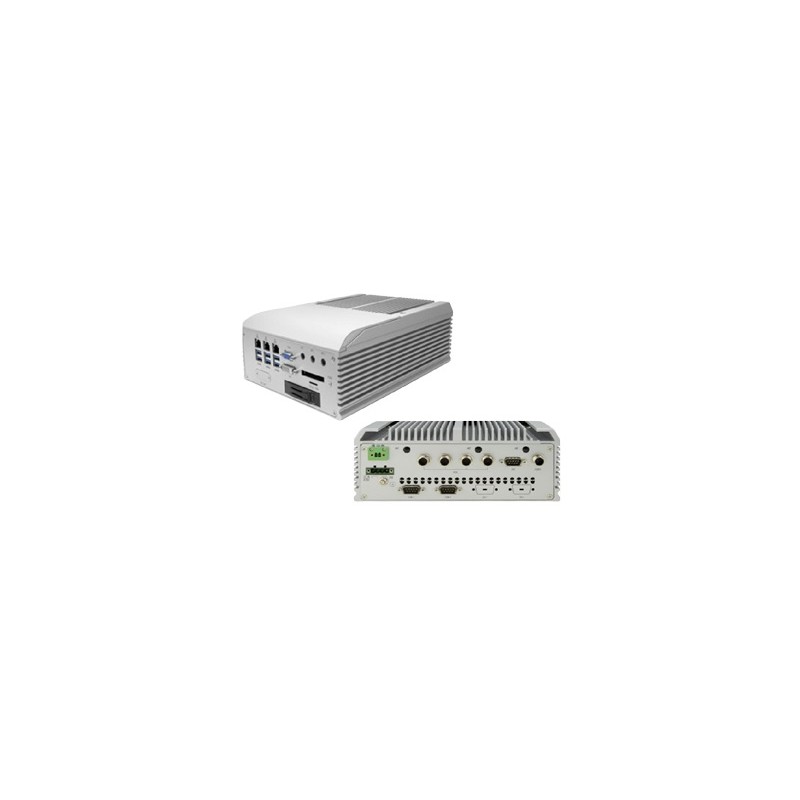

I Vehicle PC er godkjent for bruk i aotomotive bransjen, med Gen. 6 CPU i3 / i5 / i7 eller Xeon

Vifteløs design
2 * RS-232/422/485 og 8-bit isolert DIO
4 x 802.3af Gigabit PoE-porter av M12
RTC batteriets vinduer Support
3 x mPCIe spor for valgfritt WiFi / BT / 3G / 4G / GPS moduler
1 x M.2 (NGFF) B-Key (2242) socket for valgfri LTE Modul
3 x SIM-kortkontaktene
2 x reservert DB9 kontakter (CN1 / 2) for valgfri serieporter eller CAN BUSWide
ange likestrøminngangen (9 ~ 36V)
bredt temperaturområde fra -40 ° C til + 85 ° C

IPC-AUTO-F
Ring +45 56 66 20 20 for pris
Antall
På vei inn

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

et bredt utvalg av industrielle og In-Veivhel PCer. Dette er en av våre nyere modeller bsseret på 6.gen Intel-prosessor.
kan tilby skreddersydde, slik at tilførsel av CPU, RAM SS og OS installert klar til bruk.

Ta kontakt med vår salgsavdeling for mer informasjon .

CPU
Intel® Xeon® E3/6th &7th generation Core™i7/i5/i3, processor in LGA1151 socket
Antenne
6 x SMA-female connectors’ holes for external antennas
Arbejdstemperatur
-40 ~ 70°C, ambient w/ air flow, EN50155 ClassTX, w/ 35W TDP CPU (CPU throttling may be happened while it run full loaded, CPU power can be configured under BIOS to achieved higher operating temperature)
Audio
Mic-in/Line-out
Approval
CE/FCC Class A, E13 Mark
Chipset
Chipset Intel® C236
Chok/Vibration
IEC61373 Category1, Class B
Digital I/O
8-bit digital I/O, 4-in/4-out w/ 1*DB-9 male connector, 2KV isolated protection, rear side
Dimensioner
225(W) x 267 (D) x 90 (H) mm
Ethernet
1 x Intel® i219LM PCIe controller w/ iAMT 11.0 (except i3) 2 x Intel® WGI211AT GbE controllers 4 x Intel® WGI211IT GbE controllers for PoE
Grafik
Integrated Intel® HD Graphics
Grafikudgang
1 x DB-15 female connector for Analog RGB, Max. resolution : 1920 x 1080 @ 60Hz 1 x DVI-D female connector for digital video output, Max. resolution : 1920 x 1080 @ 60Hz
M.2
1 x M.2 (NGFF) B-Key(2242) socket interconnected with SIM card socket for optional LTE module
Sammensetninger
Aluminum alloy
Montering
Support Wall-mount
mPCIe
2 x mini-PCI Express Slots interconnected with SIM card sockets for optional WiFi/BT/3G/LTE/GPS (PCIex1+USB2.0, Full Size) 1 x mini-PCI Express slot for optional WiFi/BT/GPS (PCIex1+USB2.0, Half Size)
OS SUPPORT
Windows 10 IOT (For 6th/7th Gen Intel CPU) Windows 7 / Windows 8.1 (For 6th Gen Intel CPU) Linux (Kernal 4.x )
SATA-interface
3 x Serial ATA port with 600MB/s HDD transfer rate
Spændingsforsyning
DC 9~36V input ( w/ 4-pin DV input terminal block,combining remote power on/off switch
Storage
1 x CFast socket, can be outside accessible 1 x external 2.5” SATA3 6Gb/s Drive Bay 1 x internal 2.5” SATA3 6Gb/s Drive Bay
Strømforbrug
Max. 120W (w/o I/O card)
System Memory
2 x 260-pin DDR4 SO-DIMM sockets, supporting 400 MHz SDRAM up to 32GB
Tilslutning
3 x RJ-45 ports for GbE, front side 4 x M12-female 8P connector, IP67 for GbE, A-coded, rear side
USB
6 x USB 3.0 ports, front side
Weight
6.5Kg
Watchdog
1~255 levels reset
