Plintkort med 37 skruvplintar, DB37 hona, DIN-montering
Plintkort med skruvplintar
DB37 hane / hanekabel på 1,8 m ingår.
För DIN-skena montering
103 x 85 x 50 mm (B x L)
Support a 32-bit 3.3 V or 5 V PCI bus
32-CH TTL digital inputs and 32-CH TTL digital outputs
Up to 12 MB/s transfer rate
Bus mastering DMA for both digital inputs and outputs
On-board programmable timer pacer clock
Supports hanedshaking digital I/O transfer mode
Multiple programmable interrupt sources
Compact, low-profile PCI size PCB

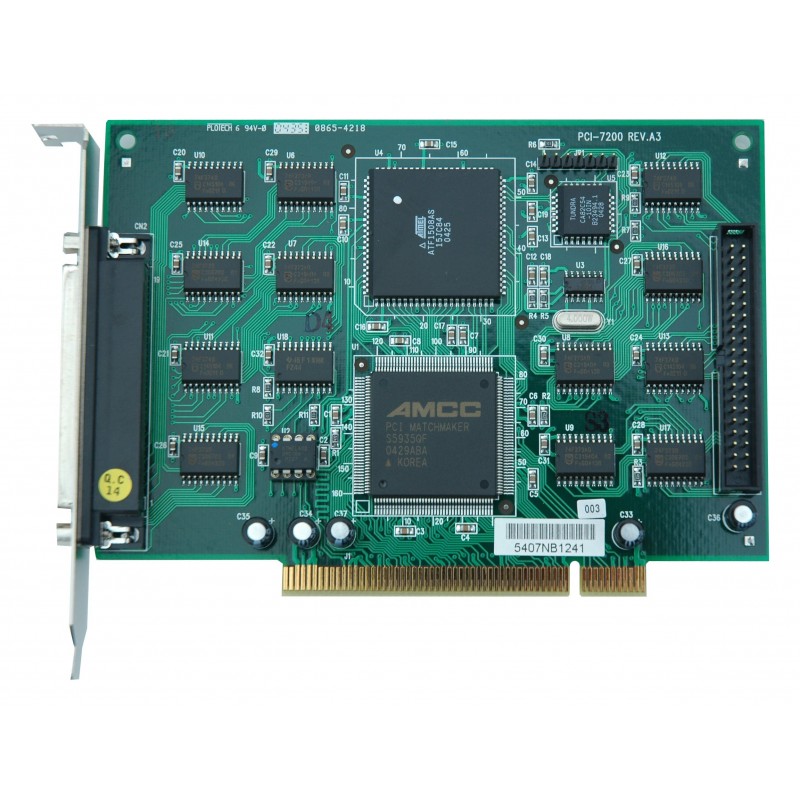

DI32O32PCI (ADLINK LPCI-7200) is a high-speed digital I/O card. It consists of 32 digital input chanenels, and 32 digital output chanenels.
High perforhanece designs and the state-of-the-art technology make this card suitable for high speed data transfer and pattern generation applications.
DI32O32PCI performs high-speed data transfers using bus-mastering DMA via 32-bit PCI bus architecture. The maximum data transfer rates can be up to 12 MB per second. Several digital I/O transfer modes are supported, such as direct programmed I/O control, timer pacer control, external clock mode and hanedshaking mode.
It is very suitable for interfacing high-speed peripherals with your computer system. DI32O32PCI supports 3.3 V and 5 V PCI bus with low-profile PCI size. It occupies less space and thus is ideal for book-size computers.
Plintkort med skruvplintar
DB37 hane / hanekabel på 1,8 m ingår.
För DIN-skena montering
103 x 85 x 50 mm (B x L)
med tillståndsdetektor på alla 32 ingångar
Optoisulerade ingångar - 2,5 kV - Gemensam ram
Logik: Låg 0-3,2VDC, High: 3.5 - 24VDC
16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,
Supports a 32-bit 5 V PCI bus - LOW PROFILE CARD
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output
Antal af ind- og udgange kan udvides til 32
Supports a 32-bit 5 V PCI bus
8-CH relay outputs
8-CH isolated DI
On-board LED indicators for relay status
On-board relay driving circuits
Relay output stats read back
On-board low-pass filtering for DI
Extendable up to 32-CH relay outputs
Support a 32-bit 3.3 V or 5 V PCI bus (LPCI-7200S)
32-CH TTL digital inputs and 32-CH TTL digital outputs
Up to 12 MB/s transfer rate
Bus mastering DMA for both digital inputs and outputs
On-board programmable timer pacer clock
Supports hanedshaking digital I/O transfer mode
Multiple programmable interrupt sources
Compact, low-profile PCI size PCB
