Button Integrated Panel PC

Button Integrated Panel PC

Button Integrated Panel PC
There are 2 products.

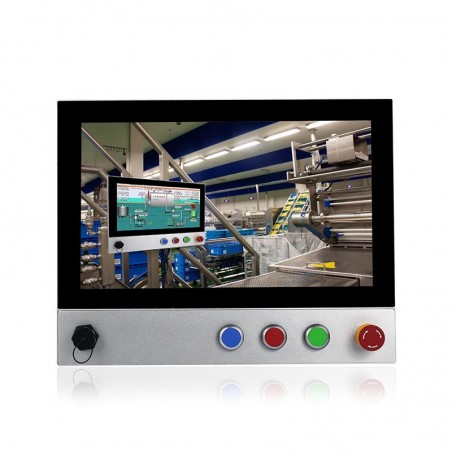

High-performance Panel PC with 15.6" touch screen IP65 full, Intel 8th Gen i3-8145U, 2.1GHz

15.5" TFT LED Touch screen Display
Screen resolution of 1920 x 1080
Brightness 600 cd/m²
Multi PCAP touch
Intel Core i3-8145U 2.1 GHz
4GB DDR4L RAM, expandable to 32GB
HDMI, DisplayPort
2 x LAN I211-AT GbE LAN
4 x USB 3.0
IDEC switch Start/Reset/Key/Stop switch (optional)
IP65-full: Water and dust resistant
OS - supports: Windows 7/8/10, Linux, Unix, QNX
Optional: WiFi and Bluetooth
Robust construction
Operating temperatures from -10 to +70°C
External I/O switch
Dimensions: 400 x 315 x 130 mm
Weight: 16kg
Supply voltage: 9-36VDC
Power consumption: <35W

Call +45 56 66 20 20 for price
Item number IPP15.6-KNAP-IX
On the way in

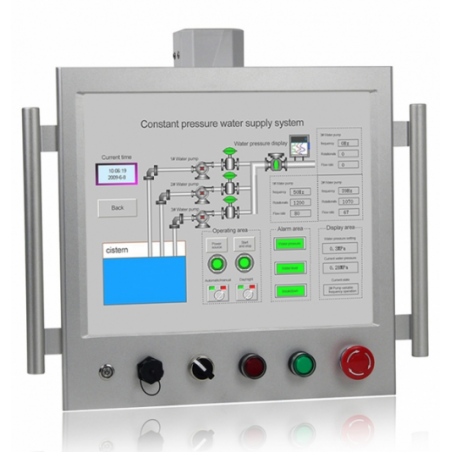

Robust 17" HMI, Panel PC with touch screen IP65 with control buttons and power switch on the front

17" TFT LED Touch screen Display
Screen resolution of 1280 x 1024
Brightness 400 cd/m²
Resistive touch
Intel Celeron Quad Core, 2.0 GHz
4GB DDR3L RAM, expandable to 8GB
VGA, HDMI
1 x LAN Intel 82583V 1000Mbps
3 x USB 2.0, 1 x USB 3.0
1 x COM port
IDEC switch Start/Select/Reset/Key/Stop switch (optional)
IP65 rated water and dust resistant
OS - supports: Windows 7/8/10, Linux, Unix, QNX
Optional: WiFi and Bluetooth
Robust construction
Operating temperatures from -10 to +60°C
External I/O switch
Dimensions: 400 x 390 x 155 mm
Supply voltage: 12-24VDC
Purchase extended supply voltage +9V-36V

Call +45 56 66 20 20 for price
Item number IPP17-KNAP-CEL
On the way in
Showing 1-2 of 2 item(s)
