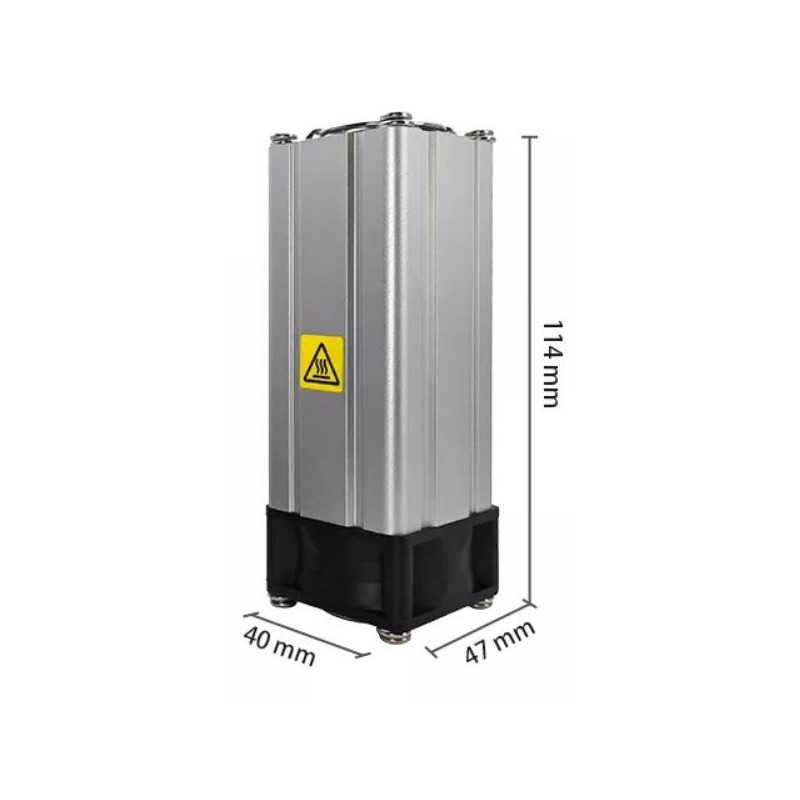

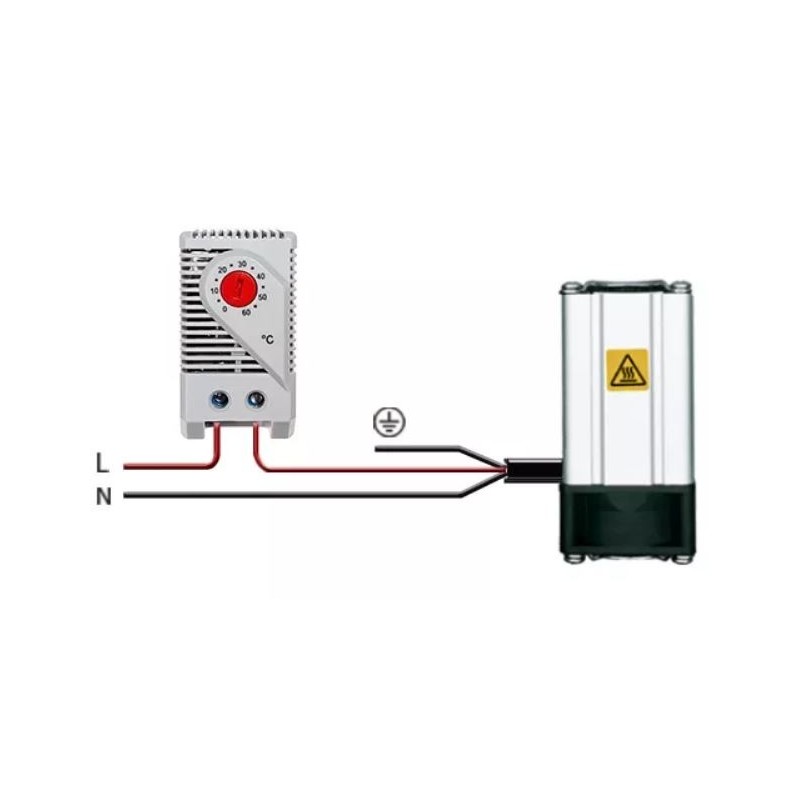

200 Watt PTC heating element with fan. DIN bracket. 24 Vdc. Temperature limiter. Connect thermostat control

24Vdc supply
Power 200 Watt PTC
-45 to 70℃
IP20 classification
40x47x114mm
DIN assembly 35mm
Max. 90% humidity
DELIVERED WITHOUT THERMOSTAT! Must be ordered alongside.

FAN-HEAT200W-24VDC
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

4 other products in the same category:

3U fan module for 19" rack....

3U fan module for 19" rack. With 3 x 230VAC FAN. The module blows air into the rack. Replaceable front intake filter.

Black 3U fan module for 19" rack
With 3 x FAN
ON/OFF switch on the front
Blows air into the rack cabinet

Fan speed 2100-2300 rpm

Blower noise 33/35dBA

Fan dimensions 120x120x25

Max. air flow 55/63CFM

Uses AC and 0.08 A

For 230VAC - mains cable (IEC) included
Replaceable filter.
Filter is inserted

Steel house

Price 2,020.00 DKK
Product code: S-IND19"FAN3IN
On the way in
Quick view
Mechanical Bimetal Kabinet...

Mechanical Bimetal Kabinet termostat, 0 → +60 °C, NC (normally Closed), DIN, AC250V 50-60Hz,

Compact design
Wide adjustment range
DIN Rail mountable 35mm
Thermostat 0 to 60 °C
Snap-Action Contact
Housing plastic, UL 94V-0, light gray
Max. inrush current AC 16 A for 10 seconds
Max. switching capacity NC: 10 A resistive / 2 A inductive @ AC 250 V, NO: 5A resistive / 2A inductive@250V 15A resistive/2A inductive@AC120V DC30W(DC24-72V)
IP20
Dimensions 60 x 33 x 43

Price 170.00 DKK
Product code: REL-TEMP-NC
Physically in stock
Quick view
