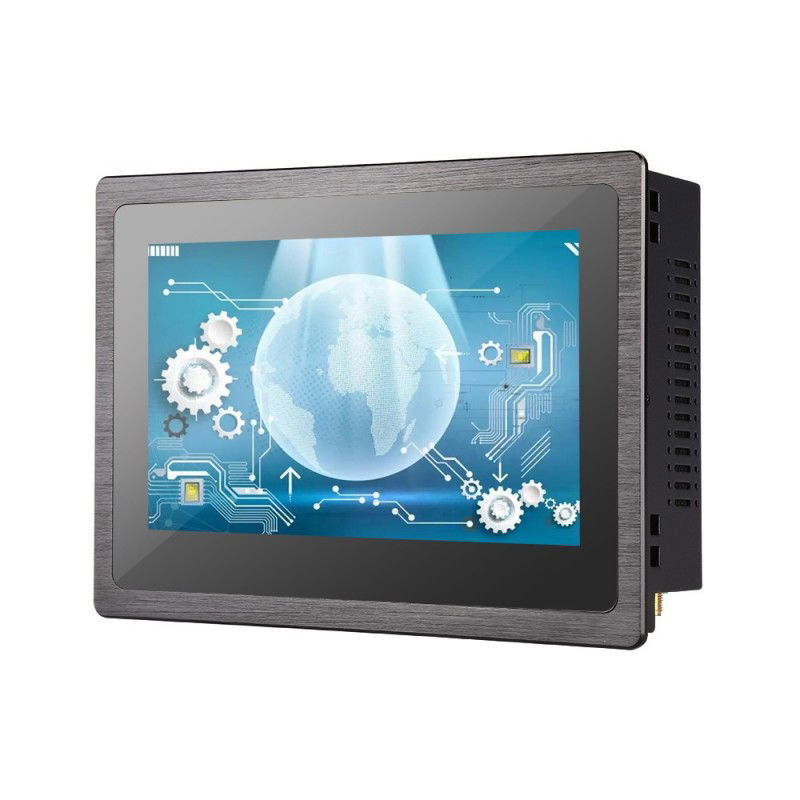

7" Panel PC I5 (optional i3/i7) 2x LAN, 3xUSB, 1xHDMI, 1xVGA, 2xRS232, Mini-PCIe (Wifi/3G/4G/MSTA/GPS)

7" capacitive touch, 1280*800 resolution, 16:10, 800cd/㎡, 500:1 Contrast
NXP i.MX 8M Mini Cortex®-A53 1.6 GHz Quad-core processor
2 GB DDR RAM (4 GB is Option)
ROM 16 GB (64 GB is Option)
Ethernet 1x RJ45 1000M (PoE is Option) 1x RJ45 100M
RS232×4 (Option 2x RS232, 2x RS485)
Micro SD card max. 512GB
2 x USB OTG, earphone jack
1 x USB Type-C
WIFI, Bluetooth, SIM slot
Panel mounting, VESA 75
Operating temperature: -20°C~60°C
FCC/CE
OS Support: Linux Debian 10 (Option: Android 9.0)
Option: 3G/4G
DC 8 - 36V 12.5W
206mm×144mm×31mm

Panel PC 7 "
Intel Atom
resolution 1024 x 600 high resolution LCD panel on an industrial quality at 2 X RS232 (1 can be selected for RS422 / 485)
2 x USB
IP65 front
projective capacitive touchscreen
Onboard Intel® Atom ™ -behandler E3815 (E3827 and E3845 optional)
Standard 2GB DDR3L memory, up to 8GB
2.5 "SSD space < br> 12V DC power input
panel mount and VESA 50x50, 75x75 mm | Option: WiFi / BT
OS support: Windows 8 32/64 bit, Windows 7 Pro for Embedded 64 bit, 64 bit WES7 < ! - cke_protected {} {}% C 3 C!% 2D 2D%%% 20p 2D 2D% 3E% ->

IP66 close to all surfaces (Full IP66) - waterproof connector.
CPU ARM Quad Core RK3399, Main CPU
RAM DDR3, 2GB
8GB
Storage USB 2.0 Host
With Android 7.1
I / O Serial Ports 1 x COM (optional)
USB Ports 1 x USB 2.0 (Waterproof Connector and Cable)
Power Port 1 x 12V DC Jack (Waterproof Connector and Cable)
HDMI Output 1 x HDMI (Waterproof connector and Cable)
LAN 1 x 10 / 100Mbps Ethernet (Waterproof connector and Cable)
WIFI Built-in 802.11a / b / g / h (antenna connector not applied )
pcap touch
Steel housing with VESA 75 and 100
Dimensions: 570 x 350 x 70mm

10" Industrial Panel PC
OS: Android 10
Rockchip RK3288 Cortex®-A17 Quad-core 1.8GHz processor
Resolution: 1280 x 800 (16:10)
Viewing angle: 170°/170°
Light sensor (automatic dimming)
10.1" IPS screen with 1000 nits brightness and capacitive touch
1 x RJ45 Gigabit Ethernet
4 x GPIO (2 inputs, 2 outputs)
3 x RS232 (via DB9 octopus cable)
1 x HDMI output
2 x USB-A host
1 x USB-C OTG
3.5mm audio output
Memory: 2GB LPDDR3 + 16GB eMMC, Option: 4GB + 64GB
Supply voltage: 9~36VDC (mains adapter not included)
Operating temperature: -10° ~ +60°C
Dimensions: 249 × 166 × 32mm
Weight: 980g
