4 port HDMI 4K60Hz splitter, HDMI2.0, HDCP2.2, EDID
4 port HDMI 4K60Hz splitter, HDMI2.0, HDCP2.2, EDID

4 port HDMI 4K60Hz splitter, HDMI2.0, HDCP2.2, EDID management, DC12V

4k@60Hz 4:4:4 HDMI splitter - duplicate one video input to multiple HDMI outputs
Same image on all outputs
Automatic power saving when signal input is lost
The cascaded operation for increased signal output
HDMI resolutions up to (1920 x 1200), Full HD 1080p (1920 x 1080), 4K 60Hz
HDMI 2.0, HDCP 2.2 compliant and Blu-ray ready for high definition display
EDID Copy & EDID auto-learning support
EDID mixing - port dependent setup
Dimensions: 156 x 65 x 20 mm
Weight: 305 g
Supply voltage: 12VDC PSU included

990.00 kr
Excl. VAT
Quantity
Physically in stock
ADD TO CART
Product number HDMI4MULTI4K60
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

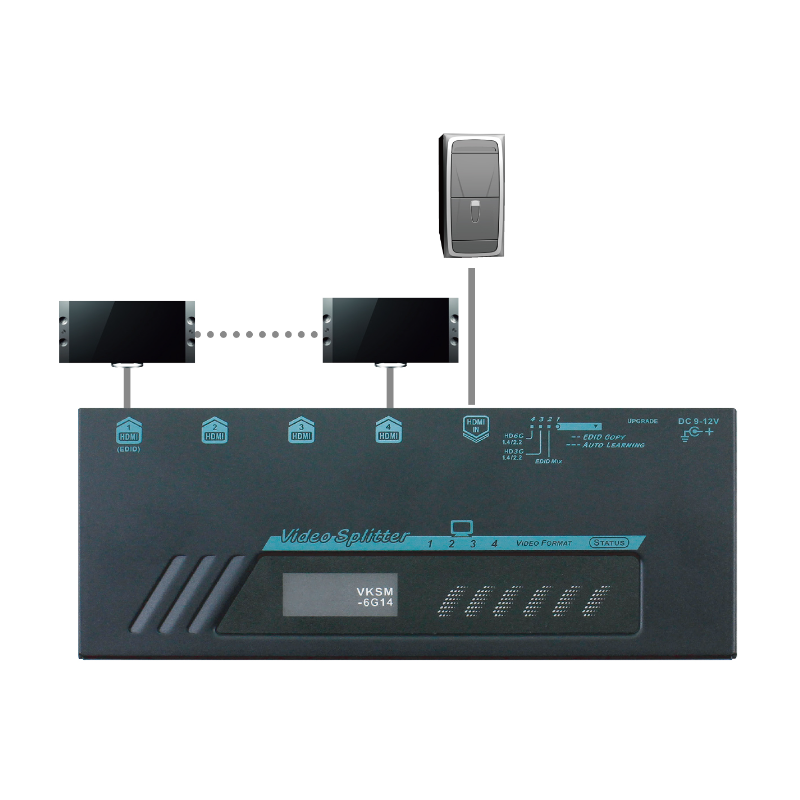

True 4K HDMI Video Splitter, distributes HDMI video out to 4 TVs/projectors
EDID Auto Learning and EDID Copy functions enable the 4 Ports 4K HDMI Splitter to either read the required EDID information
from the splitter itself or copying the EDID from the EDID compatible monitor which ensures the accurate output display.
EDID Mixing Function applies to HDMI Splitter with multiple video outputs. The device collects EDIDs from connected displays and mixes those EDIDs, then forms an EDID with better compatibility and usability data that can be applied to all connected displays so that all connected displays could work well.
