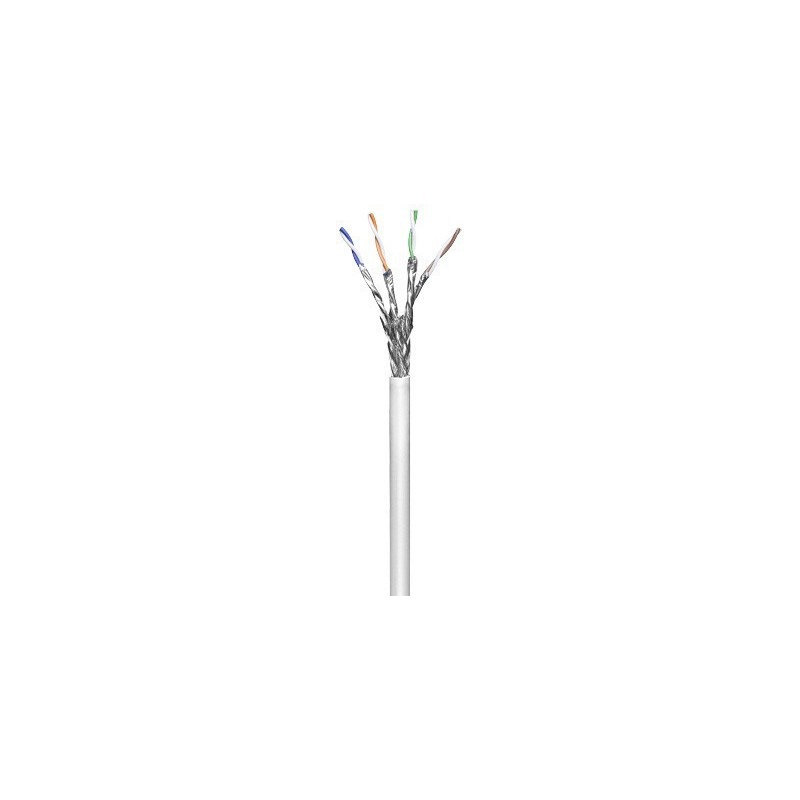

Screened Cat. 6 S / STP Cable on reel
cable with soft core
RJ45 can be terminated on the cable
500 meters on roll
Categori 6 S-common STP network / PDS cable on the reel.
Bandwidth: 250 MHz. The cable is double-shielded (braid shield) with shielded, twisted pair conductors in (film) that protects against high frequency interference.
This cable is used as a normal network cable with RJ45 network connector at the end, but can not be used for building installations network wall sockets at the end.
Rulle med 100 meter. Til installation - diam. ca. 0,6 cm, uskærmet. Solid Core
Cat. 6a cable on ree
s/ftp (pimf)
lszh
copper
6.3 mm round cable
100 Ω
500 MHz
Gray
305 meters
Cat. 6 UTP
250MHz
Solid core
Single mantle
305 meters
CAT 6
Shielding class S/FTP (PiMF)
Number of shieldings 2 x Type 1, shielding Type 2, shielding
AWG 23/1 (solid)
Inner conductor material Material cable sheath Cable sheath diameter (approx.) 6.3 mm
Fire class (CPR) Eca
Cable length 305 m
Signal transmission usable up to cable length 40 m
max. bandwidth 250 MHz
Impedance 100 Ω
