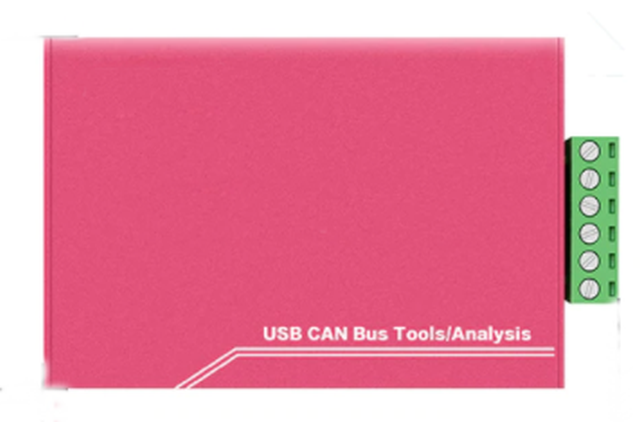

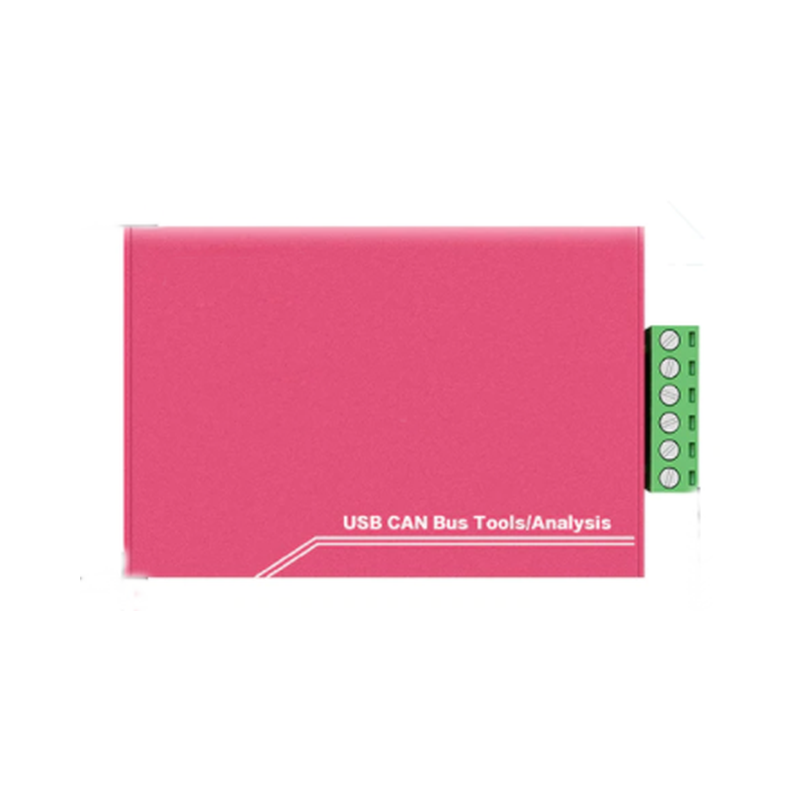

CAN bus analyzer 2 channels for USB. CAN 2.0A, CAN 2.0B, 5Kbps - 1Mbps. Tester to CAN bus network and devices

CAN Bus to USB Tester
Interface: Open 6

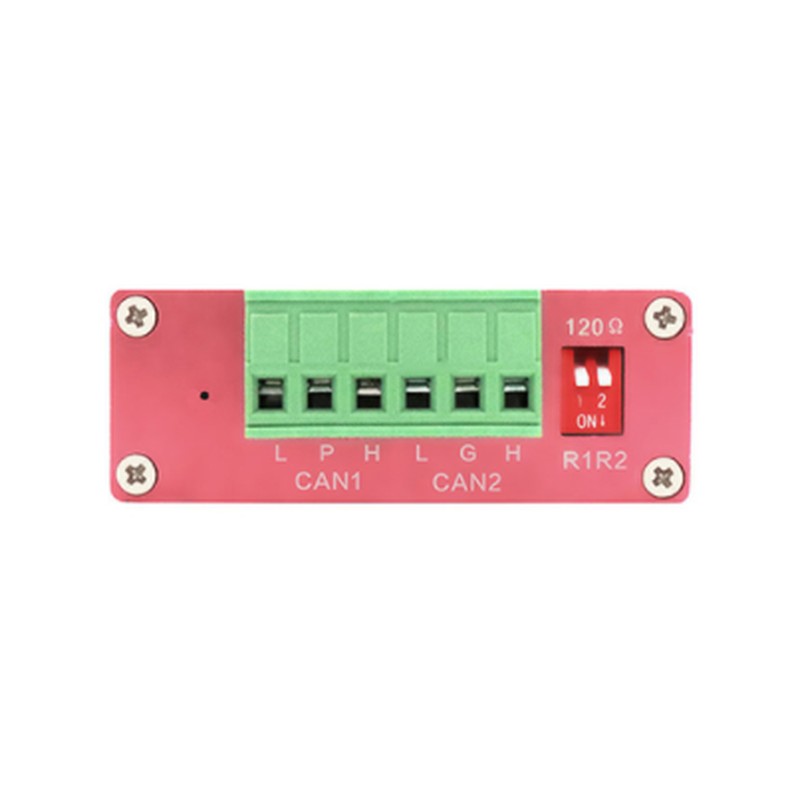

2 x CAN Channels
CAN Standard: ISO 11898, Can 2.0a, Can2.0b
CAN Baudrate: 5K - 1Mbps and most widely used Baud Rate
Isolation: 1500V
USB: 1.1, 2.0
Support Software: _CAN Tools, CAN Test, CAN Pro.
Operating System: Windows 2000 / XP / 2003/7/8/10
Supports VC, VB, C #, LabVIEW, LabWindows, Delphi7 OA
Operating temperature: -40 - + 85 ℃
Measure: 103 x 64 x 23 mm

CAN-USB-2PRO
2,885.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

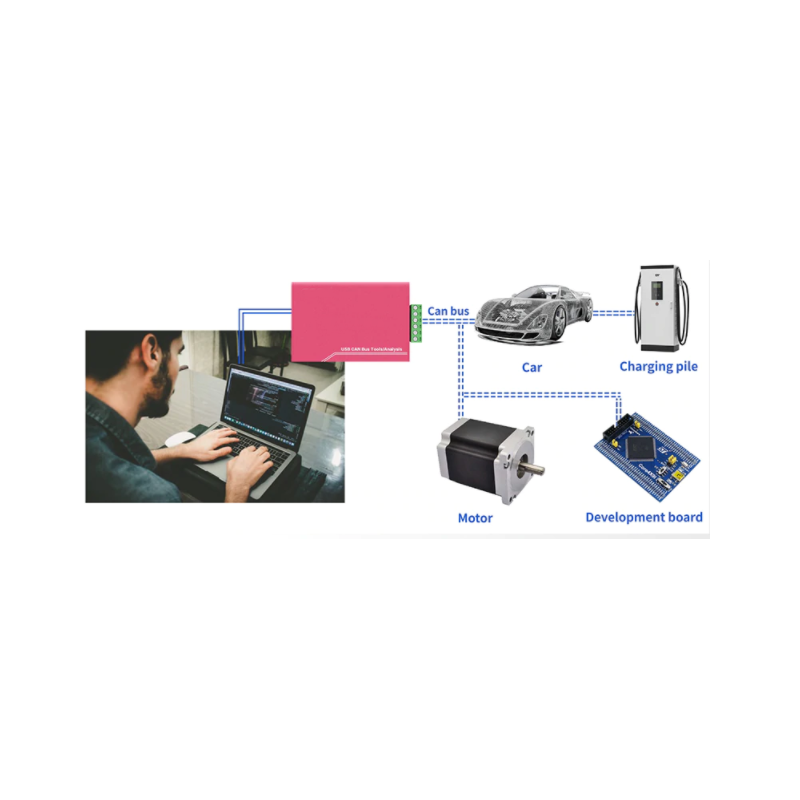

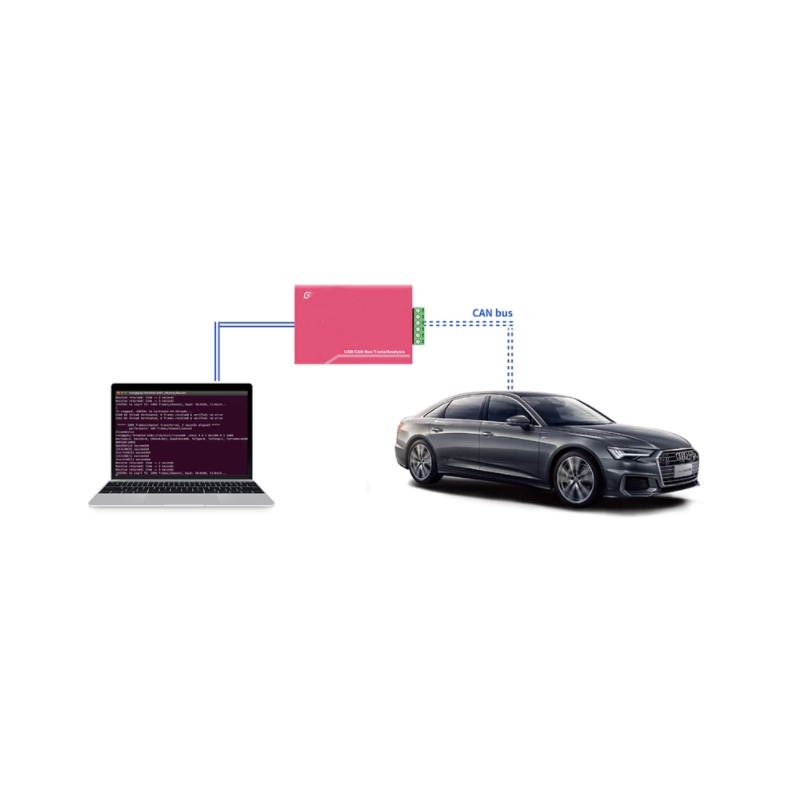

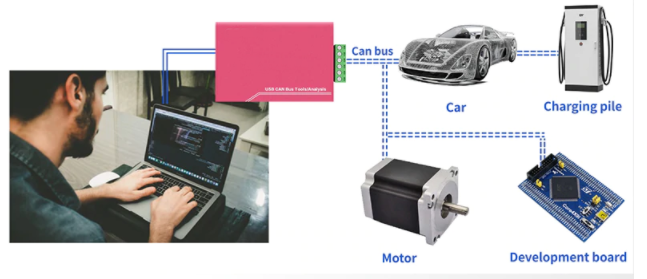

CAN USB-2PRO can be used to develop, test, manage and maintain CAN networks, register, send and receive and analyze CAN bus data. At the same time, the unit is compact, robust and is plug and play. Is also the best choice for users of portable systems.
Can-USB-2Pro Compared to the single channel equipment added a completely independent CAN channel analysis that makes it possible to use some single channel devices that do not have the function, such as monitoring two can- Bus, intelligent can relay, offline. 5VDC The power supply interface can provide offline and offline CAN relay mode for power supply in the industrial area.
Feature:
Automatic Baudrate Identification
Smart Relay Mode
Smart Offline Mode
Intelligent Filtering
Advanced Shielding function
Error frame display and bus status view
Divertification of data transmission
display of data classification
Data storage
protocol analysis
trigger settings
data playback, offline playback
Graphic display function
