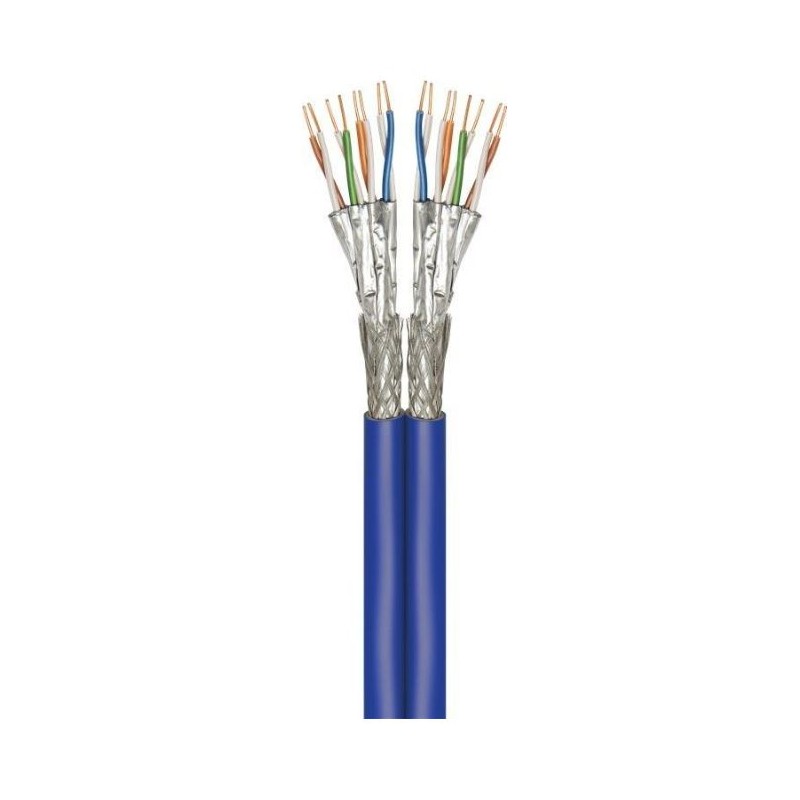

Cat 7A 500m Duplex-RJ45 S/FTP Network Cable, Blue CU, AWG 22/1 LSZH
Cat 7A 500m Duplex-RJ45 S/FTP Network Cable, Blue CU, AWG 22/1 LSZH
Cat 7A 500m Duplex-RJ45 S/FTP Network Cable, Blue CU, AWG 22/1 LSZH
Previous
Next
Cat 7A 500m Duplex-RJ45 S/FTP Network Cable, Blue CU, AWG 22/1 LSZH
Cat 7A 500m Duplex-RJ45 S/FTP Network Cable, Blue CU, AWG 22/1 LSZH
Cat 7A 500m Duplex-RJ45 S/FTP Network Cable, Blue CU, AWG 22/1 LSZH

CAT 7A 500 meters Duplex-RJ45 network cable, S/FTP, blue CU, AWG 22/1, LSZH 500M

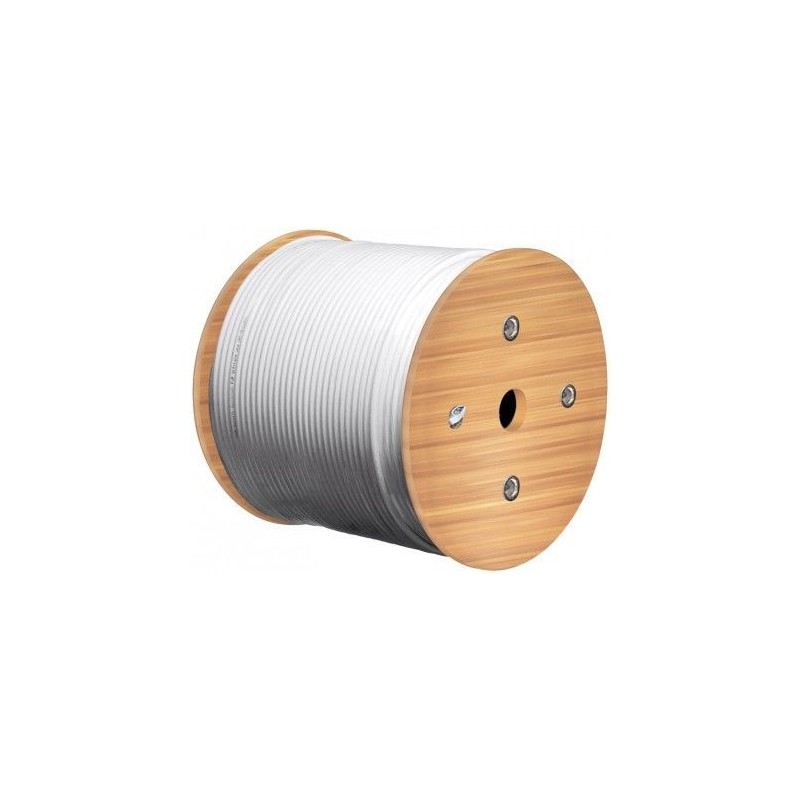

RJ45 Cable Cat.7 + on drum 500 Meters
LSA connection technology
For indoor use
Applications: up to class F (A) 1200 MHz
double shielded twisted pair LAN cable
pair screening: PIMF (pair in metal foil) + outer shield: braids
Power over Ethernet (PoE / PoE +)

6,919.00 kr
Excl. VAT
Quantity
Physically in stock
ADD TO CART
Product number K-RJ45-500MDCAT7
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Farve Blue
Kabel 500m
Length 500m
CAT Kategori Cat 7

Suitable for applications: up to class F (A) 1200 MHz Power over Ethernet (PoE / PoE +) analog / digital signals, video, Voice over IP (VoIP) IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T Int. standard ISO / IEC 11801 2nd edition, IEC 61156-5 Euro. standard: EN 50173-1 EN 50288-9-1 FRNC / LSZH = Flame Retardant Non-corrosive / Low Smoke Zero Halogen
Fire class (CPR) according to DIN EN 13501-6 B2 approx


Shielding class S/FTP (PiMF)
Specification CAT 7A+
Cable: type round cable
Cable length 500 m
Inner conductor material CU (copper)
Material cable sheath LSZH
AWG 22/1 (solid)
Meter scaling yes
Number of shieldings 2 x
Type 1, shielding foil (alu) PiMF
Type 2, shielding braid (copper)
Cable sheath diameter (approx.) 7.8 mm
height of cable sheath 7.8
width of cable sheath 16.4
LSZH compliant yes
Signal transmission
max. bandwidth 1200 MHz
Impedance 100 Ω
General
Consumption Unit 1 pc. cable reel
Outer sheath material LSZH
Color blue
Markings B2CA_CPR
