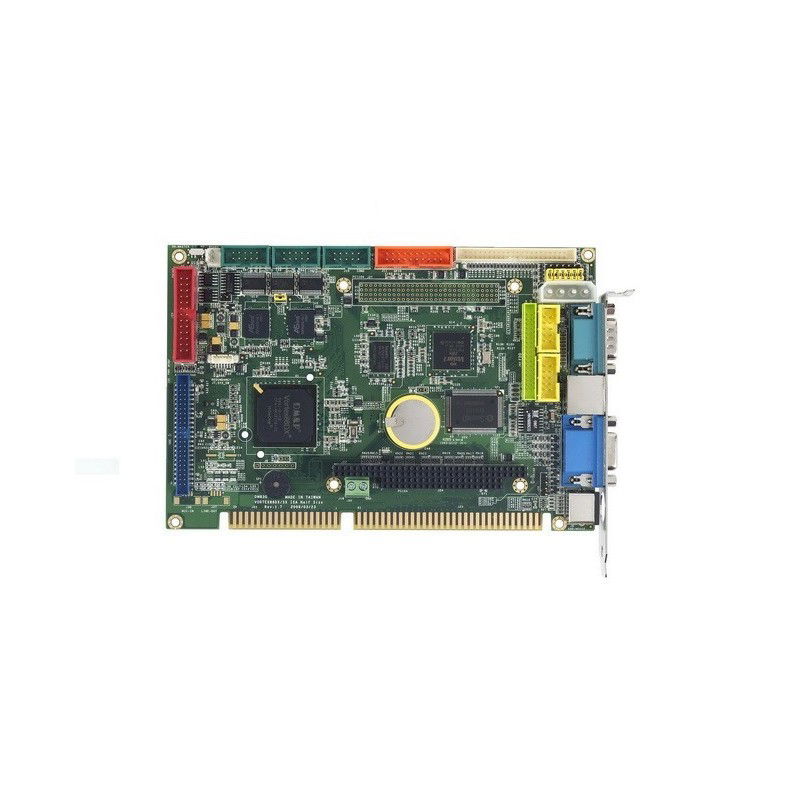

ISA CPU card 386 for DOS, WIN 98, WIN NT, WIN 2000 LPT, 3xRS232, 1 XRS232/422/485

DM&P SoC CPU Vortex86DX- 800MHz

256MB RAM Onboard

ISA BUS

Suitable for replacing older PCs that are critical in terms of software execution in terms of speed, etc.

1x LPT

4x COM

4x USB (remember cannot be used with WIN95, DOS)

10/100Mbps Ethernet on board

floppy disk support!

-20°C ~ +70°C

Supports DOS, WIN 95, WIN 98, XP, WIN 2000, XPe, CE, Linux

DOWNLOAD DRIVERS FROM DANBIT FTP Server

Log in to www.danbit.dk.

When you have the item on the screen, DOWNLOADS will be active and you can download technical information.

IX86LAN-VGA+
Call +45 56 66 20 20 for price
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

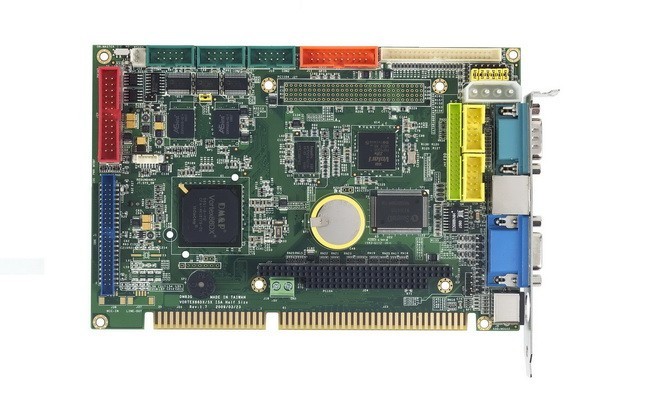

All in one CPU card with 800 MHz CPU

CPU
DM&P Vortex86DX. Monteret med 800 MHz CPU. Kan neddrosles til 100 MHz
BIOS
AMI BIOS
Digital I/O
16bit GPIO TTL
Drev
1 x UltraDMA100 IDE kanaler, 44 bens til 1 IDE enhed (1 x 2½”)
Driftstemperatur
-20o - 70o C ved 10 – 90 % ikke kondenserende luftfugtighed
Flash
Onboard 4MB SPI flash disk. Compact Flash Type II på printets underside
Grafik
XGI Volari Z9s med 32MB onboard.1 x DB15HD VGA-stik op til 1280x1024 punkters opløsning
Hukommelse
Monteret med 256MB DDR2 RAM onboard
Netværk
1 x 10/100 Mbit Ethernet m/RJ45 stik
Porte
1 x SPP/ECP/EPP bi-direktionel med DB25F-stik via bagplade
Porte
3 x RS232 (heraf en som kantmonteret stik med DB9M-stik). 1 x RS232/422/485 via bagplade. 1 x RS485 via 3 bensstik på kortet
RAID niveau
PICMG 1.0 (16 bit ISA)
Strømforsyning
Via PICMG 1.0 bussen eller via Molex stik på kortet (5Vdc, 720mA). Se kap. 19 for PSU
Tastatur/mus
2 x mini-DIN6 PS/2 via Y-splitterkabel (medfølger)
USB
4 x USB 2.0 (Hi-Speed). 2 via bagplade, 2 via BAGPL23USB8, medfølger ikke
Watchdog
Watchdog timer m/255 niveauer
