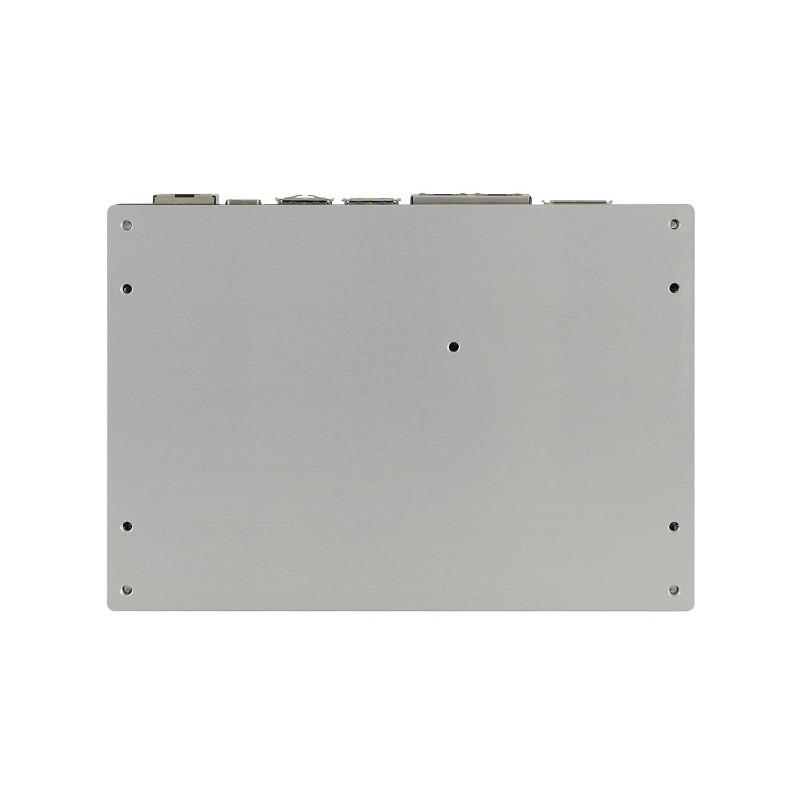

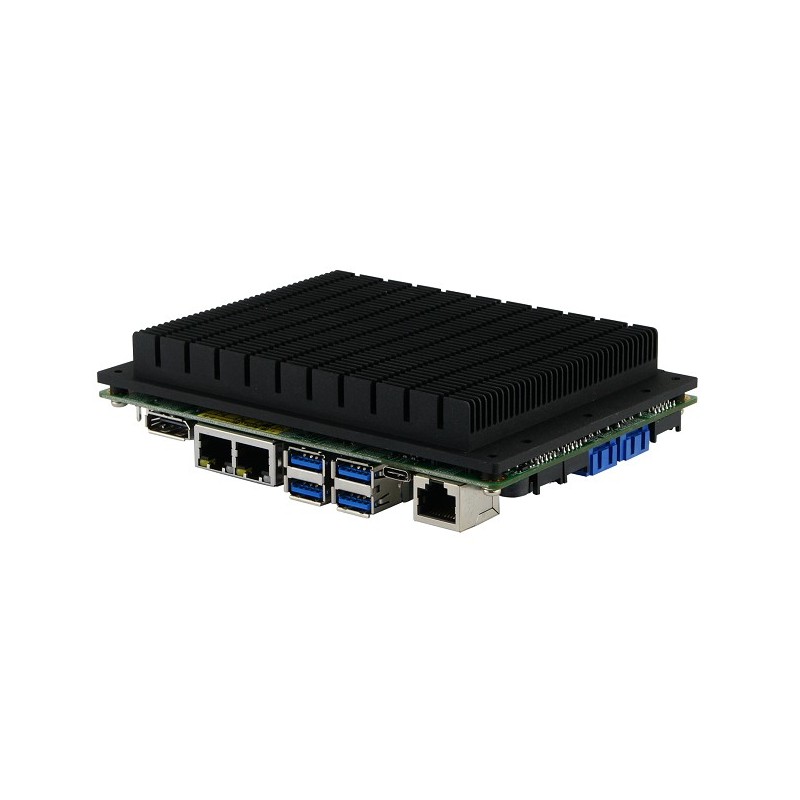

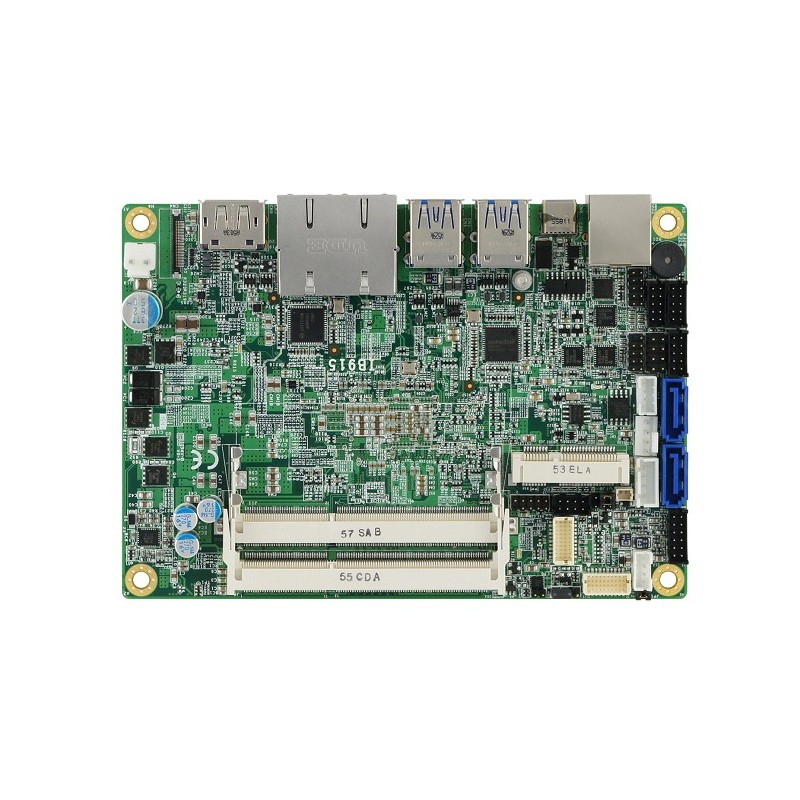

6th Gen Intel® Core ™ U-Series Processor 3.5-inch Disk Size SBC for Fanless Solution
i3 Onboard 6th Gen Intel® Core™ U-series processor 2.3GHz
2x DDR3L-1600 SO-DIMM, Max. 16GB
Supports eDP, DP and 24bit dual channel LVDS
2x Intel® PCI-E Gigabit LAN
Watchdog timer, Digital I/O, mSATA, iSMART
2x USB 2.0, 4x USB 3.0, 1x USB 3.1(Type-C), 4x COM, 2x SATAIII
1x Mini PCI-E slot
2,500.00 kr
Excl. VAT
Quantity
Physically in stock
close
Specifications
| CPU | BGA1356 for 6th Gen Intel® Core™ U-series i3 2.3GHz |
|---|---|
| USB | 4 ports USB3.0 on board 2 ports USB2.0 on via pin header |
| Operating Temp. | 0°C~60°C (32°F~140°F) |
| BIOS | AMI BIOS |
| Ethernet | 2xRJ45 Intel® I219V LAN PHY Intel® I211AT PCI-E Gigabit LAN(as 2nd LAN) |
| Forsyning | +9V~ +24V DC-in, iSMART |
| Grafik | VGA Controller 6th Gen Intel® Core™ U-series processor integrated graphics |
| Hukommelse | 2x DDR3L-1600 SO-DIMM, Max 16GB (Non-ECC) |
| I/O | Chipset Fintek F81846AD-I |
| Luftfugtighed | 90% (non-condensing @60°C) |
| Lyd | + Realtek ALC662 codec |
| mPCIe | 1x Mini PCI-E (Full-sized) |
| Msata | 1x mSATA |
| Porte | 1x RS232/422/485 (jumperless selection), 3x RS232 |
| SATA | 2x SATA III |
| Strømforbrug | Max. Power Requirement Intel® Core™ I3-6100U 2.3GHz w/ 2x DDR3L-1600 4GB +12V: 2.36A |
| Udgange | Supports eDP, DisplayPort and 24-bit dual channel LVDS |
| Watchdog | 256 levels |
| Dimensioner | 102mm x 147mm (4“ x 5.8“) |
3.5 "size CPU card. Industrial and reliable CPU card.
Can deliver with i5 or i7 CPU, contact our sales department regarding info.

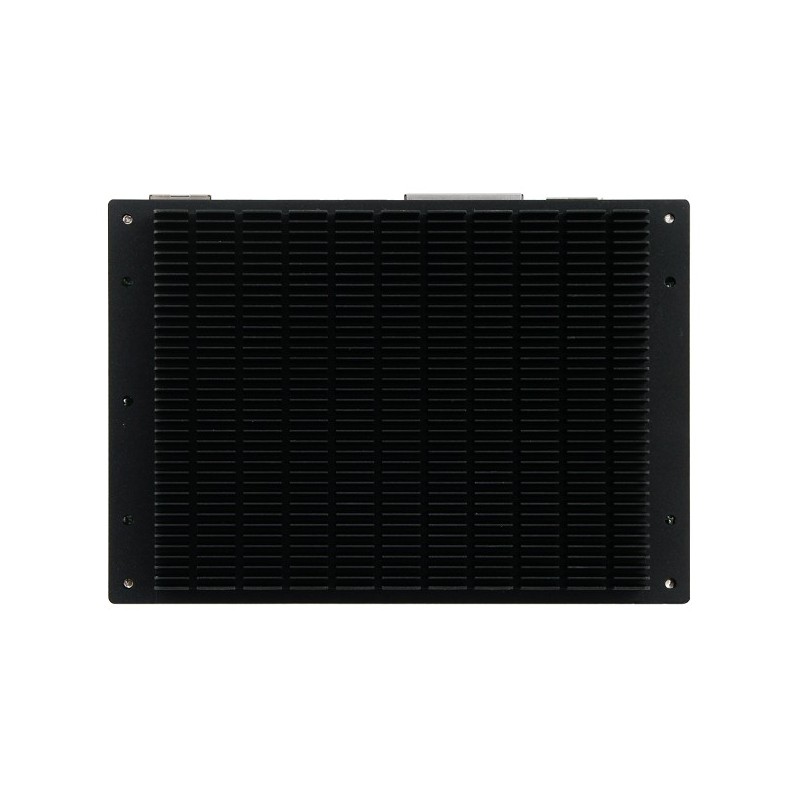

Can offer low proffile heatsink option.
