PCI Express SATA III 4-port expansions cards
4 Port SATA PCIE Cards for each port up to 500MB / S to 4 individual ports (no raid)
Processor. Marvell 88SE9215
SATA up to 6.0 GB / S
Non-Raid
Ethernet Adapter for USB3.1C
RJ45 female and USB 3.1C male Supports USB 3.0, 2.0, and 1.1
Full duplex 10/100 / 1000Mbit
Supplied via USB port
OS support WIN2000, XP, VISTA, 7, 8 , 10
10 cm cable

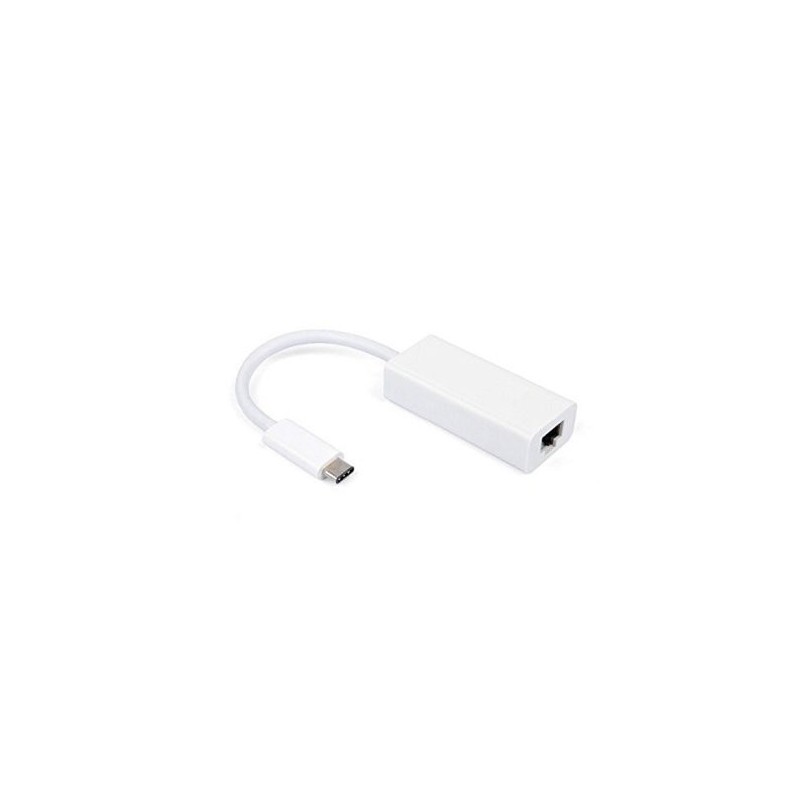

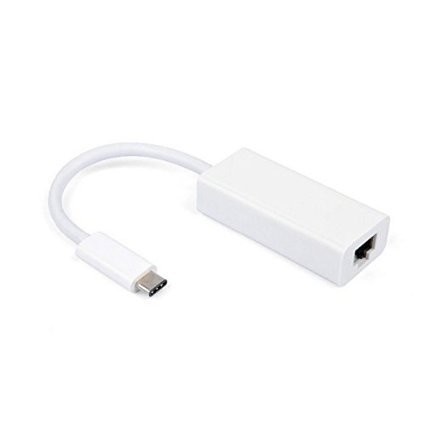

Type-2 USB-C to 1000Mbps Gigabit Converter
This USB 3.1 Type-C network adapter enables you to connects a USB Type-C device (computer/tablet) to a router, modem, or network switch to deliver super-speed 10/100/1000 Mbps gigabit ethernet over USB 3.0's 5Gbps bus, faster than most wireless connections.
This USB Type-C gigabit ethernet adapter is compatible with all existing 10/100/1000 networks,helpful for replacing a broken internal network card or add a separate routable network interface to your PC computer, laptop.
Built in RTL8153 chipset, is driver-free and supports plug and play.
Integrated fase ethernet MAC, phsical clip and transceiver in on chip
Integrated 10/100/1000M transceiver,Switch 10Mbps,100Mbps and 1000M network automatically
Auto-Negotiation with Next Page capability
Supports USB 3.0, 2.0, and 1.1
Supports Wake-on-LAN and ‘RealWoW!’ (Wake-on-LAN)Technology
Adapter can offload ARP (IPv4) and NS (IPv6) protocols while in the D3 power saving state.
Supports the ECMA (European Computer Manufacturers Association) proxy for sleeping
hosts standard.
Supports CDC-ECM, LPM,Crossover Detection Auto-Correction
Compliant with IEEE 802.3az-2010, also known as Energy Efficient Ethernet (EEE).
IEEE 802.3az-2010 operates with the IEEE 802.3 Media Access Control (MAC) Sublayer to support operation in Low Power Idle mode.
Supports full duplex flow control(IEEE 802.3x)
Compliant with IEEE 802.3 , IEEE 802.3u
Supports IEEE 802 IP Layer 2 priority encoding and IEEE 802.1Q Virtual
Used for Macbook, Chromebook, Windows 8.1, Earlier, Wii, Linux, and Specific Android Tablets etc.
Compatible with Windows / 2000 / 2003 / XP / Vista /win 7/ 8/8.1,Linux / WinCE (5.0 6.0) / ANDROID (2.1 2.2 2.3 4.0) / MAC OS10.6
No driver requested for Win 8 Mac OS X 10.9 or newer
For Windows 7 / Windows Vista/ Windows XP (32/64bit) ,OS X 10.5 OS 10.6 or below, you may need to download driver from Realtek website
4 Port SATA PCIE Cards for each port up to 500MB / S to 4 individual ports (no raid)
Processor. Marvell 88SE9215
SATA up to 6.0 GB / S
Non-Raid
Intel X550 chipset
PCIe v3.0 (8.0GT/S)
Automatically negotiation between 1GbE, 2.5GbE, 5GbE and 10GbE
2 x RJ45 ports
Standard Cat 6 network cables
RJ-45 Category-6 up to 55mm, Category-6A up to 100m
Support Windows 64 bit (7, 2008 R2, 8, 2012, 8.1, 2012 R2, 10, 2016
Linux(RHEL6.x/7.x, SUSE11.x/12.x, Ubuntu*14.x/16.X) FreeBSD
Chipset: Intel®I350AM4
PCI Express * 2.1 (5GT / s), operable in x4 slots or greater to 4 x RJ45, Cat 5e or more
10/100/1000 Mbps
VLAN filtering, PXE remote boot, IPMI pass-through
Os Support: Win 7 / Win 8 / Win 8.1 / Win 10 32/64Bit, Spain DOS, Linux, FreeBSD, Novell UnixWare / OpenUnix 8
Operating temperature: 0 ~ 55 ℃
Gigabit SFP USB 3.0 network adapter
SFP female and USB-A male
Powered by USB
OS Support: Windows XP / Vista / 7/8 / 8.1 / 10 32 / 64- Bit, Mac OS 10.6 ~ 10.13, Linux
