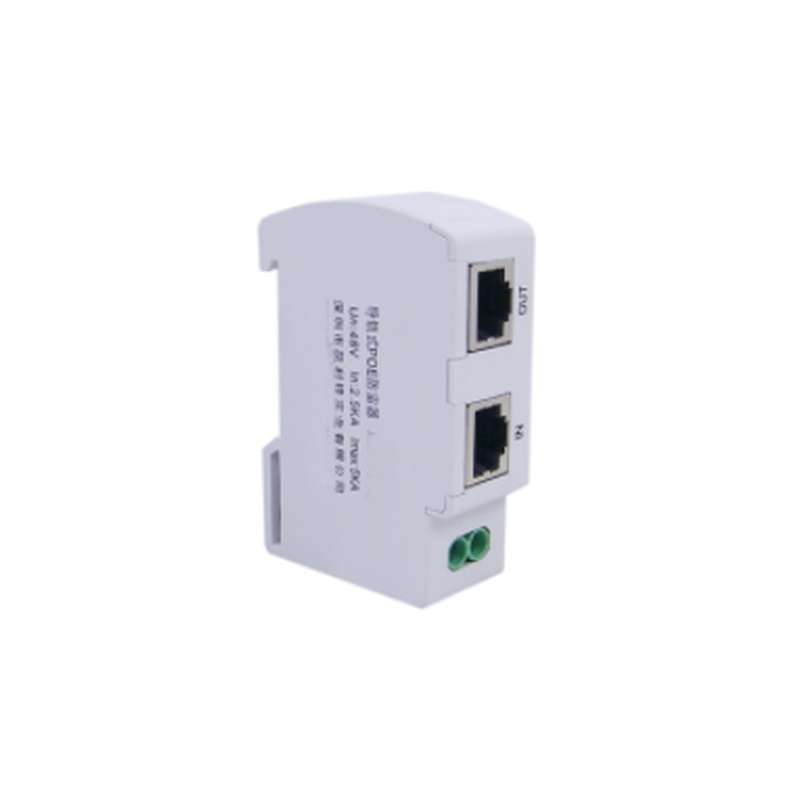

PoE surge protection for 10/100/1000Mbit networks
Supports PoE voltage 48VDC / 40Watt
Nominal discharge: 2.5kA, max. 5kA (8/20myS)
Response time: less than 1ns (nano-second)
Transmission loss: below 0.2dB
2 x RJ45 female (in / out)
Protected pin: 4/5, 7/8 (power supply + data), 1 - 8 (data)
Operating temperature: -40 - +70°C
Humidity: less than 90% rh
Dimensions: 93 x 55 x 35 mm
Weight: 73g
DIN bracket
Ground cable of more than 2.5kv must be shorter than 1 meter
Ground cable thickness: Min. 2.5 sq.mm
Ground resistance must be less than 4 ohms
Nothing can protect against a direct lightning strike
Prot-RJ45-POE-D is network lightning protections and contains the network data link and 2 overvoltage protection schemes for DC cables that will ensure that your system and equipment are protected from overvoltage damage caused by indirect lightning strikes or transients in connection with thunderstorms. Nothing can protect against a direct fulfillment.
This product is designed according to IEC 61000-4-5, IEEE 802.at standards. Has excellent performance and high power capacity that can effectively prevent equipment damage caused by immediate increase in the potential difference between the power supply, network and other equipment. Protection circuits at multiple levels, low residual stress and good protection power. Suitable for overvoltage protection of network databulin and power supply for Ethernet power supply line. Important for the transient protection works is the ground cable. It must be at least 2.5 square etc. and as short as possible - preferably below 1 meter. Soil resistance must be below 4 ohms.
Transient protection for 10/100Mbit networks. 4kV to earth.
Transmits PoE voltage.
2 x RJ45 female.
Ground wire must be connected.
Surge Protection to Gigabit network
Max. Working voltage on line: 48V
2KV Impulse protection (10/700 Micro sec)
Loss Factor: 0.2dB
Dim: 112 x 38 x 30 mm
Insulator for up to 80mbit network speed
1 Port
1 x RJ45 female
1 pc ½meter cable with RJ45 male
12kv isolation voltage.
Unable to transfer PoE
Surge Protection for 10/100 / 1000Mbit network
Review voltage: 5V / 300mA
review loss: Less than 0.2dB
2 x RJ45 female (in / out)
Protected Pin: 1 - 8 (data)
Threshold at 15V
Max Transient current: 5 - 15k Amp
Operating temperature: -40 - +70°C
Moisture: less than 90% RH
Size: 112 x 38 x 30 mm
Weight: 150g
Earth cable of more than 2.5kvmm must be shorter than 1 meter
Earth resistance must be less than 4 ohms
Nothing can protect against a direct lightning strike
