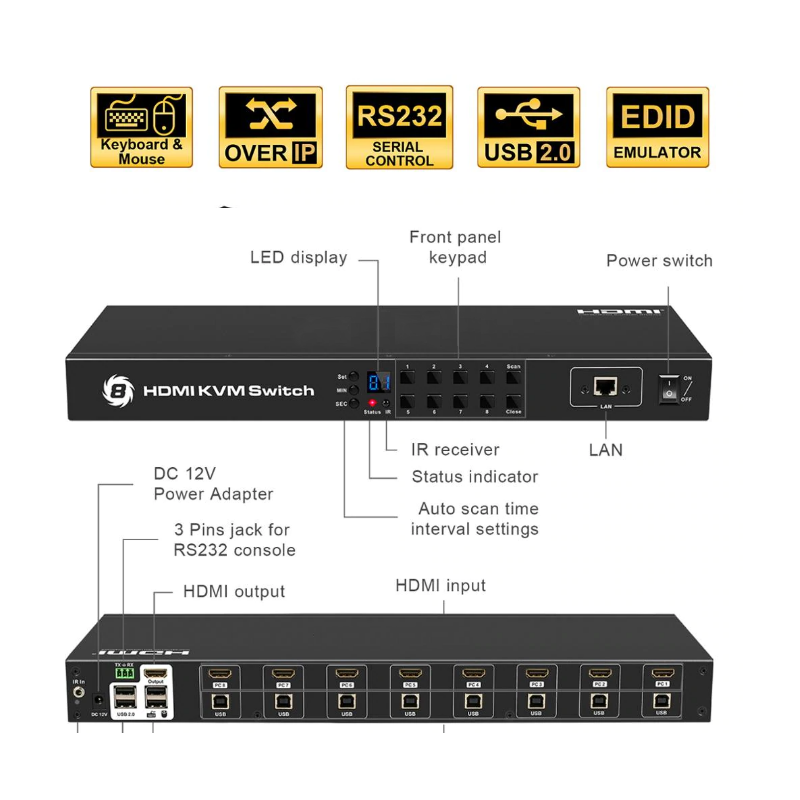

8 Ports KVM switch with HDMI and 8 x USB, 4K

HDMI 2.0, HDCP 1.4
Resolution: Up to 3840 x 2160 30Hz
USB 2.0 for mouse and keyboard
HDMI cable range: 15m max (solution: 1920 * 1080 60Hz); 5m max (resolution: 3840 * 2160 30Hz)
Can be controlled via TCP / IP or RS232
Edid Emulator
Fits 1U Rack

KVM8-HDMI4K+USB
3,725.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Using one USB console controls 8 HDMI computers.
Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for Raspberry Pi and other Linux based system
With EDID emulators in every input ports, keep PCs always have correct display information
Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices.
Support auto switching to monitor computers in a specified time interval
Support front panel buttons, IR signals, keyboard hot keys, RS232 serial commands or IP commands to control KVM switch.
Available to use keyboard without any delay after switch input sources.
Support resolution up to 3840*2160@30Hz
With extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM just as you have plug these devices directly to computer.
Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters.
It is perfect for standard 1U height and 19-inch Cabinet/Rack Design if you maybe use Cabinet/Rack
​With 2 Pcs Rack Ears perfect use for Standard 1U 19-inch Cabinet/Rack.

Forsyning
12VDC 2A
Montering
1U Rack or board mounting
Opløsning
up to 3840*2160@30Hz
Porte
8 x HDMI+USB to PC, 1 x HDMI + 4 x USB for remote control
