655mm(D) x 482.6mm(W) x 86mm(H); 25.8”(D) x 19” (W) x 3.38”(H)

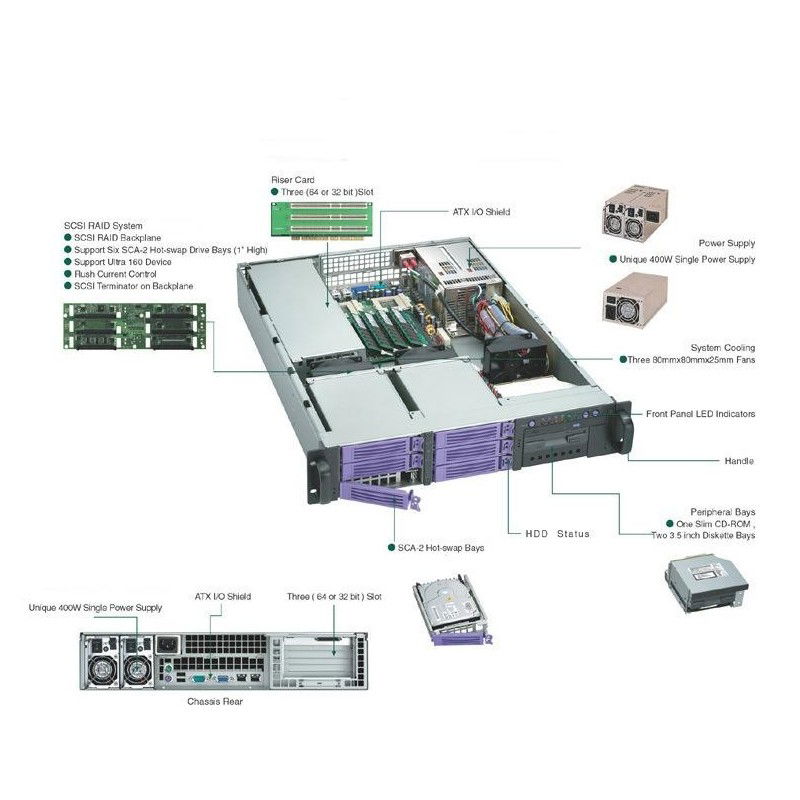

S-IND19RAID-SCSI2U
Dimensions: 655mm(D) x 482.6mm(W) x 86mm(H); 25.8”(D) x 19” (W) x 3.38”(H)
Server Board: Support ATX 12”x13” M/B
Peripheral Bays: One Slim CD-ROM / Two 3.5 inch Diskette Drive Bays
RAID Backplane Module:
Expansion slots: Three (64 or 32bit) PCI on Riser Card (Supported Full Length Expansion Card)
System Cooling: Three 80mmx80mmx25mm Fans for RAID and System
Thermal Solution: Completed Thermal Solution Up to Dual 1 GHZ Socket 370 CPU
Power Supply: One Unique 400W Single Power Supply
Front Panel LED Indicators:
Converter RS232 til RS422/485 med RJ11 stik
Fanless design ( Embedded heat pipes cooling solution )
12th/13th Gen CoreTM i9/i7/i5/i3 Processor (Alder Lake-S/Raptor Lake-S)
Up to 60W GPU MXM module expansion
802.3af (15.4W)/802.3at(25.5W) Gigabit PoE ports
DP x2 + HDMI x 1 and DVI x 1 (support 4 independent displays)
Power on/off delay control / configurable ignition power control
Supports TPM 2.0 and Time-Sensitive Networking (TSN)
Two-mPCIe for optional WiFi/3G/4G/GPS or I/O expansion supported
Front-accessible I/O
1 x M.2 B for storge or 5G / LTE +1 x M.2 E-Key for WiFi / BT
1 x M.2 M for NVMe SSD
285x230x 90mm (9.84” x11.50” x 3.54”),Fanless 285x230x110mm (9.84” x11.50” x 4.33”),w/ FAN
DC 9~36V input
CE, FCC Class A, E mark
I.T.E Power Supply with UK Plug
Input: AC 100-240V 50 / 60Hz, 0.55A
Output DC 12V, 2A
Intel® 13th/12th-Gen Core™ 35W/ 65W LGA1700 CPU
SODIMM MAX. 32GB DDR4 3200
2x 2.5GbE
4x USB3.2 Gen 1 with screw-lock
1x M.2 2280
Gen4 x4 NVMe
1x 3.5"/2.5" SATA HDD/SSD storage
4-CH isolated DI and 4-CH isolated DO
TPM 2.0
VGA + DP dual display outputs
-25°C to 60°C fanless operation (Need special RAM and SSD)
Compact 212 x 165 x 80 mm
Can be wall and DIN mounted needs to be ordered special
1x3-PIN terminal 8~35Vdc remote ON/OFF
