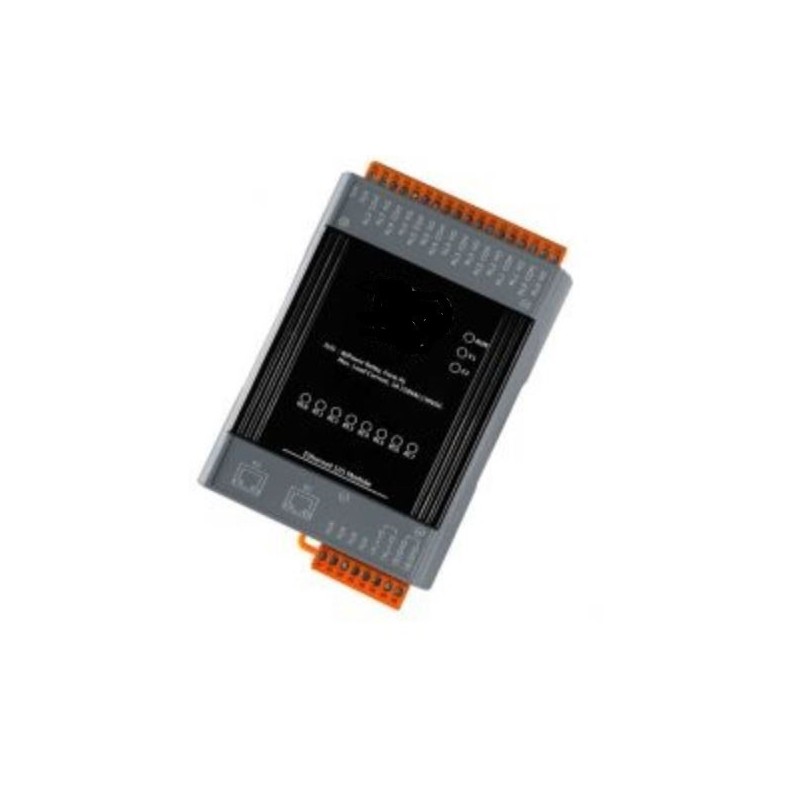

8 x Power Relay COM NO, 24VDC / 250VAC 5A, 2 x RJ45 Ethernet Modbus/TCP/UDP, 12 - 48VDC

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols

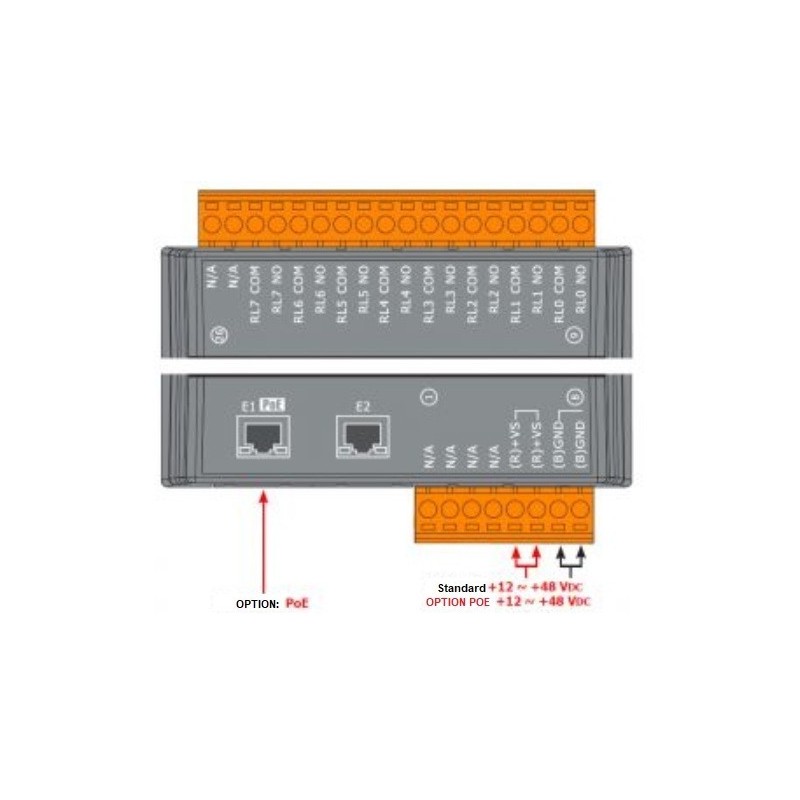

2 x RJ45 Ethernet - Daisy chain
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair-link - input is mirrored to the other's output
8 x Relay power - electromechanical, COM NO
Relæskiftetid: on: 10ms, off: 5ms
Relay contact voltage and current: 24VDC / 250VAC / 5A
Electromechanical: Avoid inductive load
Supply voltage: 12 - 48VDC

ETHIO8R-I
2,408.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

ETHIO8R I gives 8 paragraph form-A electromechanical relays COM N.O. It has optical isolation to 3000 VDC of the transient over-voltage protection and has no channel-to-channel isolation. Ignition value and ensure value for the relay are programmable. It can be safely used in applications where hazardous voltages.

Driftstemperatur
-25°C - 75°C
Luftfugtighed
10 ~ 90% RH, non-condensing
Strømforbrug
12 ~ 48 VDC
