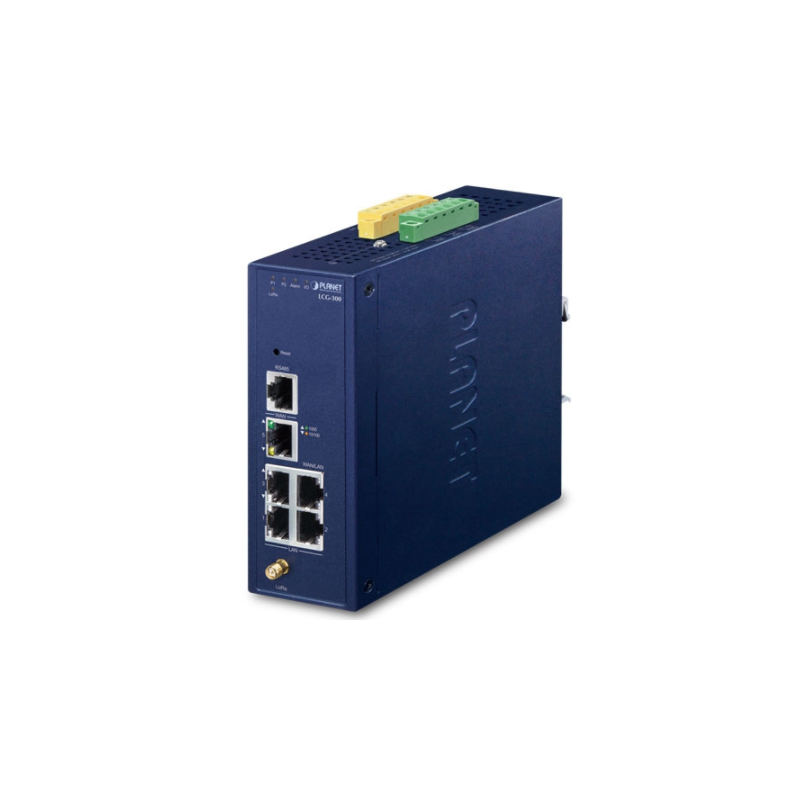

Lora Industrial Transceiver (Gateway) with 1 x WAN, 4 x LAN RJ45 ports, external antenna. Range up to 10 km. -40 - +75°C

LoRaWan with stable connection to IoT units
4 x 10/100 / 1000Base-T RJ45 LAN ports
1 x 10/100 / 1000Base-T RJ45 WAN port
1 x LoRa antenna - 2DBI with SMA male
1 x Serial console Port (RS485)
2 x DI / DO and 1 serial port (RS485) for Modbus applications
For EU 868MHz (SUB 1G) Frequency
8 Programmable parallel demodulation paths
static IP / PPPoE / DHCP client for WAN
DHCP server / NTP client for LAN
Protocols: TCP / IP, UDP, ARP, IPv4, IPv6
port forwarding; Qos; DMZ; IGMP; UPnP; SNMPv1, V2C, V3
Dim: 135 x 135 x 50 mm

9,261.00 kr
Excl. VAT
Quantity
On the way in
ADD TO CART
Product number LORA-GATEWAY5
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

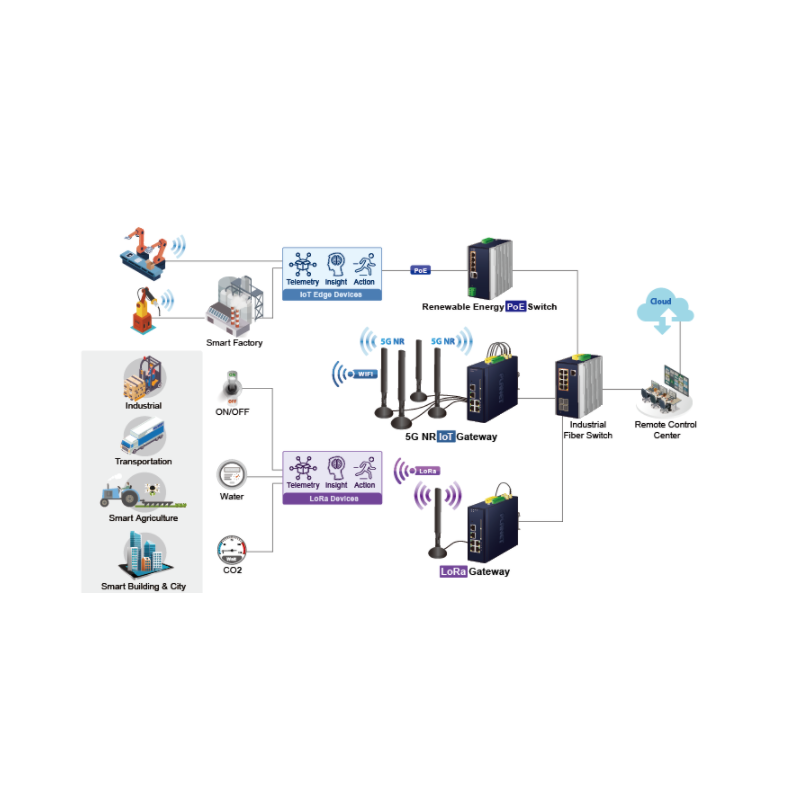

LoRaWan is a low-effect, wide area networking protocol built on the Lora radio modulation technique. Lorawan networks and units such as sensor and gateway allow public or private networks to connect multiple applications such as IOT, M2M, Smart City, sensor network and industrial automation applications in the same room. If Lorawan compatible and make sure it works well with the Lora sensor without any problems.

LoRaWan gateway in industrial quality with reliable connection to IOT implementations. With Lorawan protocol support, it helps to connect Lora wireless network to an IP network. The wireless Lora enables sensors to transmit data over extremely long range with low power consumption. Fully compatible with the Lorawan protocol and supports connection with up to 300 external wireless devices. It also provides preconfigured standard Lorawan frequency bands for different countries. Is the best choice to help you promote the implementation of AIoT network.

24VDC Power Supply [For DIN Mounting] 400mA, SWM
24VDC 400mA (9.6 Watt) power supply from 230VAC, DIN rail, 0-40°C, SWM

REMAINDER SALE


Switch Mode power supply for DIN rail mounting

230V to 24VDC 400mA

Good high-frequency noise filters

Screw terminal

Operating temperature: 0° – 40°C

For indoor use only.

388.00 kr
Item Number: DC24V400MA-D
Physically in stock
ADD TO CART
Quick view
12VDC/1.25A, 15W power supply for DIN rail mounting
12VDC 1.25A (15W) power supply. Fine adjustment of voltage. 100 - 240VAC, DIN rail

12 Volt 15 W power supply

DIN rail mounting

Screw terminals

Fine adjustment of output voltage

Working temperature: -30 - +70°C

Dimensions: 90 x 55 x 18 mm

Call +45 56 66 20 20 for price
Item Number: DC12V1.25A-D
On the way in
ADD TO CART
Quick view
48VDC 1.25A (60Watt) Power supply from 85 - 264VAC, DIN rail
48VDC 1.25A (60Watt) Power supply from 85 - 264VAC, DIN rail. Output voltage 48-57VDC.

AC / DC power supply for your rail mounting
AC Input: 180 - 500VAC
Effect: 60W
Output voltage: 48V / 1.25A
Screw terminal
Adjustable output voltage for 48 to 57VDC
Working temperature: -30 - + 85 ° C
target: 125 x 102 x 32 mm (H, D, B)

Call +45 56 66 20 20 for price
Item Number: DC48V/1.25A-D
On the way in
ADD TO CART
Quick view
Outdoor industrial LoRa Node controls used for data collection from multiple sensors
LoRa outdoor node controller for sensors. Analog - / digital input / output. Serial Port RS232 or. RS485. Up to 10 km

LoRaWan transceiver with 2 x digital inputs
LoRaWan transceiver with 2 x analog inputs 4-20mA / 0-10V
LoRaWan transceiver with relay output (SPDT)
Supports LoRa Class C protocol
Serial port: RS232 or RS485 (Transparent data)
Collect data sent to Lora-Gateway Controller
Frequency: 868MHz - Range Up to 10 km
Configuration Port: Micro USB
Operating temperature: -40 - +70°C
Supply voltage: 5 - 24VDC
Dim: 120 x 120 x 56 mm

3,174.00 kr
Item Number: LORA-NODE-W-CNTR
On the way in
ADD TO CART
Quick view
Previous
Next

Other products in same category:

Outdoor industrial LoRa Node controls used for data collection from multiple sensors
LoRa outdoor node controller for sensors. Analog - / digital input / output. Serial Port RS232 or. RS485. Up to 10 km

LoRaWan transceiver with 2 x digital inputs
LoRaWan transceiver with 2 x analog inputs 4-20mA / 0-10V
LoRaWan transceiver with relay output (SPDT)
Supports LoRa Class C protocol
Serial port: RS232 or RS485 (Transparent data)
Collect data sent to Lora-Gateway Controller
Frequency: 868MHz - Range Up to 10 km
Configuration Port: Micro USB
Operating temperature: -40 - +70°C
Supply voltage: 5 - 24VDC
Dim: 120 x 120 x 56 mm

3,174.00 kr
Item Number: LORA-NODE-W-CNTR
On the way in
ADD TO CART
Quick view
Indoor industrial LoRa Node controls used for data collection from multiple sensors
Lora Indoor Node Controller for sensors. Digital input / output. Serial Port RS232 electricity. RS485. 2dBi antenna. Up to 10 km

LoRaWan transceiver with digital inputs
LoRaWan transceiver with relay output (SPDT)
Supporter LoRa Class C Protocol
Serial Port: RS232 or RS485 (Transparent data)
Collects data to be transmitted to LoRa-Gateway Controller
Frequency: 868MHz - Range Up to 10 km
1 x Antenna 2dBi - SMA male connector
Configuration Port: Micro USB
Operating temperature: -40 - +70°C
Supply voltage: 5 - 24VDC
Dim: 79 x 60 x 24 mm

2,131.00 kr
Item Number: LORA-NODE-I-CNTR
On the way in
ADD TO CART
Quick view
LoRaWan gateway in industrial quality with to IoT units. Dual band wifi. Built in 5 Ports Switch
LoRa Industrial Transceiver (Gateway) with WiFi, 1 x WAN, 3 x LAN RJ45 ports, external antenna. Up to 10 km. -40 - +75°C

LoRaWan with stable connection to IoT units
Dual Band WiFi - 2 antennas with RSMA male
3 x 10/100/1000Base-T RJ45 LAN ports
1 x 10/100/1000Base-T RJ45 Wan-Port
1 x LoRa Antenne - 2DBI with SMA male
2 x DI / DO and 1 serial port (RS485) for Modbus applications
to EU 868MHz (SUB 1G) Frequency
8 Programmable Parallel Demodulation Roads
Static IP / PPPoE / DHCP Client for WAN
DHCP Server / NTP Client for LAN
Protocols: TCP / IP, UDP, ARP, IPv4, IPv6
port forwarding; Qos; DMZ; IGMP; UPnP; SNMPv1, V2C, V3
Dim: 135 x 135 x 50 mm

10,174.00 kr
Item Number: LORA-GATEWAY5-WIFI
On the way in
ADD TO CART
Quick view

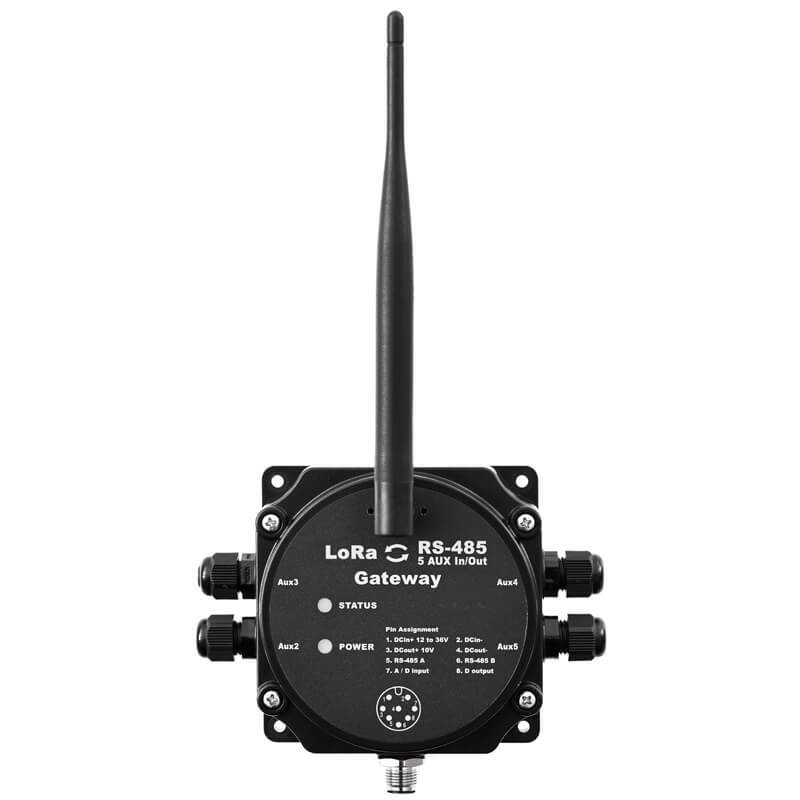

LORA Gateway, RS485, Modbus, 5 analog i/O , 5 digital I/O Relay
LoRa Wireless Gateway, RS485, Modbus, 5 Digital Input, 5 Digital output

Outdoor gateway

Protocol LoRa (not LoRaWAN)

Frequency range 410–525 MHz / 862–1020 MHz (depending on local regulation)

Sensitivity Up to –136 dBm @ SF=7 / 10.4 kHz bandwidth

RF power Max. 2 W

Interface RS-485 × 1 / Analogue or Digital Input × 5 / Digital Output × 5

Serial Baud Rate 1200–230 400 bps

Encryption AES-128 / AES-256

Analog Input 0–10 V / 0–20 mA / 4–20 mA / ADC (0–10 V)

Digital Input High/Low signal rating

Digital Output PWM / Latch mode

Topology types Broadcast / Group / Peer-to-Peer

lestariautomation.com

Material Flame retardant

Dimensions 10 × 10 × 4.8 cm (without antenna and external connections)

Weight 250g

IP rating IP68

Operating temperature –40°C to 85°C

Input supply 12–36 V DC / 1 A

Output supply Main port: 10 V DC / 100 mA; AUX2–AUX5: 10 V DC / 50 mA

Power consumption Receiving: 24 V 15 mA @868/920 MHz, Sending: 24 V 400 mA @868/920 MHz (2 W)

With set of 2 transparent RS485 transmission (NOTE not for Digital I/O and Analog I/O)

Call +45 56 66 20 20 for price
Item Number: LORA-RS485-DIO
On the way in
ADD TO CART
Quick view
Wireless Transmission for RS232/RS485 up to 20km via LORA network
LoRa Wireless Bridge 433MHz, RS232/RS485 transparent transmission, set of 2 devices

LoRa Wireless Transmission with RS232 & RS485

Baud rate: 1200~115200

DB9 for RS232 / screw terminal for RS485

5W Power Output for strong signal

Frequency Range: 433MHz

Long-range up to 20km MAX connectivity

Three-proof Coating: Anti-Fungal, Anti-Humidity, Anti-Salt Spray

Weight: 240±5g

Operation temperature range: -40℃～+85℃

Power input: 8~ 28V DC

Transparent RS232/RS485 Interface

2,660.00 kr
Item Number: LORA-RS485-RS232
On the way in
ADD TO CART
Quick view
