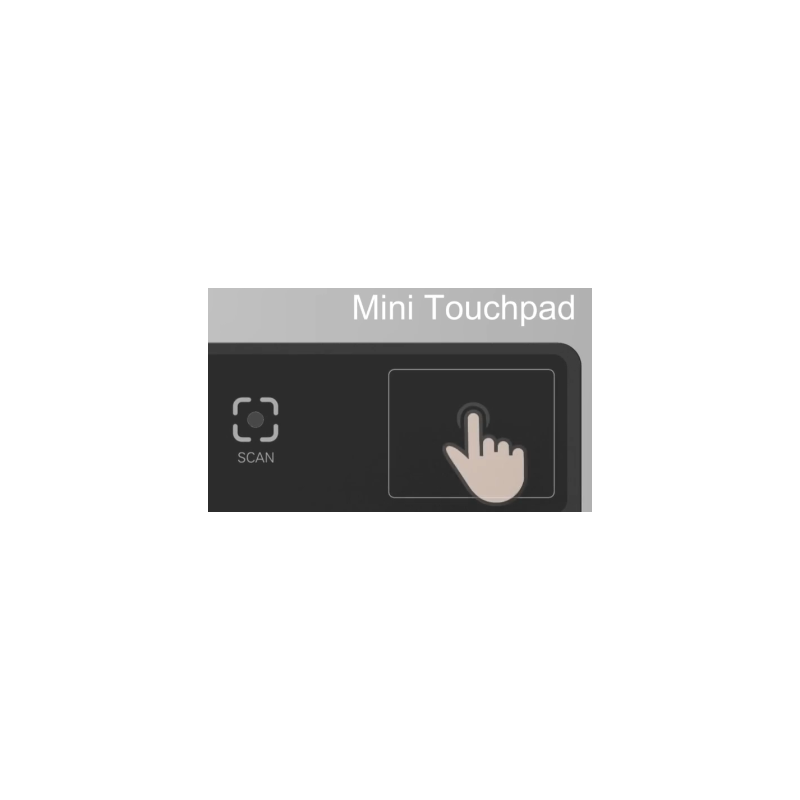

IP65 Waterproof Industrial Keyboard with 8MP UVC Camera & Mini Touch Pad

A compact IP65 waterproof industrial keyboard featuring an integrated 8MP UVC camera and mini touch pad for space-efficient operation in clean and demanding environments.

Built for industrial, medical, and laboratory applications, it provides a washable and dustproof design that ensures reliability and hygiene.

The 8MP autofocus UVC camera delivers sharp imaging for QR code scanning, AI recognition, SSO login, and identity verification, making it ideal for secure workstation applications.

An optional RFID module supports multi-factor authentication, extending its usability in controlled-access systems.

The keyboard also features a backlit, low-profile design, Clean Mode Hotkey, and VESA mount compatibility, allowing integration into medical carts, kiosks, and embedded systems.

Compliant with EN 60601-1-2:2015 + A1:2021, it meets medical safety and EMC standards.

Protection Level: IP65 waterproof

Material: ABS/PC + silicone rubber

Keys: 81 scissor-switch type

Key Travel: 1.6 ± 0.3 mm

Key Force: 100 gf

Key Lifetime: >8 million presses per key

Backlight: Adjustable LED

Cable: Type-C to A screw-lock cable, 180 cm

Interface: USB 2.0 or above

Dimensions: 294 × 160 × 14.85 mm

UVC Camera Specifications

Camera Module: 8MP USB2.0

Image Sensor: 1/3.2" inch IMX179 CMOS

Max Resolution: 3264 × 2448

Pixel Size: 1.481 μm

Field of View: 75°

Lens: EFL 3.69mm, F/NO 2.2, SP ±650nm

Focus Mode: Autofocus

Shutter Mode: Electronic Rolling Shutter

Scanning Speed: 0.1s

Output: USB 2.0

Supported OS: Windows, Android, Linux, Mac OS

Adjustable Parameters: Brightness, contrast, hue, saturation, exposure, gain, and white balance
