DVI / USB / Audio / Serial KVM Fiber Extender (Up to 1000 m @ 1080p / 2000 m @ 1080i)

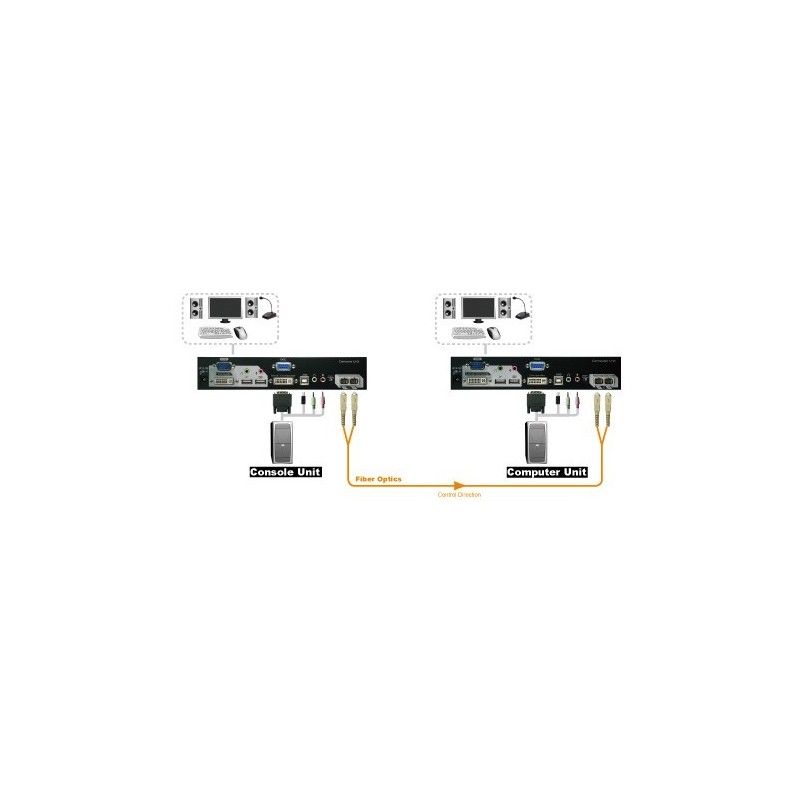

High-performance fiber KVM extender designed for long-range remote access and control. It transmits DVI video, USB HID (keyboard & mouse), two-way audio (speaker/mic), and RS-232 serial signals over duplex multimode SC fiber.

• For 1080p full HD video, the maximum extension is 1000 meters.
• For interlaced 1080i video, the extender can reach 2000 meters.
• The unit supports HDCP 1.4 compliance for protected content.
• It offers different control modes: Remote, Local, and Auto Sensing for console access.
• Dual console or cascading is supported so multiple users or further KVM switches can be integrated.
• It includes hotkey masking, EDID copy/emulation, LED indicators, and push-button control.

This extender is ideal for control rooms, broadcast environments, labs, or any setup where the source and operator need to be separated by significant distance without signal loss or latency issues.

Feature Highlights

• Supports DVI video with HDCP 1.4
• Extends up to 1000 m at 1080p or 2000 m at 1080i over multimode fiber
• USB HID (keyboard & mouse), two-way audio, RS-232 serial extension
• Modes: Remote, Local, Auto Sensing
• Dual console / cascade support and hotkey masking
• EDID copy/emulation, LED status indicators, push-button control
