15.6" 12th gen notebook, Intel® Alder Lake processor i5, TPM 2.0, RS232, 2xRJ45, 3xUSB 3.0, IP65 800Nits

15.6” FHD Panel resolution with PCAP touch, 1920x1080

800 Nits, Optical Bonding for sunlight Viewability

12th generation Intel® Processor Family – Alder Lake Processor i5, (on request i7,i9)

CPU: Intel Core i5-1235U (up to 4.4GHz)

Max. 64GB RAM

256GB M.2 NVMe SSD, (on request 512GB, 1TB, 2TB) 2nd storage available on request

4x USB 3.0, 1 x USB 3.0 (Type C with ALT, PD function), 3 x USB 3.0 (Type A)

1 x DB9 (RS232 / RS422 / RS485, software switchable)

2 x RJ45-10/100/1000 GigaLAN port

Dual battery with hot-swappable design for whole-day-work

Anti-glare technology for sunlight readability

Magnesium alloy enclosure with double injection for drop protection

IP65 waterproof and dustproof

TPM 2.0

Smart Card reader, 1 x Nano SIM card slot, 1 x Micro SDXC Slot

Wlan. BT

HF RFID reader 13.56MHz (on request).

Fingerprint Scanner (on request)

working temperature: -20°C to 60°C

387.6x256x38.8mm, 4.8Kg

19VDC, 2x 11.55v typ. 3220 mAh Lion Battery (3s1P)

This is a general product description. Specifications may vary between models. Please contact us for pricing and details on customized configurations tailored to your specific requirements.

Call +45 56 66 20 20 for price
Quantity
On the way in
Product number NOTE-INDUSTRI15GEN12
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU I5
USB 4 x USB3.0
Serial 1
Operating Temp. -20°C to 60°C
Batteri Hot­swappable 2 x 11.55V typ. 3220 mAh Li­Ion Battery (3S1P)
Approval CE, FCC
Betragtningsvinkel 85,85,85,85
bluetooth 1
Ethernet 2
Forsyning 19V DC, 100-240V, 50-60Hz, 230W / 20V DC
Kamera 2MP front camera
Kontrast 800:1
Lyd 1 x minijack
M.2 256GB
Mål og vægt 387.6 x 256 x 38.8 mm
OS SUPPORT Windows 11 IoT Enterprise LTSC (64 bit) Windows 10 IoT Enterprise LTSC (64 bit) (Optional)
RFID 13.56 MHz
SIM kort 1 x Nano SIM card slot
Smartcard læser 1
Touch Projected Capacitive Multi Touch
Nits 800.0 nits
RAM 16GB
Display 15.6 inches
GPU 1

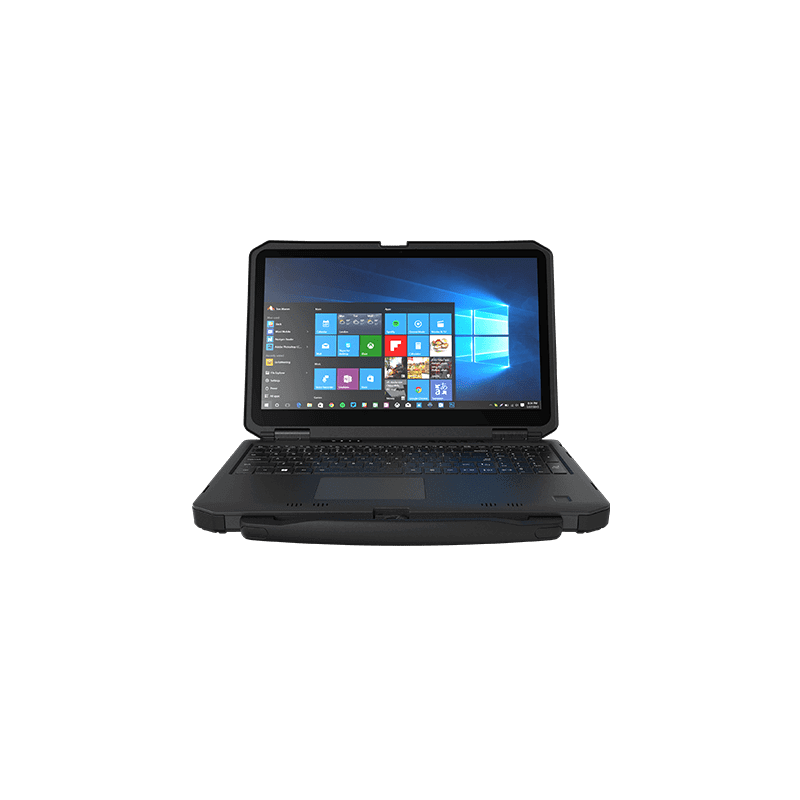

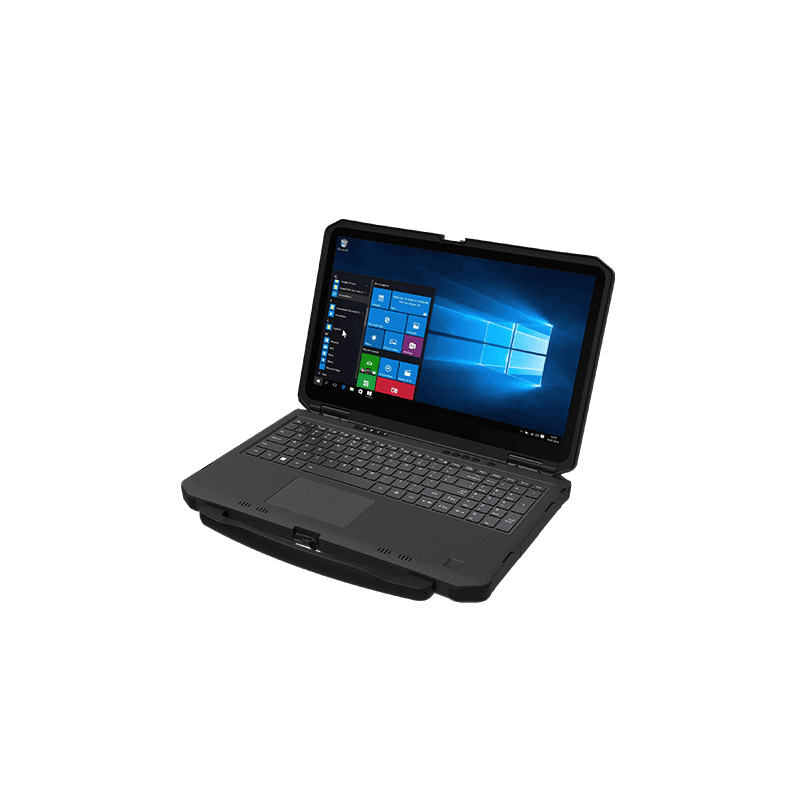

15.6″ Ultra Rugged Laptop

Rugged laptop for demanding environments. Tested to MIL-STD-810H and IP65 , option for MIL-STD-461G , CE/FCC.

  • Intel® Core™ i5/i7/i9 (12th Gen)
  • Option NVIDIA T1000/A2000 or Intel Arc GPU
  • 15.6″ FHD touch (800 nits) – option 4K UHD 3840x2160 400 nits
  • Up to 64GB DDR5 RAM, 2TB NVMe SSD
  • Dual hot-swappable batteries (~22 h operating time)
  • Wi-Fi, BT, optional 4G/5G, GNSS
  • USB-C, 3×USB-A, dual LAN, serial, HDMI (option), micro-SD, SIM
  • Option: Fingerprint, RFID, Smart Card, TPM 2.0

Suitable for: Defense, logistics, industry, offshore, transportation, rescue services and other mission-critical applications.


15.6″ Rugged Laptop for Industrial, Defense and Mission-Critical Applications

This ultra-rugged laptop is designed to deliver high performance in even the most demanding environments. It is IP65 certified, MIL-STD-810H tested and optionally available with MIL-STD-461G , making it resistant to shock, vibration, water, dust and electromagnetic interference.

With the latest Intel® Core™ i5/i7/i9 processors (12th Gen) and optional dedicated graphics (NVIDIA T1000/A2000 or Intel Arc), it acts as a mobile workstation for field work, AI applications, and industrial computing.

The bright 15.6″ FHD touchscreen (800 nits, sunlight-readable) ensures optimal viewing in all environments – with the option of a 4K UHD panel . Dual hot-swappable batteries provide up to 22 hours of operation , so work can continue without interruption.

Connections & options:

  • Wi-Fi, Bluetooth, optional 4G/5G, GNSS
  • USB-C, 3×USB-A, dual LAN, serial port, HDMI (option), micro-SD, SIM
  • Option: Smart Card, RFID, fingerprint reader, TPM 2.0

This rugged laptop is designed for defense, logistics, offshore, emergency response, transportation and industry , where reliability and robustness are essential.
