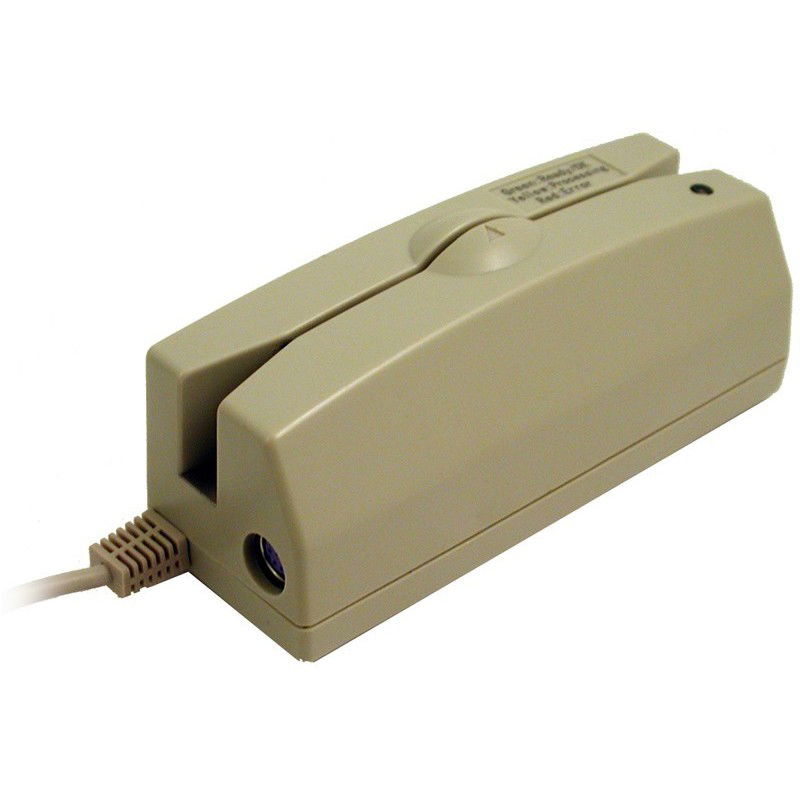

Card readers 3 tracks to RS232

reads ISO tracks 1, 2 and 3

RS232 interface

MCR123SO
904.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Connects to the RS232 (serial port).

Software is required to read data from the device.

This function can be tested with a terminal program, f .g. Hyper Terminal. The unit is energized with an adapter to be connected to PS / 2 keyboard port (normal temperature. Keyboard can be connected at the same time).

Serial speed of 57.6 kbps, 8 data bits, 1 stop bit and no parity bit.

Dimensioner
50 x 49 x 137 mm
Indikatorer og kontakter
Orange lys indikerer godkendt læsning
Læser
Spor: 1, 2 & 3
Opsætning
Dipswitch
