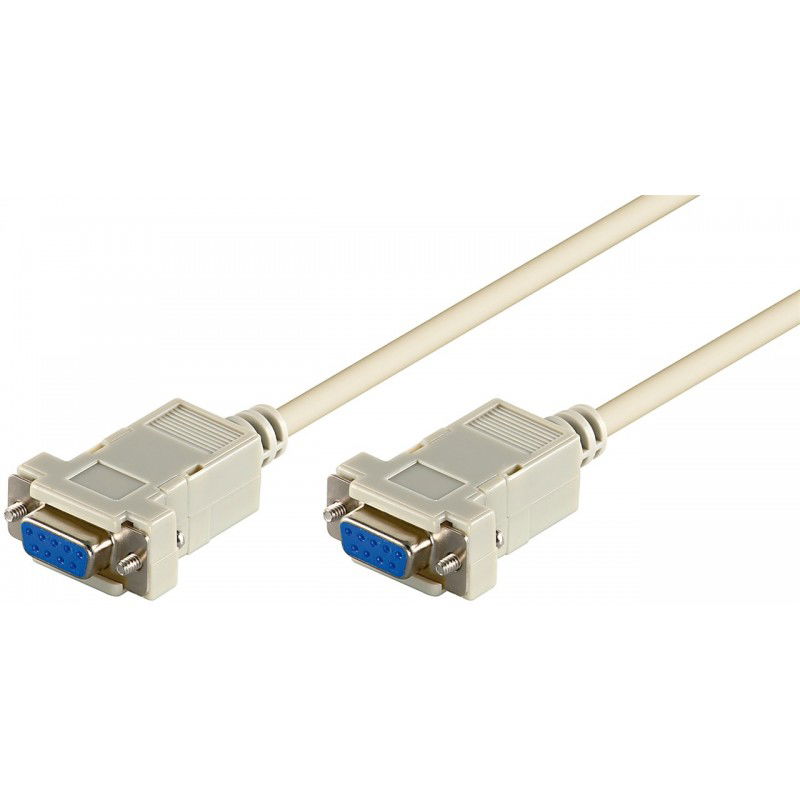

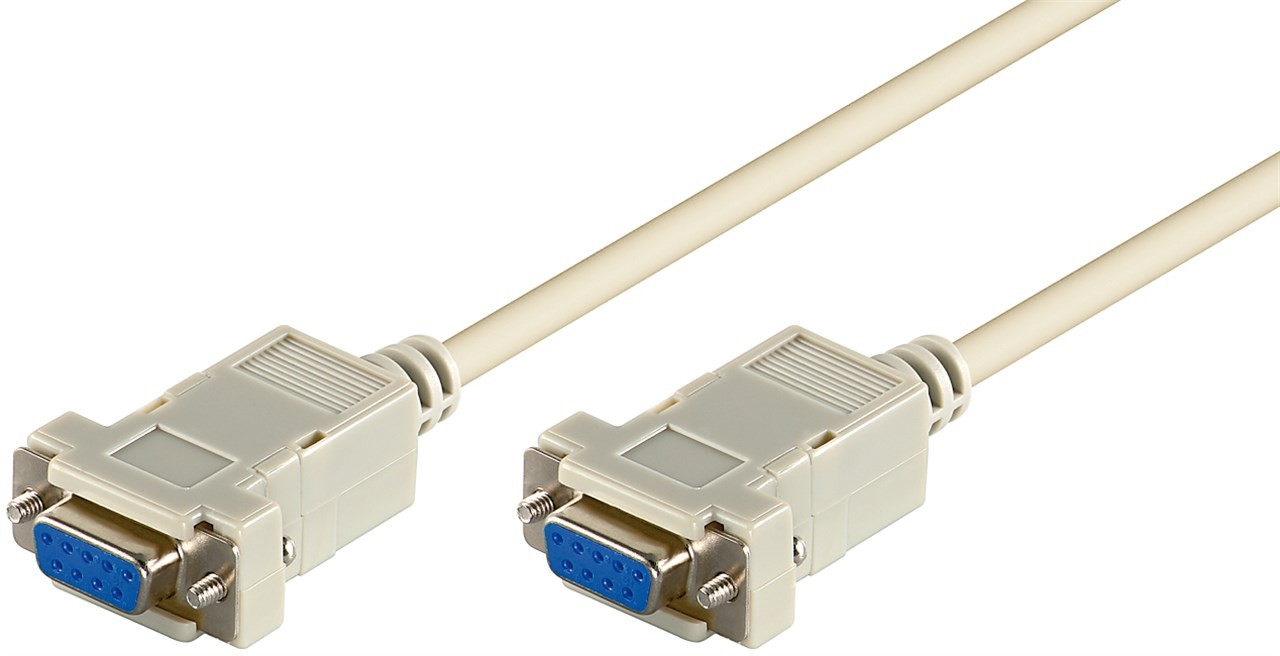

Zero modem cable with 2 x DB9 female, 28 AWG

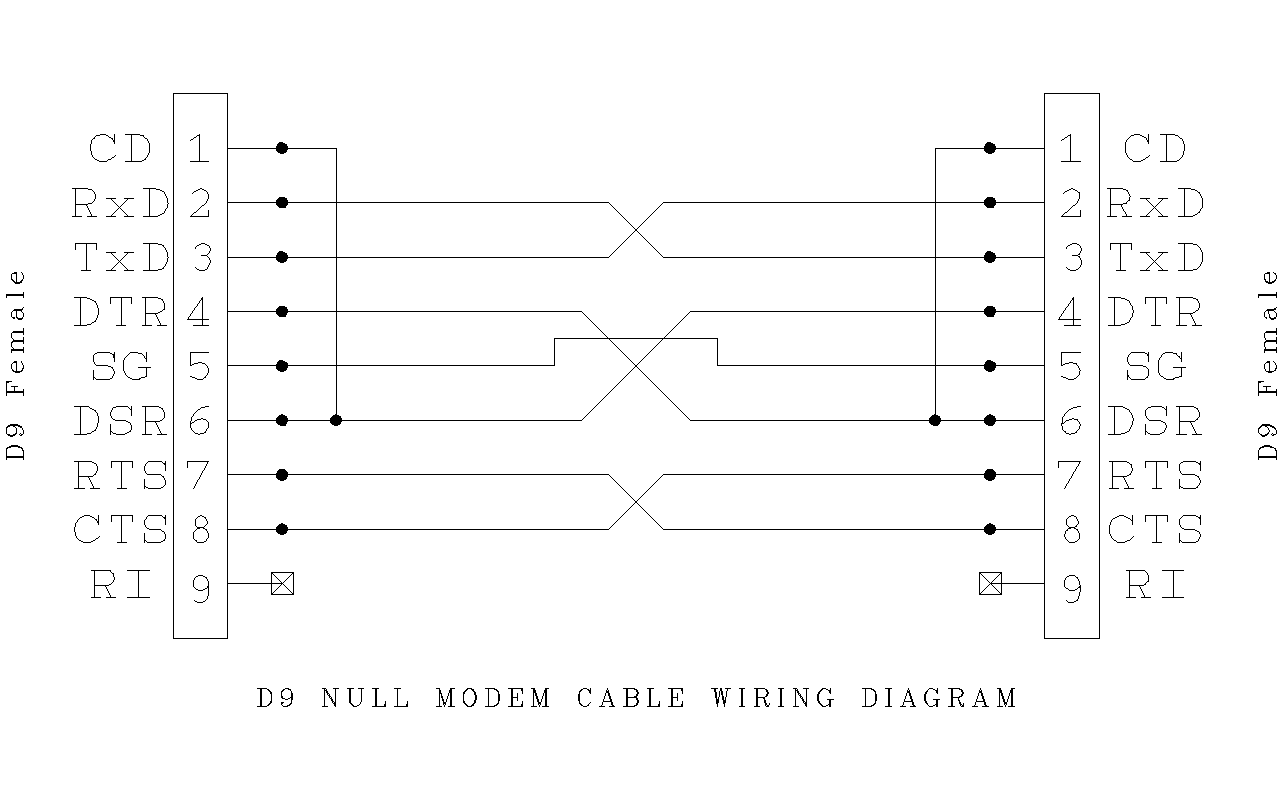

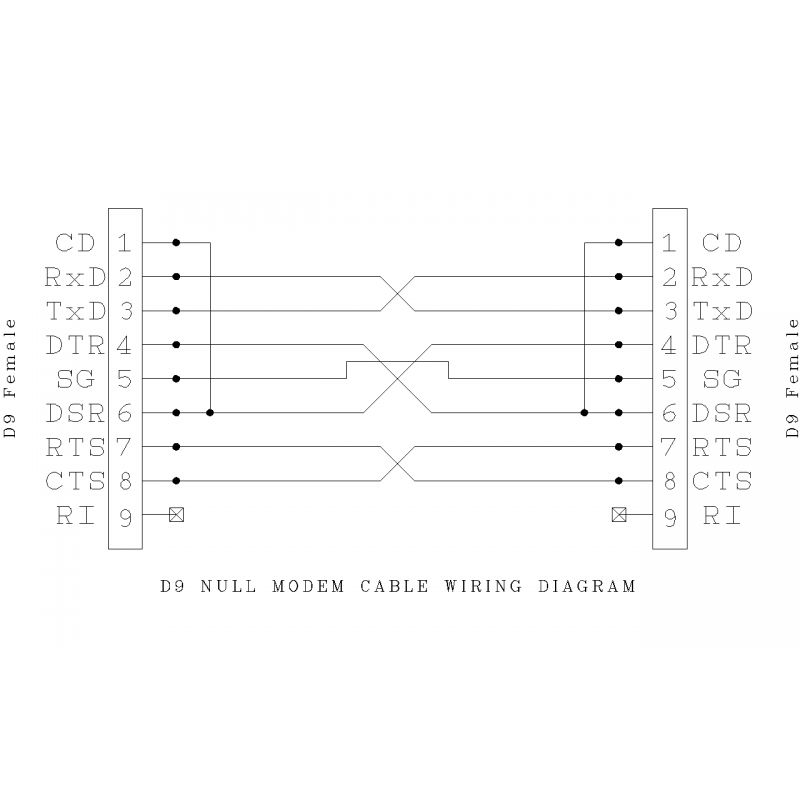

pinout:DB9F - DB9F; 6+1 - 4; 2 - 3; 3 - 2; 4 - 6+1;5 - 5; 7 - 8; 8 - 7
Zero modem cable with 2 x DB9 female, 28 AWG
Zero modem cable with DB9 male / female, 20 cm
Pin 2 to pin 3
Pin 3 to pin 2
Pin 5 to pin 5
Cable screen connected to DB9 male plug
Cable display is not connected to the DB9 female connector
The connectors are with finger screws
Null modem adapter
1 x DB9 female and 1 x DB9 female connector
Operating Temperature -55 ° C to + 105 ° C
With Fixed Screws
Nullmodem cable with 2 x DB9 male, 28 AWG 2.0 m
